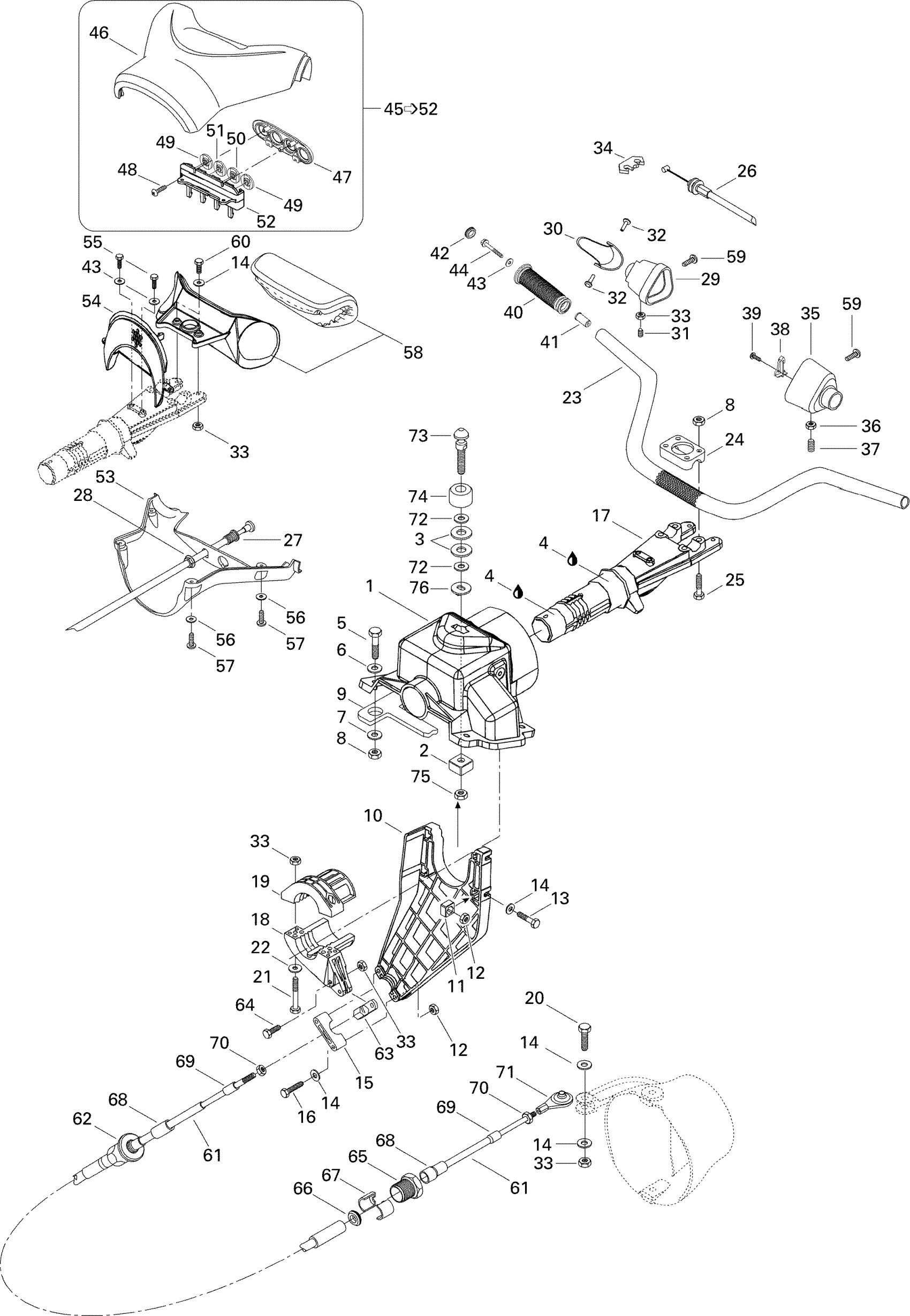

Sea-doo GTX, 5640, 1996 07- Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

3

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Hex. Screw M8 X 35

207083560

$1.47

6

Stainless, Flat Washer 8 mm

234081600

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Elastic Nut M8

232581600

$1.48

9

GASKET - Call your local BRP dealership

293250171

Unavailable

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

12

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

13

Hex. Forming Screw M6 X 20

207162060

$1.29

14

Stainless Flat Washer M6

234061600

$0.33

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

16

Hex. Screw M6 X 50

207065060

$2.22

17

Steering Stem

277000562400

Unavailable

18

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

19

Arm Thrust | Includes 43 to 44

277000519

Unavailable

20

Hex. Screw M6 X 40

207064060

$1.69

21

Hex. Screw M6 X 25

207162560

$1.47

22

Flat Washer M6, Stainless

234062600

$0.77

23

Handle bar

277000305

Unavailable

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

26

Throttle Cable

277000595

Unavailable

27

Choke Cable(Incl. 57)

270000236

Unavailable

28

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

29

Throttle Handle Housing

277000285

Unavailable

30

Throttle Handle

277000214

Unavailable

31

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

35

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 35 - 38.

277000036

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

$1.15

37

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

38

Retainer Plate

277000219

Unavailable

39

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

40

Handle Grip Kit (Black) This part replaces 295500112.

295500110

$41.49

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Black, Cap

277000203

$9.39

43

Flat Washer M6, Stainless

234062600

$0.77

44

PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership | (7448 Up to S/N v000708)

243164560

Unavailable

45

Steering Cover Ass'y (Green) | Includes 45 to 52

277000524

Unavailable

46

Upper Steering Cover (Green)

277000603

Unavailable

47

Retainer Plate

277000651

Unavailable

48

Screw K40 X 10

241140060

$1.48

49

Knob

293000057

Unavailable

50

<> Knob

293000058

Unavailable

51

<> Knob

293000054

Unavailable

52

Switch Support | LE

277000563

Unavailable

53

Lower Steering Cover (Green)

277000550

Unavailable

54

PLATE - Call your local BRP dealership

277000549

Unavailable

55

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

56

Flat Washer M5, Stainless

234051600

$0.77

57

Hex. Flange Screw K40 X 16

241141660

$1.48

58

Pad-Handle (Green)

277000560

Unavailable

59

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

60

Hex. Screw M6 X 30

207063060

$1.89

61

STEERING CABLE - Call your local BRP dealership | Includes 1 - 5.

277000526

Unavailable

62

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

63

Rotule

277000174

Unavailable

64

Hex. Screw M6 X 30

211000081

$3.59

65

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

66

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

67

Half Ring

277000055

$9.49

68

Boot, Large

277000473

Unavailable

69

Boot, Small

277000466

Unavailable

70

Hex. Nut

212100005

$1.35

71

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

72

Flat Washer 10 mm, Stainless

234002600

$2.22

73

Stud Latch

291000987

Unavailable

74

Rubber Pad

293830025

Unavailable

75

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

76

Nylon Insert

293450152

Unavailable
