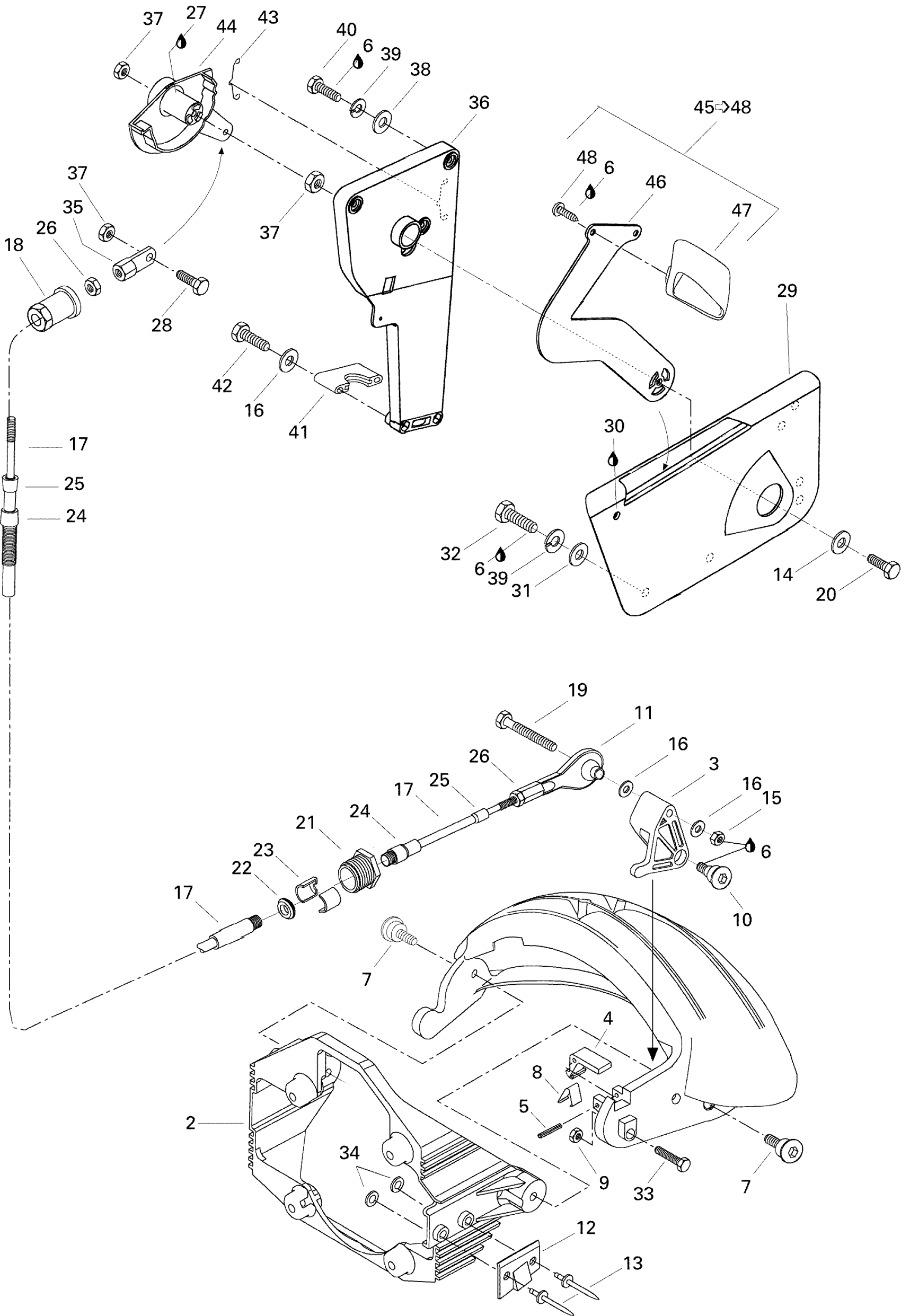

Sea-doo GTX, 5640, 1996 05- Reverse Diagram

#

Description
Price

1

Gate - Reverse | GTI 5641.

271000673

Unavailable

2

Gate Support

271000626

Unavailable

3

CABLE LEVER - Call your local BRP dealership

271000583

Unavailable

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.68

6

Loctite 243, 10 ml

293800060

$21.49

7

Screw

211000007

Unavailable

8

Spring

271000431

$15.49

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

Unavailable

11

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

12

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

13

Pop Rivet 3/16"

293150043

$2.09

14

Stainless Flat Washer M6

234061600

$0.33

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Stainless Flat Washer M6

234061600

$0.33

17

REVERSE CABLE ASS'Y (INCL. IT. 24, 25, 2 - Call your local BRP dealership | Includes 17 - 18.

277000552

Unavailable

18

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

19

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

20

Hex. Screw M6 X 16

207161660

$1.59

21

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

22

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

23

Half Ring

277000055

$9.49

24

Boot, Large

277000473

Unavailable

25

Boot, Small

277000466

Unavailable

26

Hex. Nut

212100005

$1.35

27

Synthetic Grease, 400 G

293550010

Unavailable

28

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

29

Housing Reverse Handle

271000587

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

32

Screw Hex. M5 x 12

216051260

Unavailable

33

Hex. Forming Screw M6 X 20

207162060

$1.29

34

Flat Washer | XT

211200035

$0.55

35

Rotule

277000174

Unavailable

36

Reverse Cable Support | Includes 38 - 39.

271000584

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Flat Washer 5 mm, Stainless

234052600

$0.77

39

Helical Lock Washer M5

234151601

$1.15

40

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

41

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

42

Hex. Screw M6 X 50

207065060

$2.22

43

SPRING - Call your local BRP dealership

271000612

Unavailable

44

LEVER INTERIOR - Call your local BRP dealership | Includes 48 - 49.

271000585

Unavailable

45

Handle Reverse Ass'y | Includes 29 - 32.

271000586

Unavailable

46

Lever

271000613

Unavailable

47

Reverse Handle

271000614

Unavailable

48

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable
