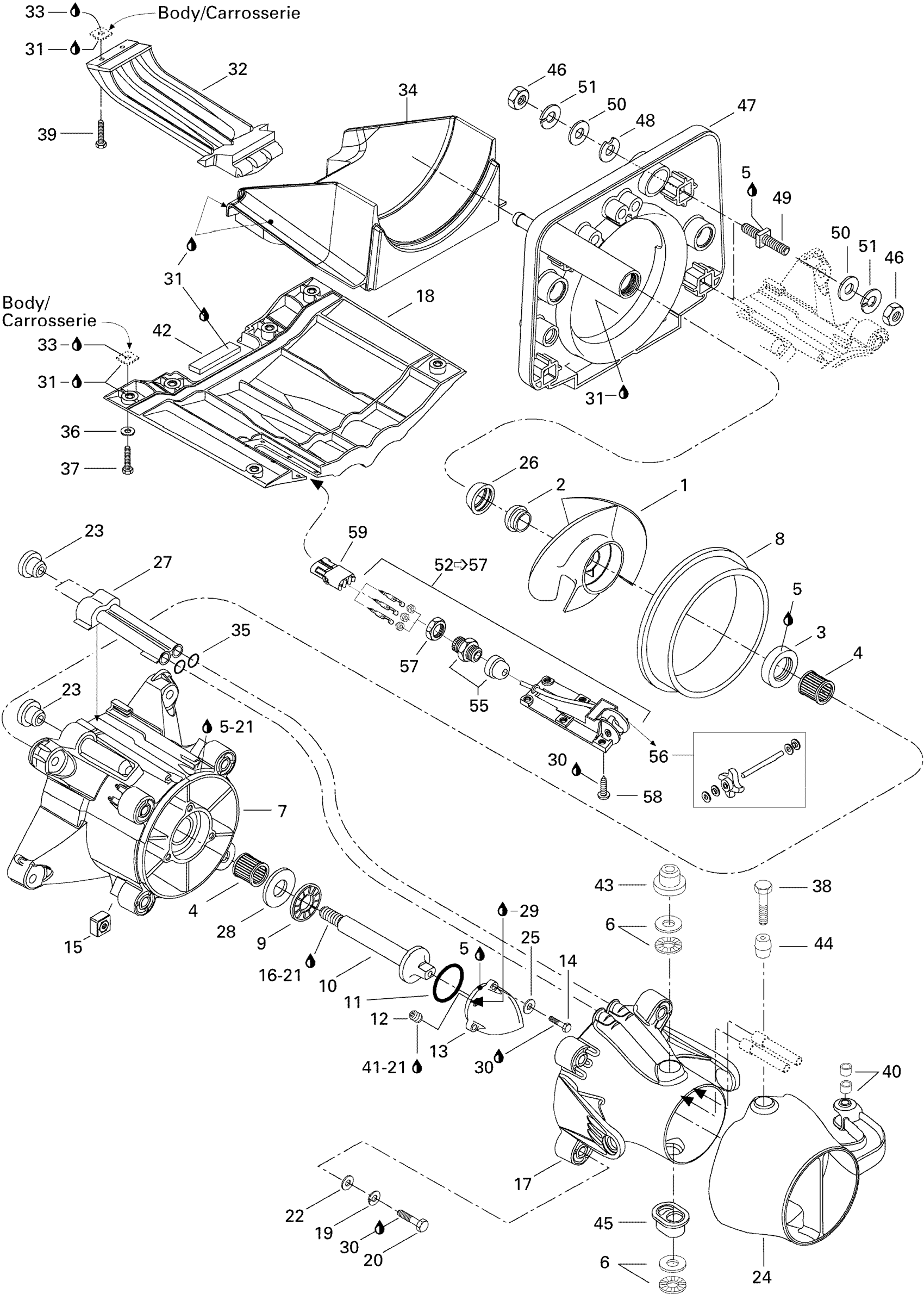

Sea-doo GTX, 5640, 1996 Propulsion Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000660

$391.99

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Thrust Washer

211200002

Unavailable

7

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 3,4,8

295500391

Unavailable

8

Wear Ring

271000290

$58.49

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000463

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi Ass'y

271000623

Unavailable

18

Riding Plate (Black)

271000641

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

SCREW-HEX.CAP DIN.931A2 - Call your local BRP dealership

215688060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer M8.5 x 18

293050001

$3.07

23

O-RING - Call your local BRP dealership

293300040

Unavailable

24

Steering Nozzle Ass'y | Includes 24 - 26.

271000634

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.77

26

Impeller Ring

271000517

$9.59

27

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

28

Thrust Washer

293350003

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Inlet Grate

271000573

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

Shoe

271000576

Unavailable

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

38

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

39

Hex. Forming Screw M6 X 20

207162060

$1.29

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Neoprene Seal (1PAC=3M)

219704364

$27.49

43

Venturi Bushing

293900001

$7.62

44

Sleeve

271001816

$14.99

45

Plastic Bushing

293900010

$9.59

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support

271000575

Unavailable

48

Shim 0.3 mm

272000053

$11.49

49

Square Stud

250300022

$20.99

50

Flat Washer 10 mm, Stainless

234001600

$1.15

51

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Male Terminal | XT Models

278000222

$3.19

54

Wire Seal

278000218

$4.39

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

58

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

59

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85
