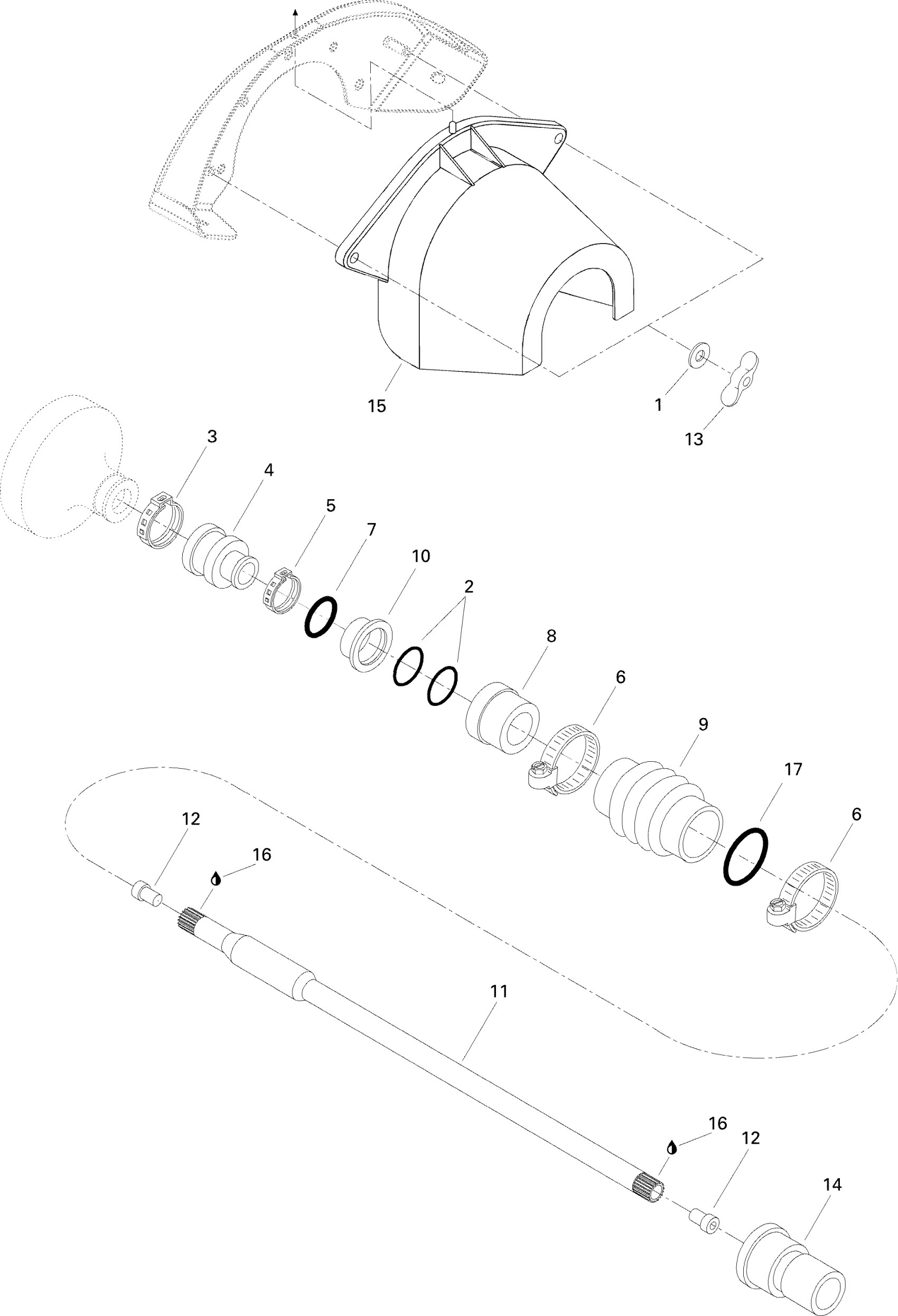

Sea-doo GTX, 5640, 1996 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$2.43

2

O-Ring

293300032

$6.03

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

CAILLAU CLICK CLAMP - Call your local BRP dealership

293650055

Unavailable

6

Tridon Clamp

293650035

$7.29

7

O-Ring

293300036

$11.60

8

Carbon Ring

272000770

$45.99

9

BELLOWS - Call your local BRP dealership

272000184

$27.99

10

Support Ring

272000064

$66.49

11

Drive Shaft

272000077

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Gasket

293250017

Unavailable
