03- Magneto And Oil Pump

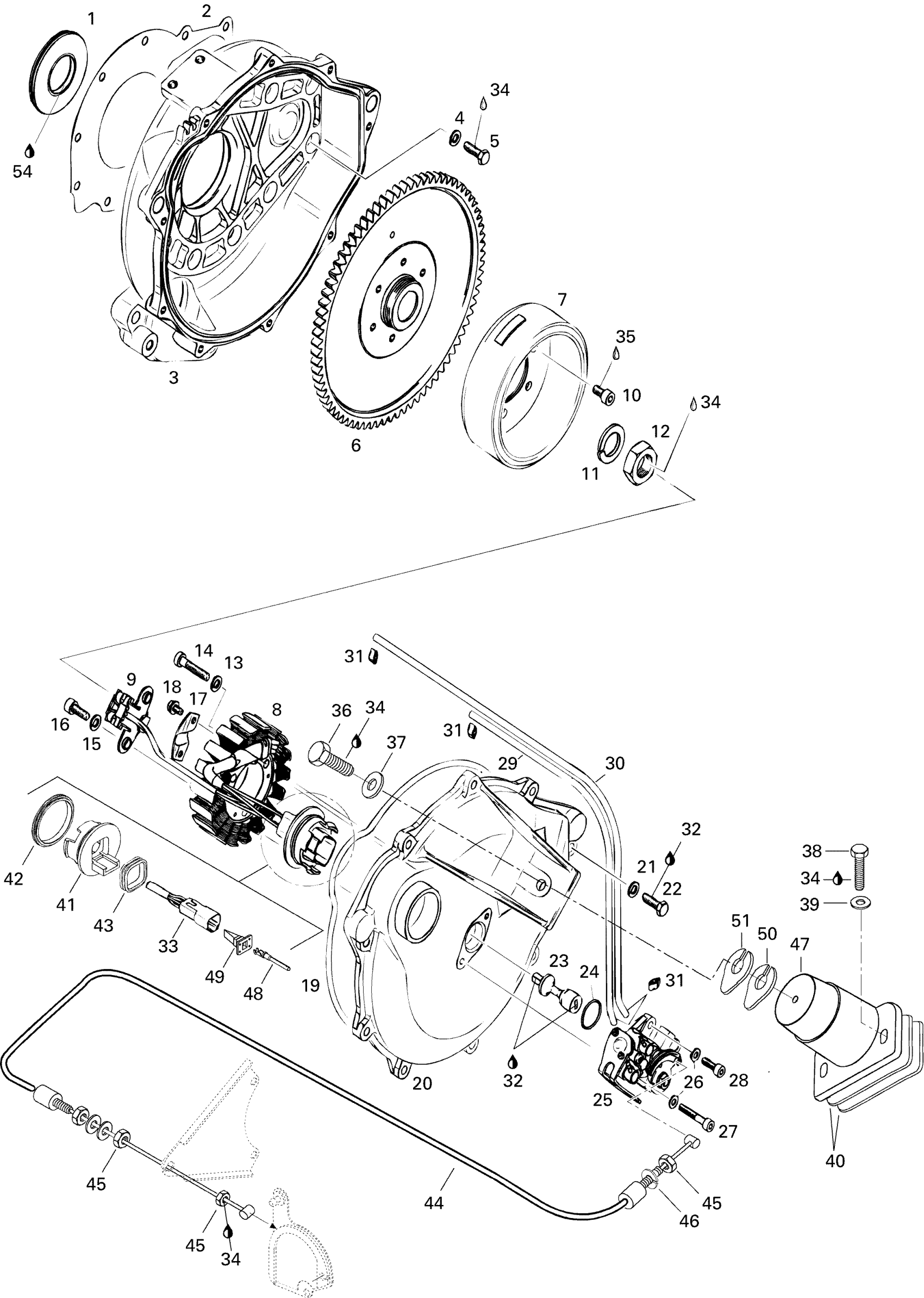

Sea-doo GTX, 5640, 1996 03- Magneto And Oil Pump Diagram
#
1
Oil Seal This part replaces 290830749.
420830749
$18.54
2
Gasket
290931470
Unavailable
3
Ignition Housing (White)
290810711
Unavailable
4
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
5
Hex. Screw M6 X 25
207162544
$1.15
6
Flywheel Hub
290966442
Unavailable
7
MAGNETO FLYWHEEL - Call your local BRP dealership
290886598
Unavailable
8
STATOR PLATE ASS'Y - Call your local BRP dealership
290886588
Unavailable
9
Sensor Ass'y
420966832
$184.99
10
Socket Head Screw M6 X 12
205061260
$1.58
11
Lock Washer 18 mm
290945757
Unavailable
12
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
13
Lock Washer
290445330
Unavailable
14
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
16
Socket Head Screw M6 x 16
420241237
$2.22
17
Retainer Plate
290853080
Unavailable
18
Hex. Screw M5 x 8
215050848
Unavailable
19
O-RING - Call your local BRP dealership This part replaces 290950360.
420950360
Unavailable
20
Ignition Cover
290810721
Unavailable
21
Lock Washer 6 mm
290845381
Unavailable
22
Hex. Screw M6 x 25
290240038
Unavailable
23
Shaft Oil Pump
290837330
Unavailable
24
O-RING - Call your local BRP dealership
293300018
Unavailable
25
PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887333.
420887333
$234.99
26
Lock Washer
290845389
Unavailable
27
Socket Head Screw M5 x 30
290940883
Unavailable
28
Cylindrical Slotted Screw M5 x 16
215951660
Unavailable
29
Oil Hose 1500Mm Long
219704404
$17.26
30
Oil Hose 1500Mm Long
219704404
$17.26
31
Clamp
290256408
Unavailable
32
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
33
Male Terminal Housing, 6 Circuits
710001539
$19.99
34
Loctite 243, 10 ml
293800060
$21.49
35
Sealant Loctite 648
219703000
$45.99
36
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
37
Flat Washer 8 mm, Stainless
234082600
$2.43
38
Hex. Screw M8 X 30
207183060
$1.58
39
Stainless, Flat Washer 8 mm
234081600
$0.55
40
Shim 0.3 mm
270000122
Unavailable
40
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
41
Adaptor
270000138
Unavailable
42
Gasket
293300033
Unavailable
43
Gasket
293200030
Unavailable
44
Injection Cable Ass'y
270000214
Unavailable
45
Hex. Nut M6
232160600
$1.15
46
Lock Washer Helical M6
234161601
$1.15
47
Rubber Mount
270000222
Unavailable
48
Male Terminal
278000631
$4.39
49
Female Wedge, 4 Circuits
278000636
$4.39
50
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
51
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
52
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886395
Unavailable
53
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886390
Unavailable
54
Dow Corning 111, 150 g
413707000
$59.99
