Description

Price

1

Oil Tank

275000238

$98.99

2

Oil Tank Cap

275000199

Unavailable

3

O-RING - Call your local BRP dealership

293250025

Unavailable

4

Filler Neck | GTI 5641.

275000064

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

Oil Level Sensor

278000478

Unavailable

8

Wire Seal

278000218

$4.39

9

Male Terminal | XT Models

278000222

$3.19

10

Female Housing, 2 Circuits

278000217

$9.59

11

Filler Hose

275000185

Unavailable

12

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

13

Was 275500008 Hose 12 mm

219704356

$20.49

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Tridon Clamp

293650035

$7.29

17

Tridon Gear Clamp

293650170

$1.99

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Check Valve This part replaces 275500087.

275501246

$10.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$3.09

23

Grommet

293720008

$14.75

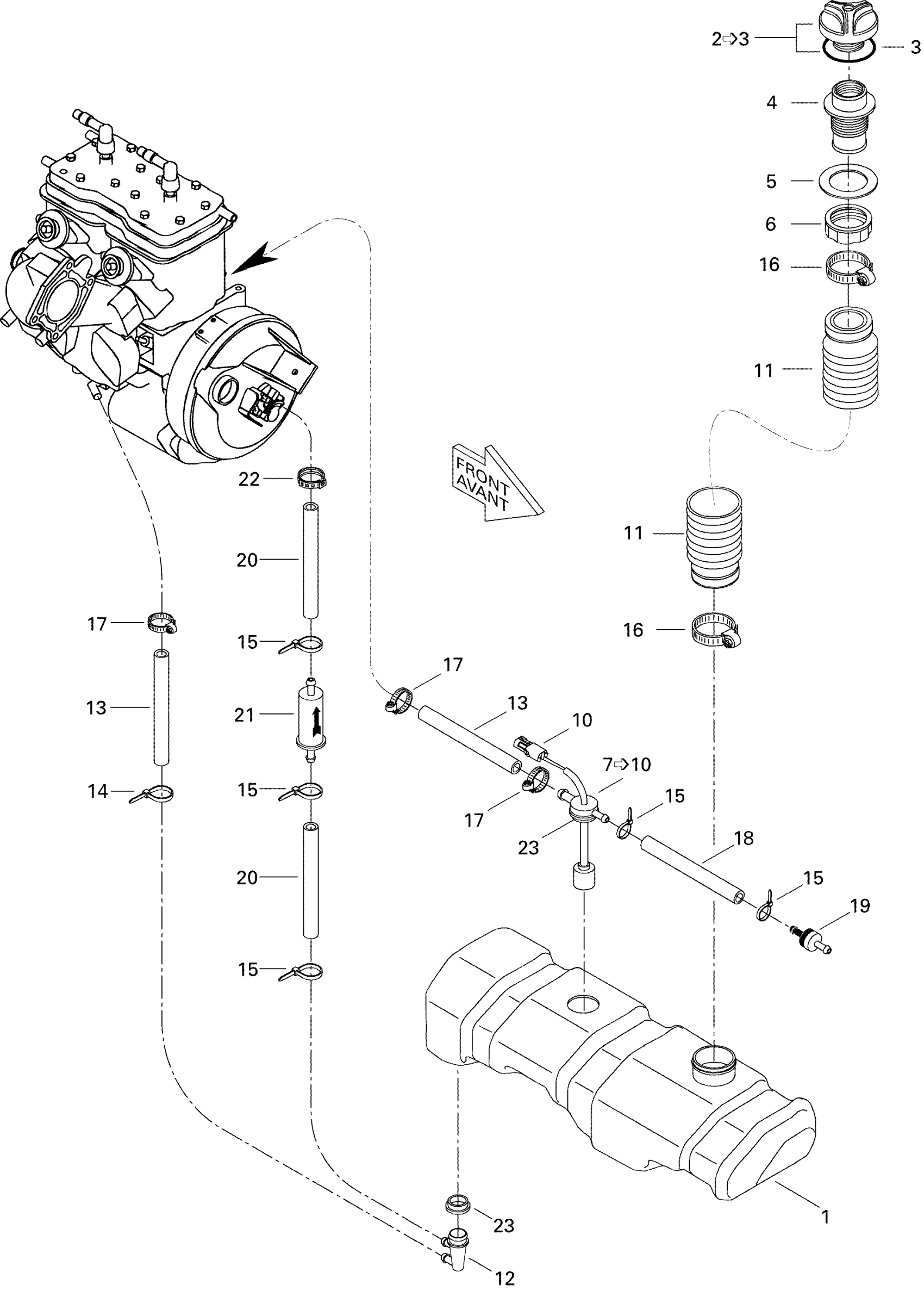

Sea-doo GTX, 5640, 1996 02- Oil Injection System Diagram

Oil Tank

Oil Tank Cap

O-RING - Call your local BRP dealership

Filler Neck | GTI 5641.

Gasket

Nut-Neck Oil Filler

Oil Level Sensor

Wire Seal

Male Terminal | XT Models

Female Housing, 2 Circuits

Filler Hose

FITTING ELBOW 90 - Call your local BRP dealership

Was 275500008 Hose 12 mm

Tie-Rap 180 mm

Tie Wrap 94 mm | 4X4

Tridon Clamp

Tridon Gear Clamp

Was 415110000 Polyurethane Hose 5.2 mm

Check Valve This part replaces 275500087.

Polyurethane Hose, 8 Mm 3000Mm Long

OIL FILTER - Call your local BRP dealership

Oetiker Clamp

Grommet
