01- Exhaust System

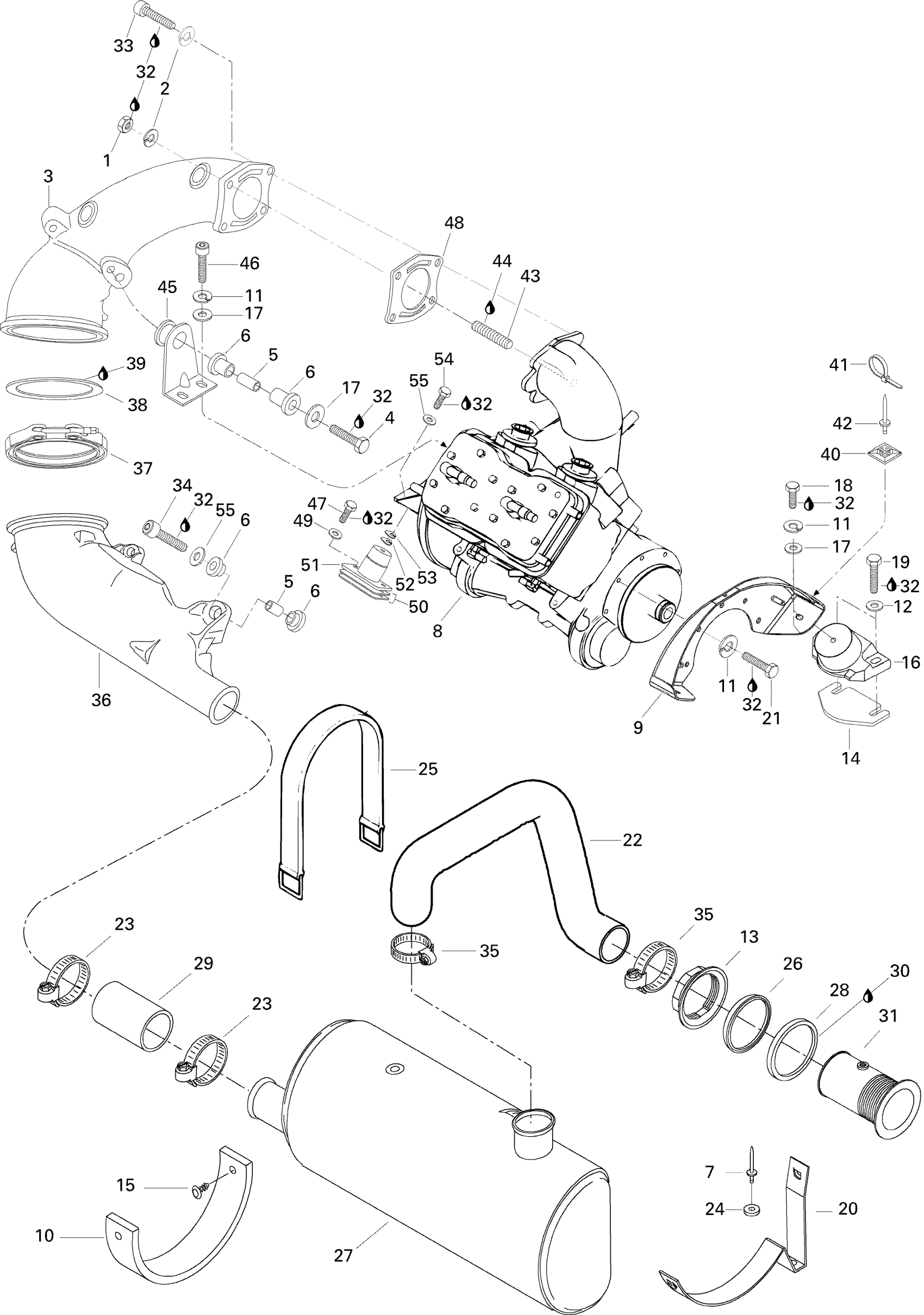

Sea-doo GTX, 5640, 1996 01- Exhaust System Diagram
#
1
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
2
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
3
Head Pipe Ass'y | Includes 6 - 8.
274000161
Unavailable
4
Hex. Screw M8 X 40
207084060
$2.22
5
Bushing
274000254
$13.17
6
RUBBER BUSHING - Call your local BRP dealership
293830036
$14.23
7
Avdel Rivet 3/16"
293150037
$0.56
8
Rotax Engine 787 (White)
270000203
Unavailable
9
Engine Support
270000219
Unavailable
10
Rubber Pad
293830008
Unavailable
11
Lock Washer 8 mm, Stainless
234181601
$0.55
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Nut 72 mm
274000224
$16.34
14
Shim 0.3 mm
270000122
Unavailable
14
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
15
Black, Dart
293730011
$0.99
16
Male Connector, 2 Circuits
270000220
Unavailable
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
Hex. Screw M8 x 16
215681660
Unavailable
19
Hex. Screw M8 X 40
207184060
$2.22
20
Muffler Support
274000400
Unavailable
21
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
22
Exhaust Hose
274000420
Unavailable
23
Tridon Clamp
293650036
$7.49
24
Flat Washer 5 mm, Stainless
234052600
$0.77
25
Retainer Strap
293850097
$11.64
26
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
27
Muffler
274000418
Unavailable
28
GASKET - Call your local BRP dealership
293250041
Unavailable
29
Exhaust Hose
274000170
Unavailable
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
Allen Screw M10 x 30
215903060
Unavailable
34
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
35
Tridon Clamp
293650064
$8.29
36
Cone Pipe ass'y
274000210
Unavailable
37
Clamp-Exhaust
274000357
Unavailable
38
Brass Washer
274000169
Unavailable
39
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
40
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
41
Tie Wrap 94 mm | 4X4
293750001
$1.03
42
Rivet 1/8"
293150016
$0.40
43
Stud M10
211300017
Unavailable
44
Loctite 271, 10 ml
293800005
$26.99
45
Pipe Support
274000384
Unavailable
46
Allen Screw M8 x 20
215982060
Unavailable
47
Hex. Screw M8 X 30
207183060
$1.58
48
Gasket
290931500
Unavailable
49
Stainless, Flat Washer 8 mm
234081600
$0.55
50
Shim 0.3 mm
270000122
Unavailable
50
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
51
Rubber Mount
270000222
Unavailable
52
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
53
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
54
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
55
Flat Washer 8 mm, Stainless
234082600
$2.43
