01- Crankcase And Rotary Valve

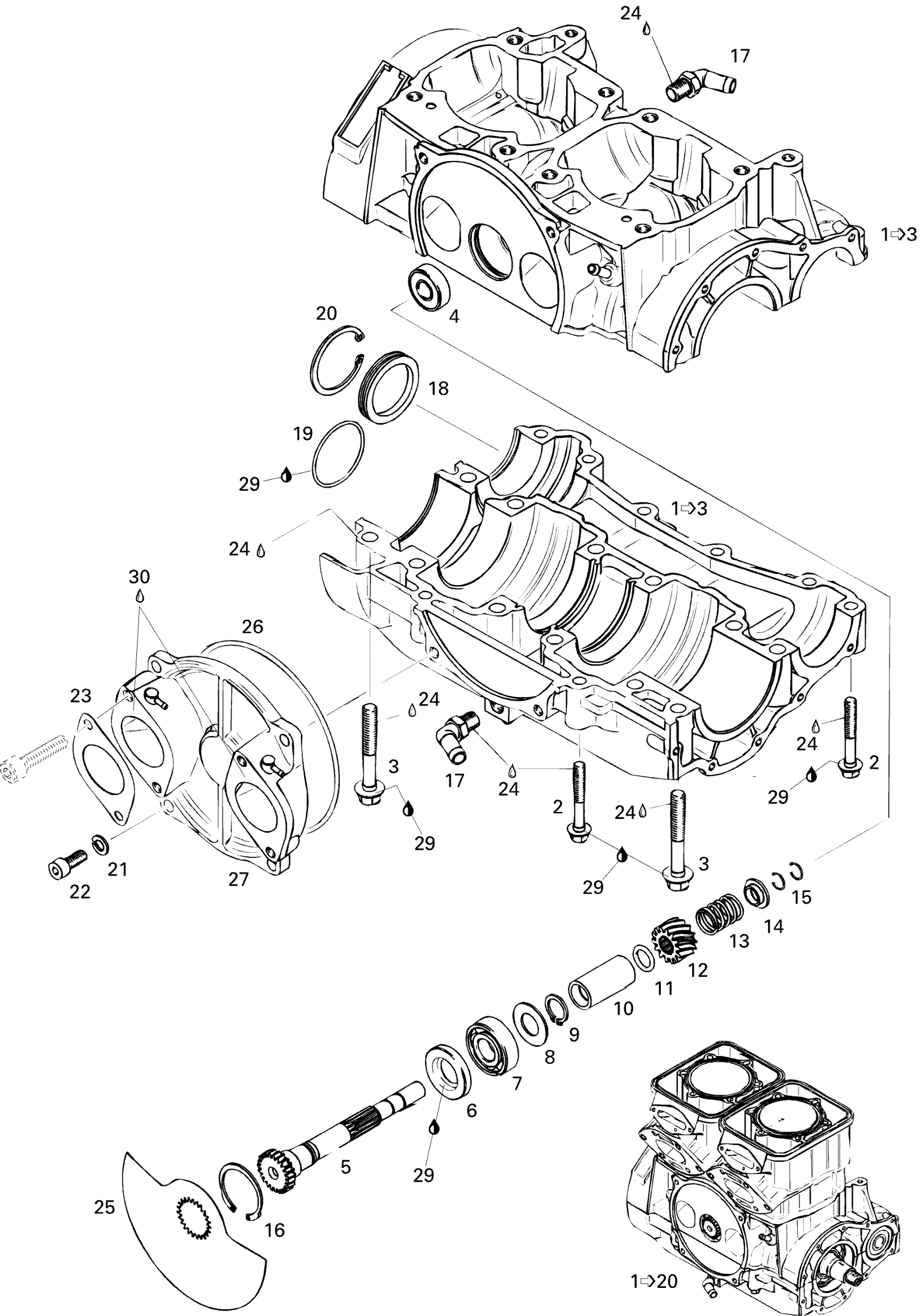

Sea-doo GTX, 5640, 1996 01- Crankcase And Rotary Valve Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 23.
290881527
Unavailable
1
Crankcase Ass'y (White) | Includes 1 to 3
290887233
Unavailable
2
Hex. Flange Screw M8 x 55
290240328
Unavailable
3
Flange Screw M10 x 73,5
290941333
Unavailable
4
Ball Bearing
420932797
$19.99
5
Rotary Valve Shaft
290837350
Unavailable
6
OIL SEAL - Call your local BRP dealership
290930580
Unavailable
7
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
8
Shim
290227439
Unavailable
9
SNAP RING - Call your local BRP dealership
420845450
Unavailable
10
Distance Sleeve
290847287
Unavailable
11
O-Ring
293300024
$8.57
12
Sprocket 14Th This part replaces 420935735.
420935736
$88.99
13
Spring
290938810
Unavailable
14
Spring Seat
290827430
Unavailable
15
Circlip
290845160
Unavailable
16
Lock Ring
420945880
$4.44
17
Angular Tube
420922242
$14.83
18
BEARING COVER - Call your local BRP dealership This part replaces 290810745.
420810745
Unavailable
19
O-Ring
290230300
Unavailable
20
BEARING COVER - Call your local BRP dealership This part replaces 290810745.
420810745
Unavailable
21
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
22
Cylinder Screw M8 x 20
290240073
Unavailable
23
Gasket This part replaces 293250070.
293250134
$13.76
24
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
25
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.
420924502
Unavailable
26
O-Ring
290831765
Unavailable
27
Rotary Valve Cover
290810738
Unavailable
28
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886390
Unavailable
29
Dow Corning 111, 150 g
413707000
$59.99
30
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
