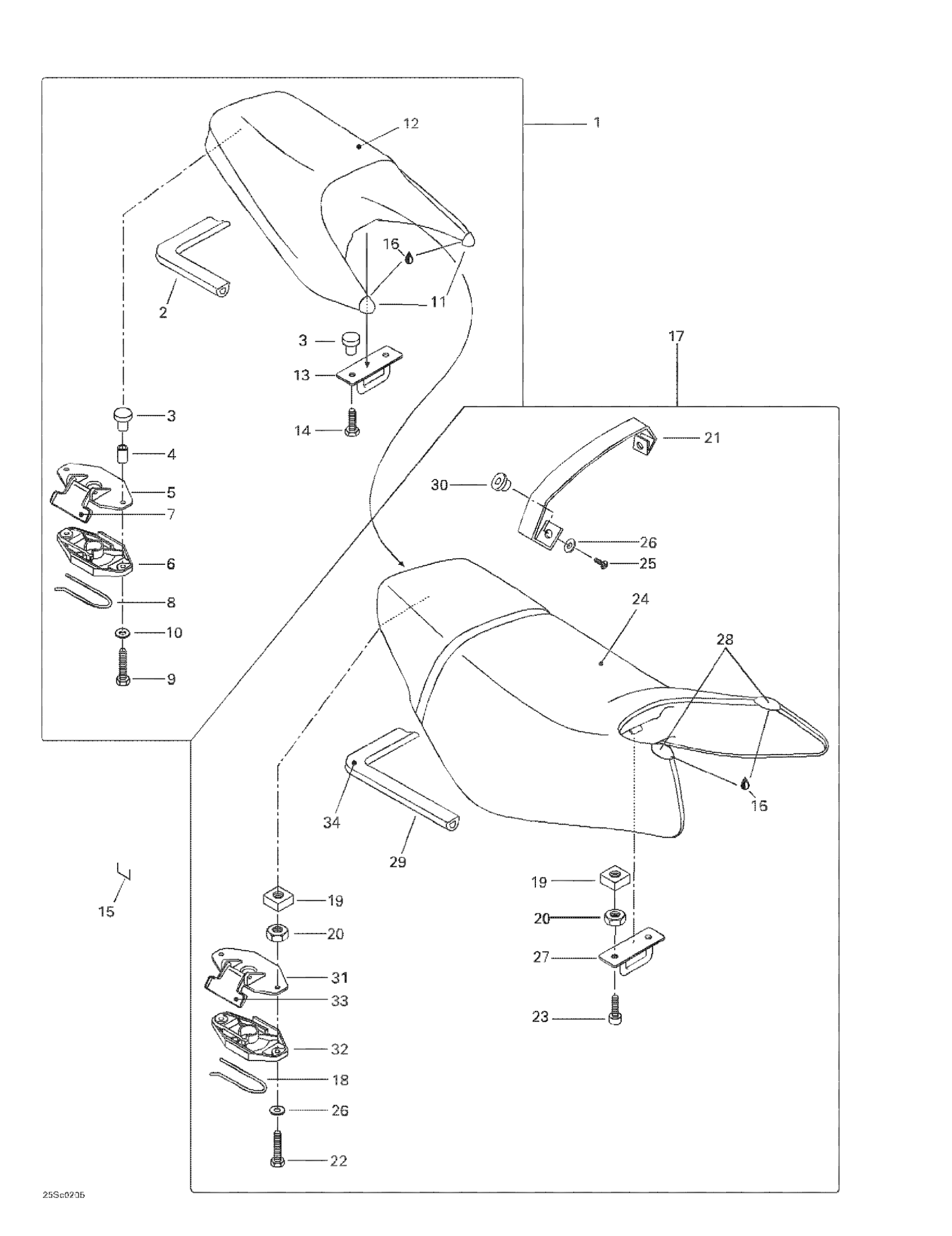

Sea-doo GTX, 5587/5588, 2002 Seat And Engine Cover Diagram

#

Description
Price

1

Rear Seat Ass'y | Includes 1 - 14.

269000762

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

Nut Welded, M6

293100003

$9.12

4

SPACER - Call your local BRP dealership

291000532

Unavailable

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Spring

269700017

$9.19

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

10

Stainless Flat Washer M6

234061600

$0.33

11

Rear Seat Corner RH

269000767

Unavailable

Rear Seat Corner LH

269000768

Unavailable

12

Rear Seat Cover

269000766

Unavailable

13

Hook (Seat Base)

291001357

Unavailable

14

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

17

Front Seat Ass'y | Includes 17 - 33.

269000773

Unavailable

18

Latch Spring

269700017

$9.19

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

20

Hex. Nut M6

232061600

$1.15

21

Strap (Silver)

269000629

Unavailable

22

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

24

Front Seat Cover

269000616

Unavailable

25

SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership

205961660

Unavailable

26

Stainless Flat Washer M6

234061600

$0.33

27

Hook (Seat Base)

291001357

Unavailable

28

Seat Corner (Silver)

269000617

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$149.99

30

Nut Welded, M6

293100003

$9.12

31

Latch Ass'y

269700109

$24.99

32

Latch Ass'y

269700109

$24.99

33

Latch Ass'y

269700109

$24.99

34

Loctite 401, 1 Oz

293800048

Unavailable
