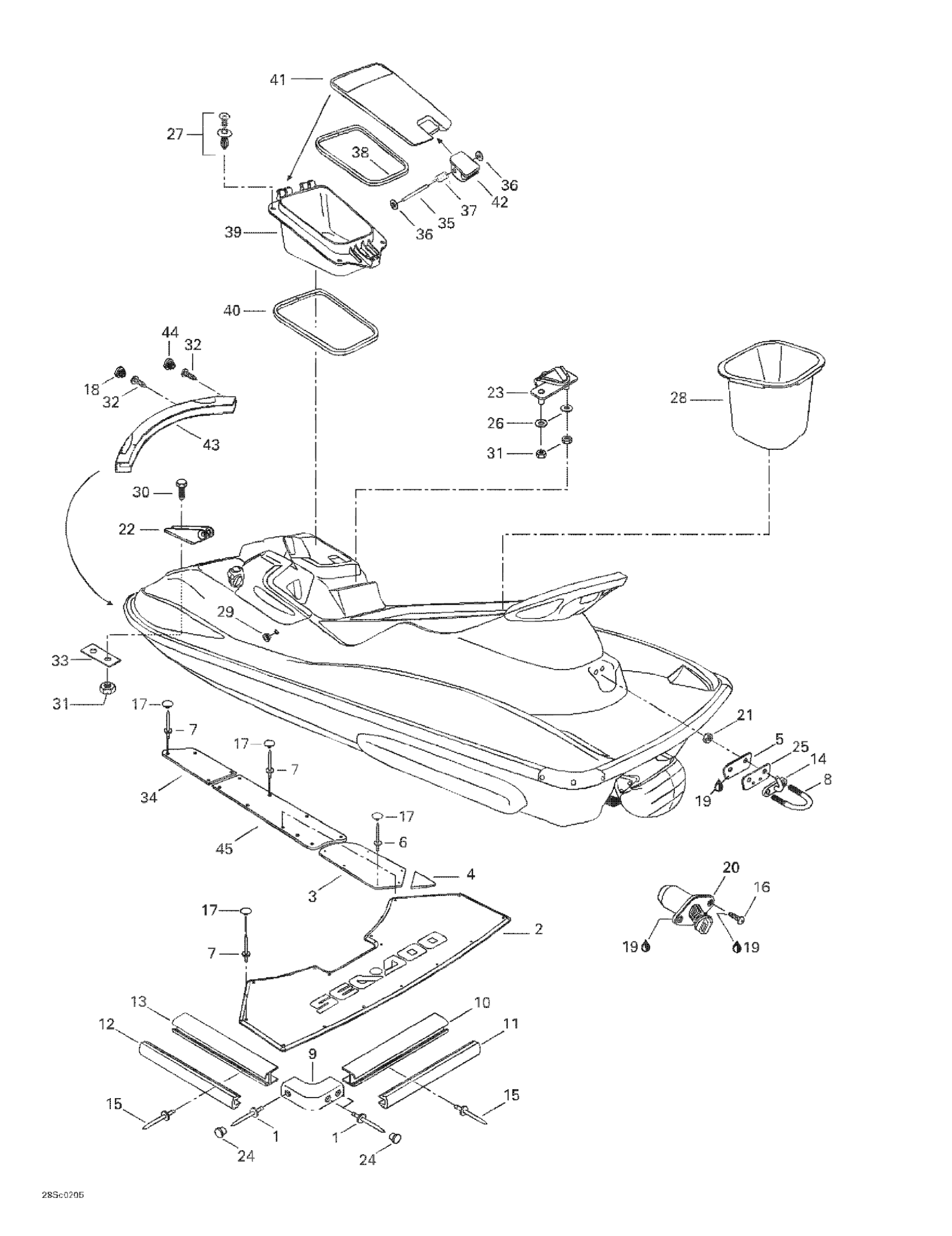

Sea-doo GTX, 5587/5588, 2002 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.37

2

Rear Carpet (Black)

291001053

Unavailable

3

RH Rear Carpet (Black)

291001051

Unavailable

LH Rear Carpet (Black)

291001052

Unavailable

4

RH Anti-Skid Carpet

291001252

Unavailable

LH Anti-Skid Carpet

291001253

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Rivet 1/8"

293150016

$0.40

7

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

8

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

9

Bumper Corner

291002244

$48.99

10

Rear Bumper (Black)

291001226

Unavailable

11

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Hook | Package LTD

291002351

$69.99

15

Pop Rivet 3/16"

293150005

$0.52

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$1.09

18

Bumper Plug, Black

291001040

$7.39

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

21

Hex. Elastic Nut M8

232581600

$1.48

22

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

23

Seat Hook

291001479

Unavailable

24

Bumper Plug, Black

291000339

$2.99

25

Finition Plate (Black)

291000768

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

28

Rear Tray (Seat)

269500992

Unavailable

29

PIPE CAP - Call your local BRP dealership

293000089

Unavailable

30

Hex. Screw M6 X 25

207162560

$1.47

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

34

RH Front Carpet (Black)

291001032

Unavailable

LH Front Carpet (Black)

291001033

Unavailable

35

Pin

211400008

$9.10

36

Push Nut | Not shown

211100002

$2.19

37

Latch Spring

291000922

$7.39

38

GASKET - Call your local BRP dealership

293250060

Unavailable

39

Box Gloves

269500439

Unavailable

40

Seal 1000Mm Long

219704373

$8.26

41

Door-Box Gloves

269500753

Unavailable

42

Latch, Black

269500553

$21.99

43

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

44

Bumper Plug, Black

291001519

$5.49

45

RH Center Carpet (Black)

291001030

Unavailable

LH Center Carpet (Black)

291001031

Unavailable
