Partiron

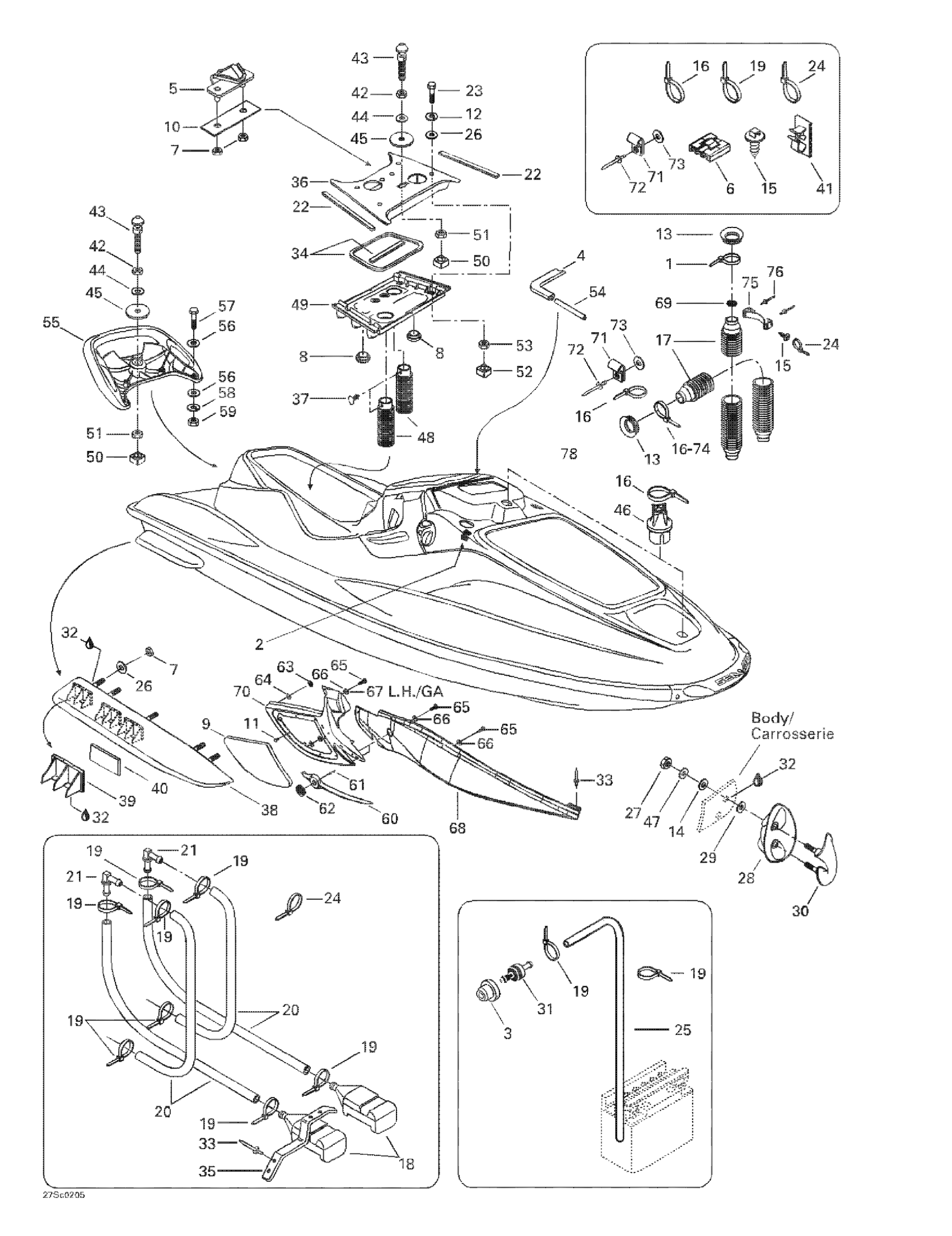

Sea-doo GTX, 5587/5588, 2002 Body, Front View Diagram

#

Description
Price

1

Tie Rap

293750022

Unavailable

2

Protector

291001512

Unavailable

3

Grommet

293720029

$1.13

4

Was 293200017 Neoprene Seal

219704365

$118.27

5

Seat Hook

291001479

Unavailable

6

Tie-Rap Mount

293750025

$1.15

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Plug

293000049

Unavailable

9

RH Knee Pad

269000670

Unavailable

LH Knee Pad

269000671

Unavailable

10

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

$11.98

11

Black, Dart

414644300

$0.78

12

Lock Washer Helical M6

234161601

$0.92

13

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

14

Rubber Washer

293830037

$2.75

15

Mount Dart

293730040

$0.86

16

Tie Wrap 368 mm

293750008

$0.85

Tie Rap 394 mm

293750023

Unavailable

Tie-Rap 180 mm

414115200

$0.09

17

Vent Hose

291001772

Unavailable

18

Bailer Screen

292000688

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$0.83

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

$5.35

22

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

23

Hex. Screw M6 X 70

207067060

$4.62

24

Tie Wrap 142 mm

293750002

$0.88

25

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.64

27

Hex. Elastic Nut M8

232581600

$1.25

28

Black Shell

292001837

$14.92

29

Stainless, Flat Washer 8 mm

234081600

$0.46

30

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$35.72

33

Avdel Rivet 3/16"

293150037

$0.47

34

Neoprene Seal (1PAC=3M)

219704364

$22.72

35

LH SPRING CLIP - Call your local BRP dealership

292000398

$9.97

36

Bridge Upper

291000851

Unavailable

37

Black, Dart

293730011

$0.79

38

RH SPONSON - Call your local BRP dealership

292000594

$83.05

LH SPONSON - Call your local BRP dealership

292000595

$83.05

39

Insert

293450149

Unavailable

40

CUSHION - Call your local BRP dealership

292000414

$6.12

41

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

42

Hex. Jam Nut M10

232100600

$1.85

43

SEAT STUD - Call your local BRP dealership

291000945

$30.74

44

Flat Washer 10 mm, Stainless

234002600

$1.85

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

GROMMET - Call your local BRP dealership

293720042

Unavailable

47

Flat Washer 8 mm, Stainless

250200175

$1.29

48

Vent Hose

291001775

$23.05

49

BRIDGE LOWER - Call your local BRP dealership

291001281

$32.28

50

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

51

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

52

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

53

Hex. Nut M6

232061600

$0.91

54

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

55

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

56

Flat Washer M6, Stainless

234062600

$0.64

57

Hex. Screw M6 X 40

207064060

$1.40

58

Lock Washer Helical M6

234161601

$0.92

59

Hex. Nut M6

232061600

$0.91

60

FINITION PLATE - Call your local BRP dealership

269500716

$41.51

61

Pop Rivet 3/16"

293150008

$0.40

62

BRP Logo 48mm

516008738

$12.87

63

Push Nut

250100008

Unavailable

64

Flat Washer, Stainless/Neoprene

211200055

$0.68

65

Hex. Flange Screw K40 X 16

241141660

$1.25

66

Flat Washer 5 mm, Stainless

234052600

$0.64

67

FLAT WASHER - Call your local BRP dealership

211200033

$1.14

68

LH Moulding

291001403

Unavailable

RH Moulding

291001404

Unavailable

69

Restrictor

291001770

Unavailable

70

RH Intake Grille (Starboard)

269500715

Unavailable

LH Intake Grille (Port)

269500714

Unavailable

71

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

72

Pop Rivet 3/16"

293150005

$0.40

73

Flat Washer, Emhart

213200016

$0.68

74

Tie Rap 394 mm

293750023

Unavailable

75

Support

274000891

Unavailable

76

Pop Rivet 3/16"

293150043

$1.61
