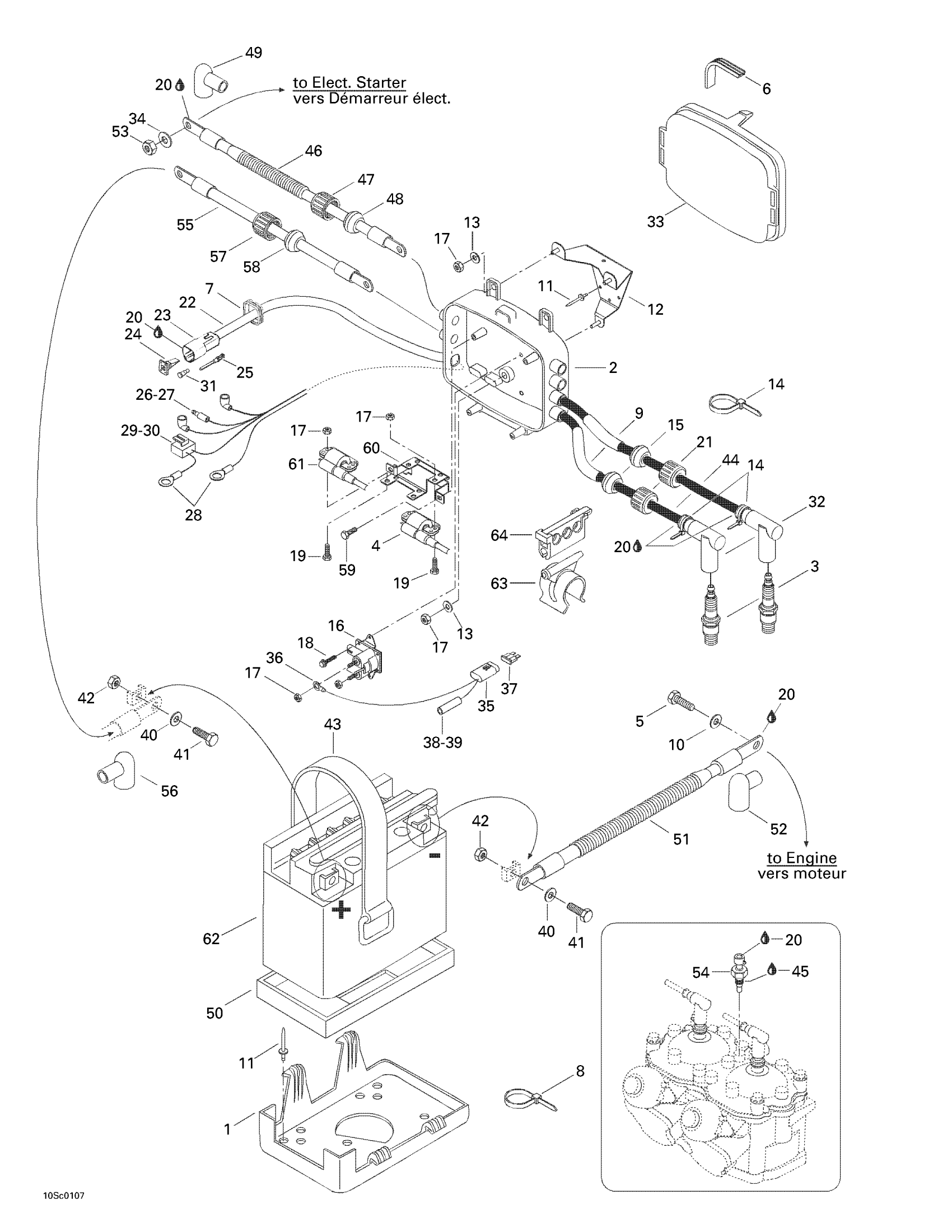

Sea-doo GTX, 5526/5527/5538/5539, 2001 Rear Electrical Box Diagram

#

Description
Price

1

Battery Support

278001430

Unavailable

2

Electrical Box Base

278001712

Unavailable

3

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

4

Ignition Coil (MAG)

278001416

Unavailable

5

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

Flat Washer 10 mm, Stainless

234001600

$1.15

11

Avdel Rivet 3/16"

293150037

$0.56

12

Electric Box Support

278001487

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Tie Wrap 142 mm

293750002

$1.25

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Hex. Forming Screw M6 X 20

207162060

$1.29

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Electric Wire Cap

278000100

Unavailable

22

REAR ELECTRIC BOX HARNESS - Call your local BRP dealership | Includes 22 - 31.

278001423

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$19.99

24

Female Lock, 6 Circuits

278000735

$3.19

25

Male Terminal

278000631

$4.39

26

Male Terminal

278000230

$4.39

27

Insulated Sheath

278001008

$3.28

28

Ring Terminal

278000300

Unavailable

29

Male Connector, 2 Circuits

278001113

$16.86

30

Female Terminal

278001114

$3.19

31

Sealing Cap

293000052

$3.19

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

33

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

34

Stainless Flat Washer M6

234061600

$0.33

35

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

36

Ring Terminal

278000300

Unavailable

37

Fuse, 15 Amperes

278000343

$3.28

38

Female Terminal | DS 650 X

278001009

$3.19

39

Insulated Sheath

278001007

$3.58

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

Retainer Strap

293850097

$11.64

44

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

46

STARTER RED CABLE - Call your local BRP dealership | Includes 44 to 47

278001437

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Battery Ground Cable | Includes 51 - 52.

278001439

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$1.15

54

Temperature Sensor

278002895

$39.99

55

Starter Positive Cable, Red | Includes 18,19,21,22,40

278001438

Unavailable

56

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

Hex. Screw M6 X 16

209561640

Unavailable

60

Ignition Coil Support

278001421

Unavailable

61

COIL-IGNITION - Call your local BRP dealership

278001414

Unavailable

62

Battery 19A | Includes 5 to 8

278001756

$153.36

63

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

64

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable
