Partiron

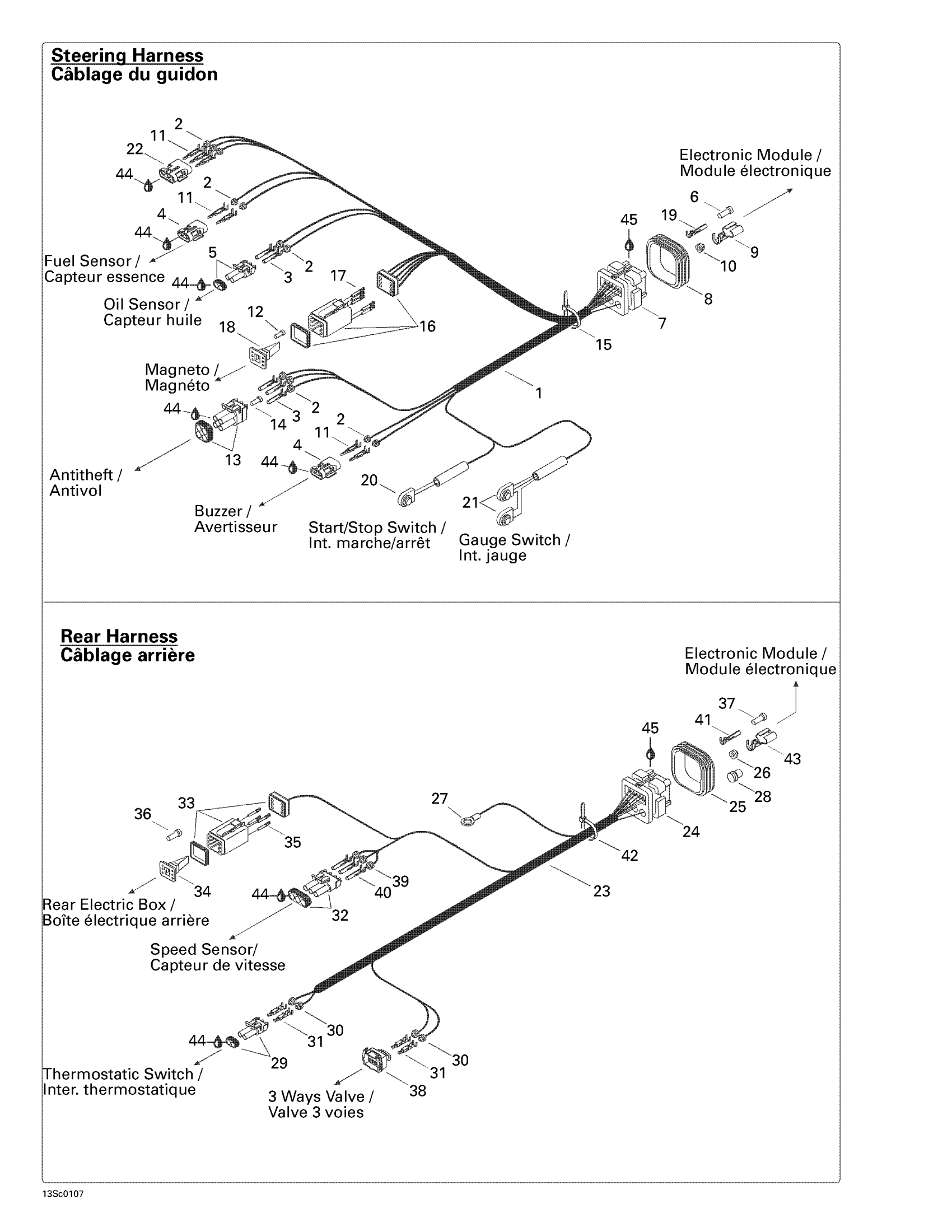

Sea-doo GTX, 5526/5527/5538/5539, 2001 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 22.

278001396

Unavailable

2

Wire Seal

278000218

$4.00

3

Female Terminal

278000223

$2.93

4

Female Housing, 2 Circuits

278000217

$8.72

5

Male Connector, 2 Circuits

278000220

$12.66

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$2.93

12

Sealing Cap

293000052

$2.93

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$2.93

15

Tie Wrap 142 mm

293750002

$1.01

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

17

Female Terminal

278000632

$1.94

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

20

Stop/Start Switch Ass'y

278001403

Unavailable

21

<> Switch

278001375

Unavailable

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

23

Rear Harness | Includes 23 - 43.

278001394

Unavailable

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

25

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

26

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

27

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

28

SEAL - Call your local BRP dealership

409013900

Unavailable

29

Male Housing, 2 Circuits

278001005

$17.88

30

Wire Seal

278000999

$2.93

31

Female Terminal

278000998

$4.00

32

Male Housing, 3 Circuits

278000273

$8.72

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Female Terminal

278000632

$1.94

36

Sealing Cap

293000052

$2.93

37

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

38

Male Connector, 2 Circuits

278001003

$43.25

39

Wire Seal

278000218

$4.00

40

Female Terminal

278000223

$2.93

41

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

42

Tie Wrap 142 mm

293750002

$1.01

43

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

44

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

45

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
