Partiron

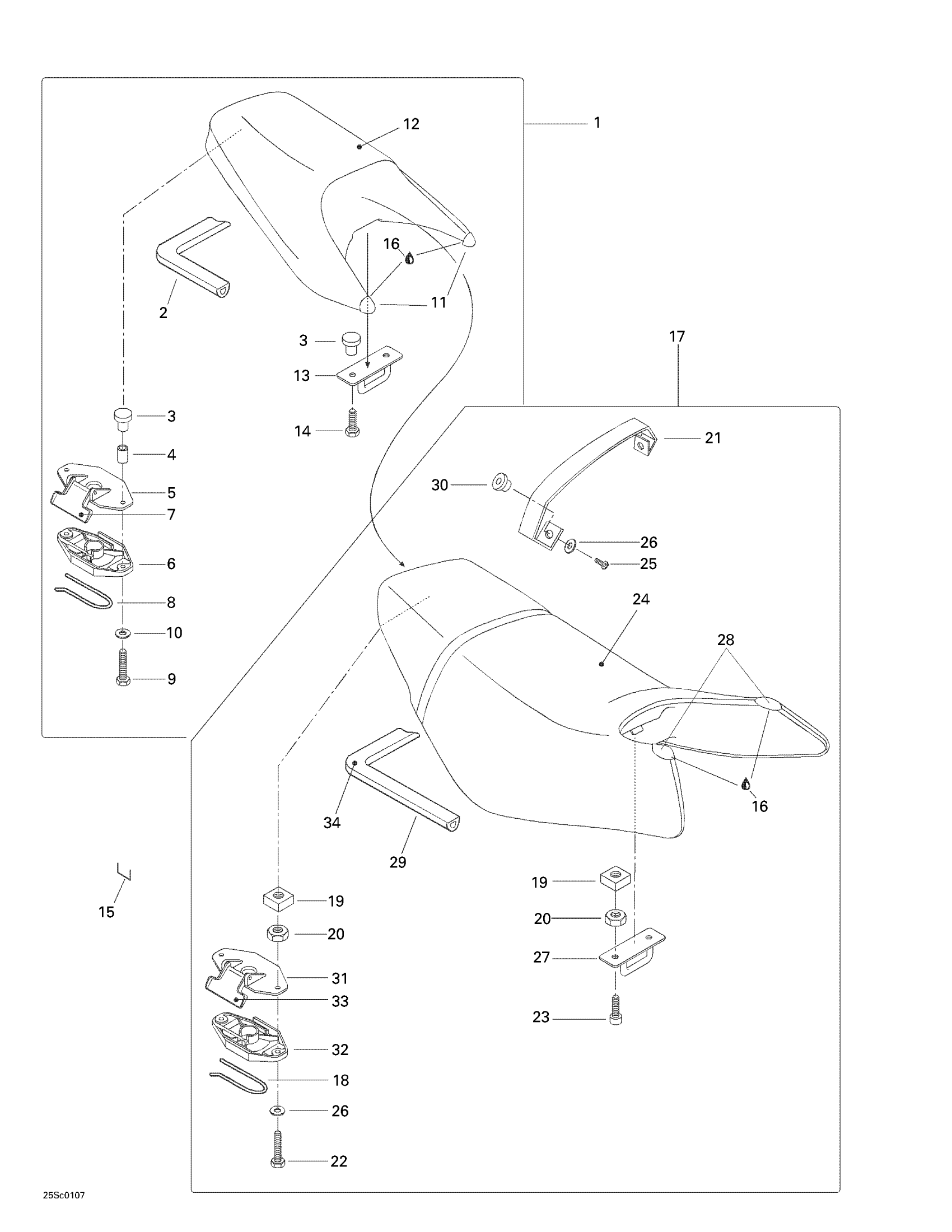

Sea-doo GTX, 5526/5527/5538/5539, 2001 Seat And Engine Cover Diagram

#

Description
Price

1

Rear Seat Ass'y (Viper Red) | Includes 1 - 14. GTX (RED).

269000620

Unavailable

Rear Seat Ass'y (Mazalan Blue) | GTX (BLUE).

269000630

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$118.27

3

Nut Welded, M6

293100003

$6.32

4

SPACER - Call your local BRP dealership

291000532

Unavailable

5

Latch Ass'y

269700109

$20.12

6

Latch Ass'y

269700109

$20.12

7

Latch Ass'y

269700109

$20.12

8

Latch Spring

269700017

$7.27

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

10

Stainless Flat Washer M6

234061600

$0.25

11

Rear Seat Corner RH (Viper Red) | GTX (RED).

269000632

Unavailable

Rear Seat Corner LH (Viper Red) | GTX (RED).

269000633

Unavailable

RH Rear Seat Corner

269000636

Unavailable

LH Rear Seat Corner

269000637

Unavailable

12

Rear Seat Cover (Viper Red) | GTX (RED).

269000612

Unavailable

Rear Seat Cover

269000635

Unavailable

13

Hook (Seat Base)

291001357

Unavailable

14

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

15

Staple

293730005

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

17

Front Seat Ass'y (Silver) | Includes 17 - 33. GTX (RED).

269000615

Unavailable

Front Seat Ass'y (Silver) | GTX (BLUE).

269000721

Unavailable

18

Latch Spring

269700017

$7.27

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

20

Hex. Nut M6

232061600

$0.91

21

Strap (Silver)

269000629

Unavailable

22

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

24

Front Seat Cover

269000616

Unavailable

Front Seat Cover (Silver) | GTX (BLUE).

269000747

Unavailable

25

SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership

205961660

Unavailable

26

Stainless Flat Washer M6

234061600

$0.25

27

Hook (Seat Base)

291001357

Unavailable

28

Seat Corner (Silver)

269000617

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$118.27

30

Nut Welded, M6

293100003

$6.32

31

Latch Ass'y

269700109

$20.12

32

Latch Ass'y

269700109

$20.12

33

Latch Ass'y

269700109

$20.12

34

Loctite 401, 1 Oz

293800048

Unavailable
