- GTX, 5526/5527/5538/5539, 2001
09- Front Storage Compartment

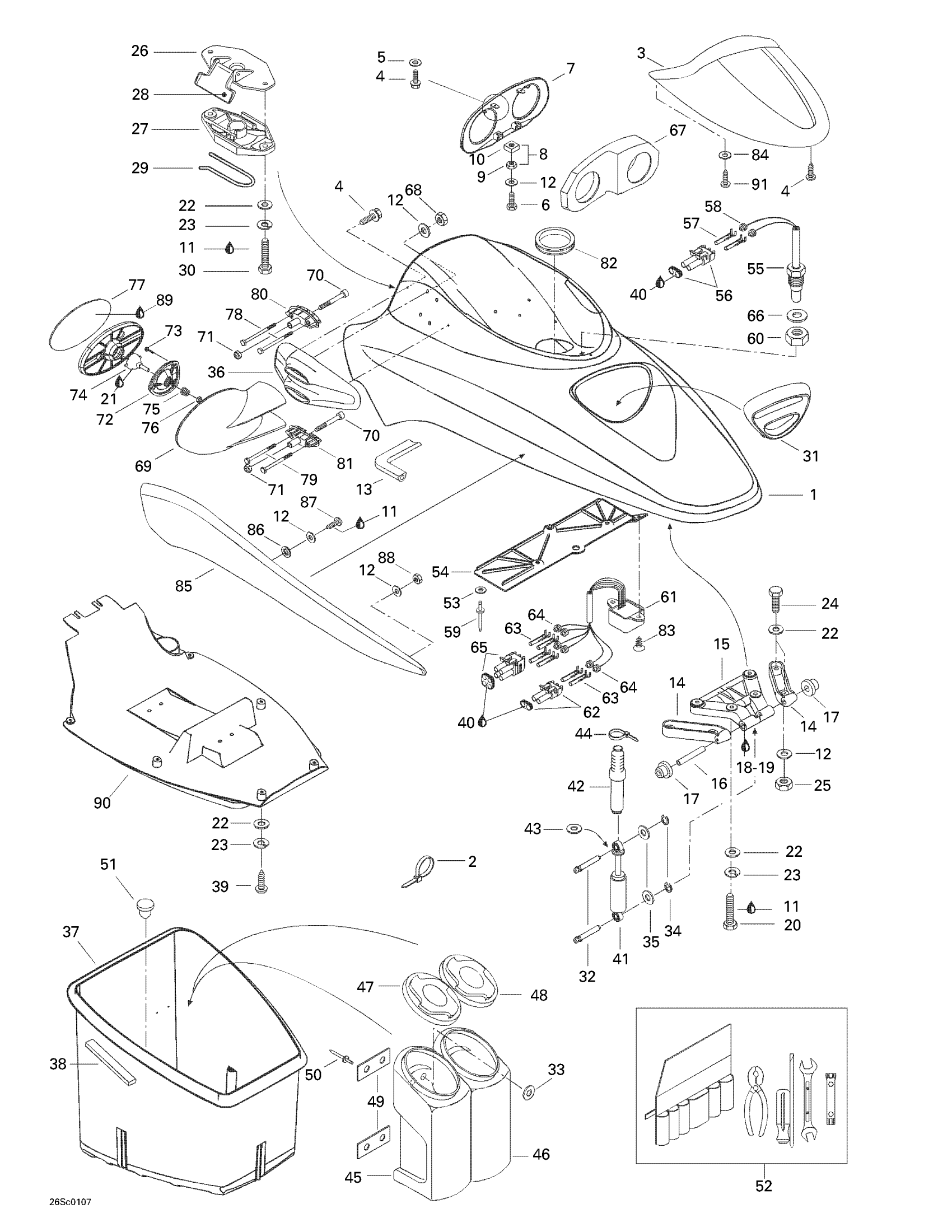

Sea-doo GTX, 5526/5527/5538/5539, 2001 09- Front Storage Compartment Diagram
#
1
Storage Cover Upper (Viper Red) | GTX (RED).
269500743
Unavailable
Storage Cover Upper (Mazalan Blue) | GTX (BLUE).
269500768
Unavailable
2
Tie Wrap 142 mm
293750002
$1.25
3
Deflector (Viper Red) | GTX (RED).
269500744
Unavailable
Deflector
269500769
Unavailable
4
Hex. Flange Screw K40 X 16
241141660
$1.48
5
Flat Washer 4 mm, Stainless
234041600
$1.15
6
Hex. Screw M6 X 25
207162560
$1.47
7
DASH BOARD - Call your local BRP dealership | Includes 13 - 16.
269500588
Unavailable
8
M6 Nut Housing Ass'y | Includes 7r to 7r2
269500725
$4.55
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
11
Loctite 243, 10 ml
293800060
$21.49
12
Flat Washer M6, Stainless
234062600
$0.77
13
Neoprene Seal 3000Mm Long
219704371
$51.99
14
RH HINGE - Call your local BRP dealership
269700022111
Unavailable
LH HINGE - Call your local BRP dealership
269700023111
Unavailable
15
COVER HINGE - Call your local BRP dealership
269700038
Unavailable
16
AXLE - Call your local BRP dealership
269700024
Unavailable
17
CUSHION - Call your local BRP dealership
293350016
Unavailable
18
Sealant Loctite 648
219703000
$45.99
19
Was 293800041 Loctite Primer 7649
219704458
$39.99
20
Hex. Forming Screw M6 X 20
207162060
$1.29
21
Synthetic Grease, 400 G
293550010
Unavailable
22
Stainless Flat Washer M6
234061600
$0.33
23
Lock Washer Helical M6
234161601
$1.15
24
Hex. Screw M6 X 35
207063560
$2.22
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Latch Ass'y
269700109
$24.99
27
Latch Ass'y
269700109
$24.99
28
Latch Ass'y
269700109
$24.99
29
Latch Spring
269700017
$9.19
30
Hex. Screw M6 X 25
207162560
$1.47
31
Intake Grille
269500746
Unavailable
32
SHORT PIN - Call your local BRP dealership
211400006
Unavailable
33
Flat Washer M3, Stainless
234032600
$0.55
34
CIRCLIP - Call your local BRP dealership
293370008
Unavailable
35
Stainless, Flat Washer 8 mm
234081600
$0.55
36
Support (Mirror) LH (Viper Red) | GTX (RED).
269500749
Unavailable
Support (Mirror) RH (Viper Red) | GTX (RED).
269500747
Unavailable
LH Support Mirror
269500759
Unavailable
RH Support Mirror
269500757
Unavailable
37
Storage Tray | Includes 77 - 78.
269500269
Unavailable
38
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
39
SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership
208661660
Unavailable
40
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
41
Gas Shock Ass'y | Includes 82 - 85.
269500261
$119.99
42
BELLOW - Call your local BRP dealership
291000919
Unavailable
43
Washer
211200034
Unavailable
44
Tie Wrap 94 mm | 4X4
293750001
$1.03
45
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
46
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
47
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
48
Storage Cap
269500604
Unavailable
49
GASKET - Call your local BRP dealership
293250037
Unavailable
50
Pop Rivet 1/8''
293150033
Unavailable
51
Rubber Bumper
293830005
$8.09
52
Owners Tool Kit
295500783
Unavailable
53
Flat Washer 5 mm
234051500
$0.73
54
Mounting Plate
278000857
Unavailable
55
Temperature Sensor | Includes 55 - 58.
278000851
Unavailable
56
Male Connector, 2 Circuits
278000220
$15.49
57
Female Terminal
278000223
$3.19
58
Wire Seal
278000218
$4.39
59
Pop Rivet 3/16"
293150008
$0.50
60
NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership
250100004
Unavailable
61
Compass | GTI RFI LE, Includes 38 to 42
278001243
Unavailable
62
Male Connector, 2 Circuits
278000220
$15.49
63
Female Terminal
278000223
$3.19
64
Wire Seal
278000218
$4.39
65
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
66
Flat Washer 10 mm, Stainless
234000600
$1.46
67
GAUGE SUPPORT - Call your local BRP dealership
269500585
Unavailable
68
Hex. Elastic Stop Nut M6
232561600
$1.15
69
Mirror LH Ass'y (Viper Red) | Includes 69 - 79. GTX (RED).
269500809
Unavailable
69
Mirror RH Ass'y (Viper Red) | GTX (RED).
269500810
Unavailable
69
RH Mirror Ass'y | Includes 21 - 32.
269500772
Unavailable
69
LH Mirror Ass'y
269500775
Unavailable
70
Socket Head Screw M8 X 75
205087560
Unavailable
71
Hex. Elastic Nut M8
232581600
$1.48
72
Not Available As Spare Part - Friction Washer
Unavailable
73
Hex. Flange Screw K40 X 16
241141660
$1.48
74
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
75
Mirror Spring
269500453
$10.49
76
Hex. Elastic Stop Nut M6
232561600
$1.15
77
MIRROR - Call your local BRP dealership
269500454
Unavailable
78
Hex. Screw M6 x 80
207068060
$2.43
79
Hex. Screw M6 X 70
207067060
$5.61
80
ADAPTOR - Call your local BRP dealership
269500546
Unavailable
81
ADAPTOR - Call your local BRP dealership
269500547
Unavailable
82
Rubber Ring
570276900
Unavailable
83
Black, Dart
293730016
$9.97
84
Flat Washer
211200007
Unavailable
85
LH Moulding
269500712
Unavailable
85
RH Moulding
269500713
Unavailable
86
Nut Welded, M6
293100003
$9.12
87
Socket Screw M6 X 16
205461660
$7.48
88
Hex. Nut M6
232061600
$1.15
89
Silicone Sealant 51388, 300 ml
296000309
$36.99
90
Lower Storage Cover
269500660
Unavailable
91
Screw
211000098
$3.80
