- GTX, 5526/5527/5538/5539, 2001
05- Reverse

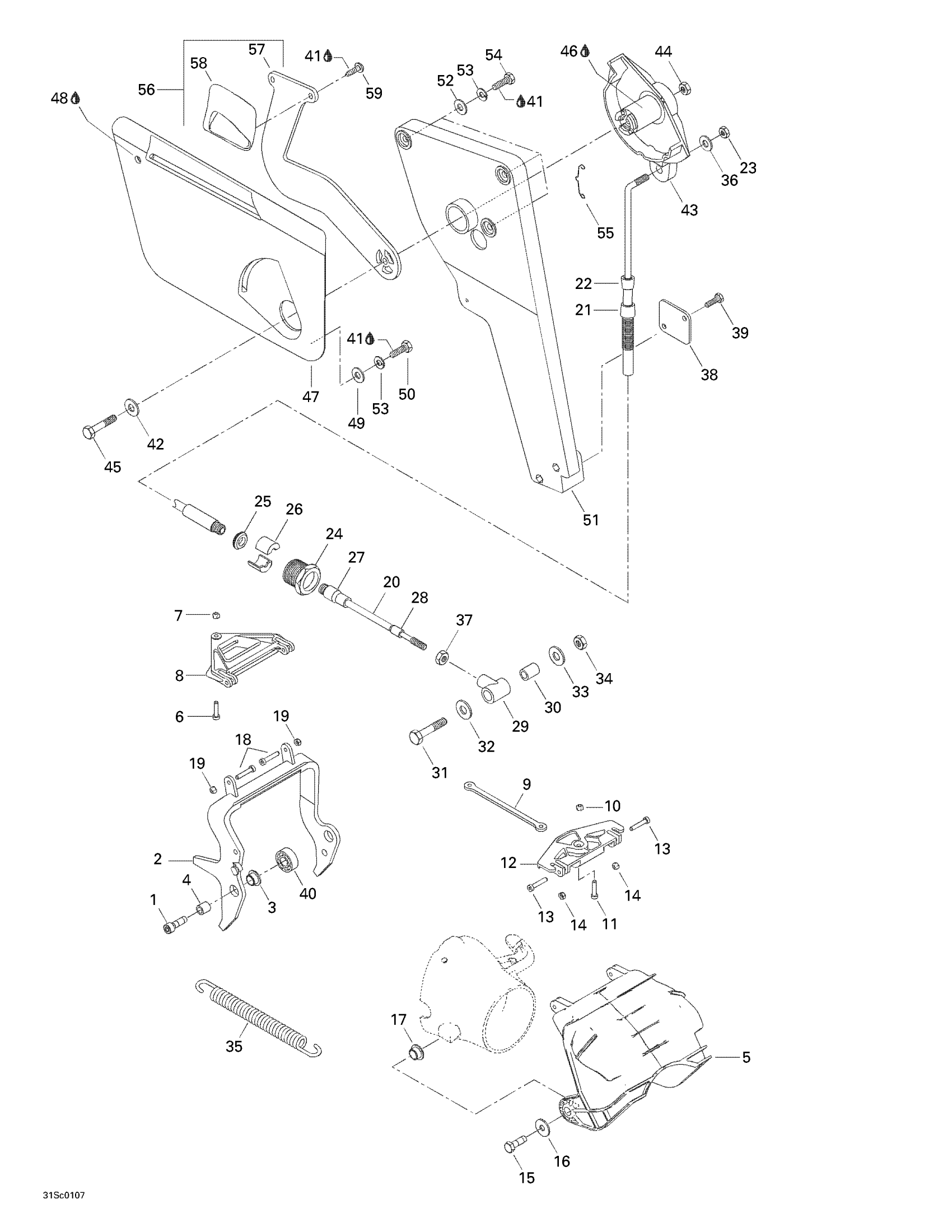

Sea-doo GTX, 5526/5527/5538/5539, 2001 05- Reverse Diagram
#
1
PIVOT SCREW M8 X 25 - Call your local BRP dealership
250000026
Unavailable
2
ARM BLACK - Call your local BRP dealership
271001012
Unavailable
3
Venturi Bushing
271000321
$8.69
4
Spacer
271001039
$16.49
5
Reverse Gate
268000028
$189.99
6
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
7
Hex. Elastic Nut M5 | X
232551600
$1.15
8
TRIANGLE - Call your local BRP dealership
268000013
Unavailable
9
CONNECTOR ROD - Call your local BRP dealership
271001018
Unavailable
10
Hex. Elastic Nut M5 | X
232551600
$1.15
11
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
12
ROD PIVOT - Call your local BRP dealership
268000014
Unavailable
13
SCREW PIVOT - Call your local BRP dealership
250000023
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
$1.15
15
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
16
Flat Washer 8 mm, Stainless
234082600
$2.43
17
Spacer
277000856
Unavailable
18
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
19
Hex. Elastic Nut M5 | X
232551600
$1.15
20
REVERSE CABLE - Call your local BRP dealership | Includes 20 - 23.
277000958
Unavailable
21
Boot, Large
277000473
Unavailable
22
Boot, Small
277000466
Unavailable
23
HEX. ELASTIC STOP NUT - Call your local BRP dealership
212000006
Unavailable
24
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
25
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
26
Half Ring
277000055
$9.49
27
Boot, Large
277000473
Unavailable
28
Boot, Small
277000466
Unavailable
29
Joint
277001204
$18.49
30
Spacer
271001020
$12.99
31
Hex. Screw M6 X 35
207063560
$2.22
32
Flat Washer M6, Stainless
234062600
$0.77
33
Stainless Flat Washer M6
234061600
$0.33
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
Spring
271001328
$17.49
36
Flat Washer M5, Stainless
234051600
$0.77
37
Hex. Nut
212100005
$1.35
38
BRACKET - Call your local BRP dealership
277001058
Unavailable
39
Hex. Flange Screw K40 X 16
241141660
$1.48
40
BUSHING - Call your local BRP dealership | GTS PRO
293900038
Unavailable
41
Loctite 243, 10 ml
293800060
$21.49
42
Stainless Flat Washer M6
234061600
$0.33
43
INTERIOR LEVER - Call your local BRP dealership | Includes 43 - 44.
271001204
Unavailable
44
Hex. Elastic Stop Nut M6
232561600
$1.15
45
Hex. Screw M6 X 16
207161660
$1.59
46
Synthetic Grease, 400 G
293550010
Unavailable
47
Housing Reverse Handle
271001055
Unavailable
48
Silicone Sealant 51388, 300 ml
296000309
$36.99
49
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
50
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
51
Reverse Cable Support
271001203
Unavailable
52
Flat Washer 5 mm, Stainless
234052600
$0.77
53
Helical Lock Washer M5
234151601
$1.15
54
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
55
SPRING - Call your local BRP dealership
271000612
Unavailable
56
Handle Reverse Ass'y | Includes 29 - 32.
271000586
Unavailable
57
Lever
271000613
Unavailable
58
Reverse Handle
271000614
Unavailable
59
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
