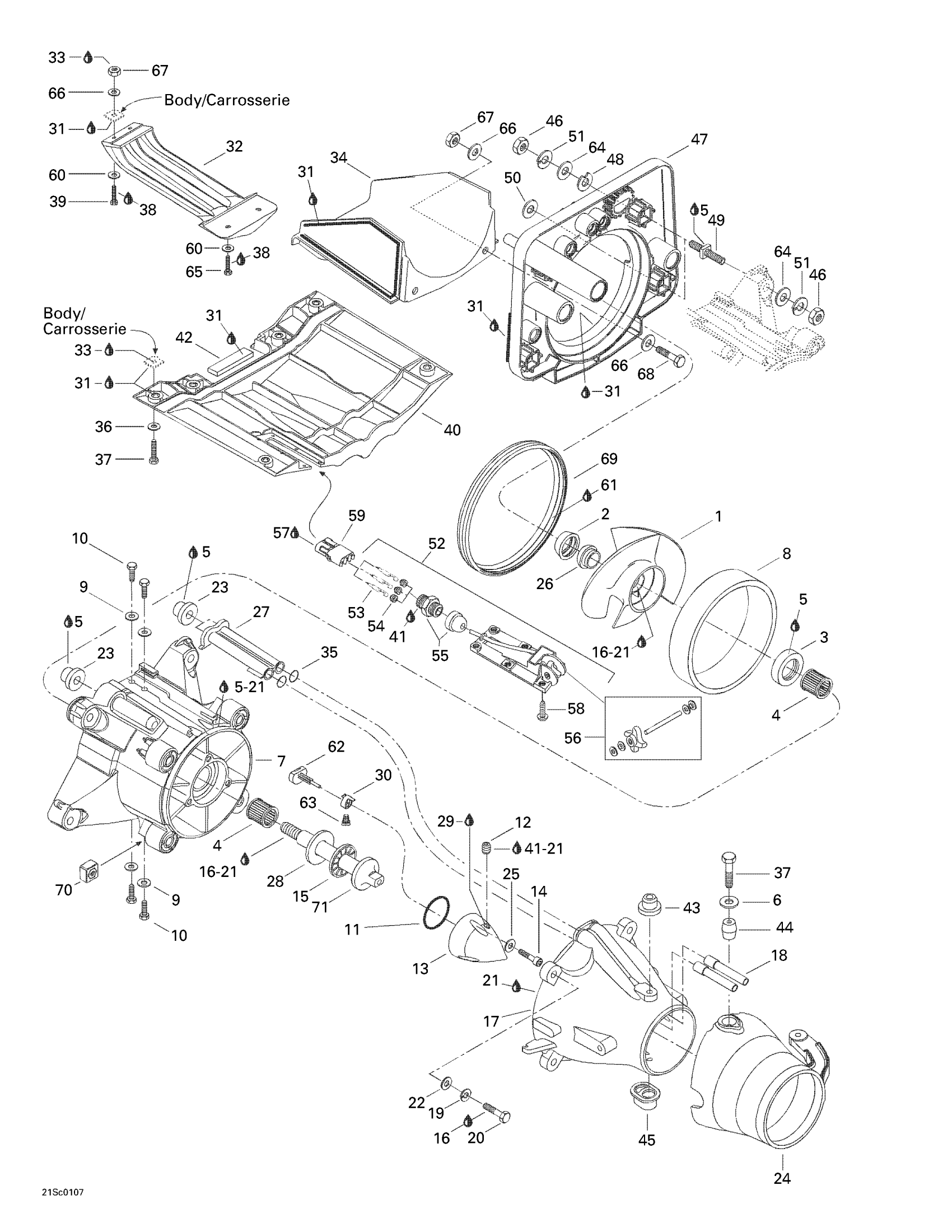

Sea-doo GTX, 5526/5527/5538/5539, 2001 Propulsion System Diagram

#

Description
Price

1

Impeller Ass’Y

271000920

$364.15

2

Impeller Boot

271000516

$7.88

3

Oil Seal

267000094

$20.12

4

Needle Bearing

293350017

$24.60

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

6

Flat Washer M8.5 x 18

293050001

$1.48

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

271001143

Unavailable

8

Wear Ring

271000653

$54.45

9

Flat Washer M5, Stainless

234051600

$0.73

10

Hex. Plastite Screw #10 X 3/8"

250000040

$0.93

11

O-Ring

293300011

$7.42

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$8.06

13

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

14

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

15

Thrust-Bearing

293350022

$41.01

16

Loctite 243, 10 ml

293800060

$21.49

17

Venturi (Black)

271001194

Unavailable

18

Siphon Tube

271001133

$8.09

19

Lock Washer 8 mm, Stainless

234181601

$0.52

20

Hex. Screw M8 X 45

207084560

$3.18

21

Was 293800041 Loctite Primer 7649

219704458

$41.99

22

Stainless, Flat Washer 8 mm

234081600

$0.52

23

Watertight Seal

293250084

$6.67

24

Steering Nozzle Ass'y (Black)

271001197

Unavailable

25

Stainless Flat Washer M6

234061600

$0.28

26

Impeller Ring

271000517

$7.88

27

Water Outlet

271000785

$3.49

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

30

SLIDER - Call your local BRP dealership

271001107

Unavailable

31

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

32

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

SHOE - Call your local BRP dealership

271000792

Unavailable

35

O-Ring

293300013

$6.54

36

Stainless, Flat Washer 8 mm

234081600

$0.52

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

38

Loctite 271, 10 ml

293800005

$23.85

39

Hex. Screw M6 X 40

207164060

$3.15

40

Riding Plate

271000712

Unavailable

41

Was 293800013 Loctite 56765

219704454

$63.40

42

Neoprene Seal (1PAC=3M)

219704364

$26.09

43

Venturi Bushing

293900001

$7.04

44

Sleeve

271001816

$13.30

45

Plastic Bushing

293900010

$8.21

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Pump Support

271000950

Unavailable

48

Shim 0.3 mm

272000053

$9.21

49

Square Stud

250300022

$17.88

50

Flat Washer 10 mm, Stainless

234001600

$1.04

51

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Male Terminal | XT Models

278000222

$2.93

54

Wire Seal

278000218

$4.00

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

58

Phillips Screw M5 x 12

250000319

$1.18

59

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

60

Stainless Flat Washer M6

234061600

$0.28

61

Glue Tube, Loctite 454, 20 G

413708300

$58.18

62

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

63

SPRING - Call your local BRP dealership

271001108

Unavailable

64

Flat Washer 10 mm, Stainless

234002600

$2.12

65

Hex. Screw M6 X 16

207161660

$1.40

66

Flat Washer M6, Stainless

234062600

$0.73

67

Hex. Elastic Stop Nut M6

232561600

$1.06

68

Hex. Forming Screw M6 X 20

207162060

$1.18

69

Neoprene Seal

293200051

$14.90

70

Square Nut M8

211100033

$16.39

71

Impeller Shaft

271000965

$108.18
