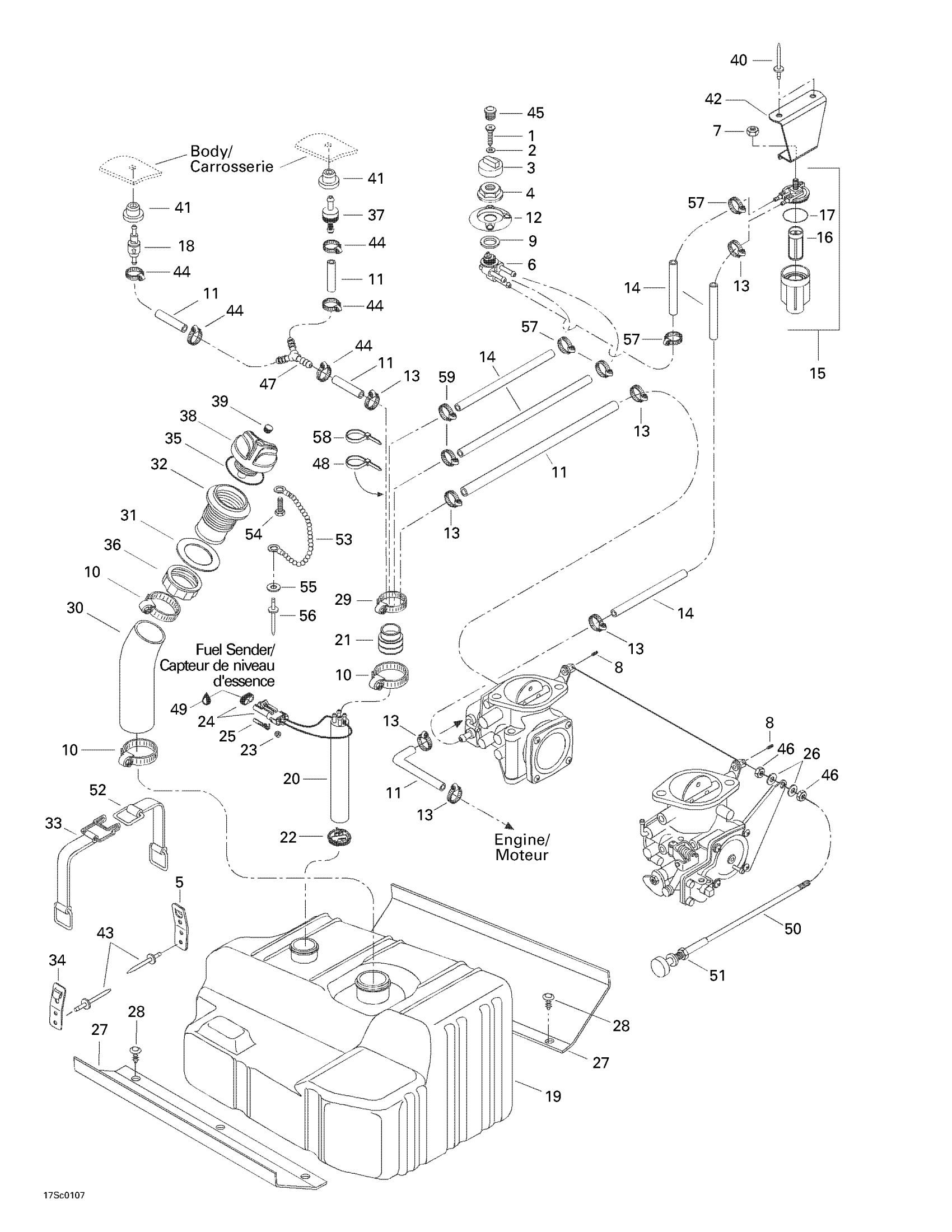

Sea-doo GTX, 5526/5527/5538/5539, 2001 02- Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.55

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

6

Fuel Valve

275500400

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Socket Set Screw M4 x 6

206540660

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$13.49

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Fuel Valve Plate

275500285

Unavailable

13

Tridon Gear Clamp

293650170

$1.99

14

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

15

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$8.79

18

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

19

Fuel Tank

275500291

Unavailable

20

BAFFLE - Call your local BRP dealership | Includes 6 - 11.

275500533

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.39

24

Male Connector, 2 Circuits

278000220

$15.49

25

Female Terminal

278000223

$3.19

26

Stainless Flat Washer M6

234061600

$0.33

27

Rubber Pad

293830077

Unavailable

28

Black, Dart

293730006

$0.99

29

Tridon Clamp

293650035

$7.29

30

Filler Hose Neck

275500301

Unavailable

31

Gasket

293250029

$14.82

32

Filler Neck, Fuel

275500231

$14.75

33

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

34

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Check Valve

275500398

$10.99

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

39

Black, Snap Cap

293000034

$9.39

40

Pop Rivet 3/16"

293150043

$2.09

41

Grommet

293720029

$1.59

42

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.56

44

Oetiker Clamp

293650042

$3.09

45

Black, Cap

275500241

$3.49

46

Hex. Nut M6

232160600

$1.15

47

Y-Fitting

293710059

$9.69

48

Tie-Rap 180 mm

414115200

$0.11

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

Unavailable

51

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

52

Fuel Tank Strap

293850036

$18.99

53

Fuel Cap Chain

275500974

$19.99

54

Screw K40 X 10

241140060

$1.48

55

Flat Washer M3, Stainless

234032600

$0.55

56

Pop Rivet 1/8"

390407900

$1.49

57

Crimp Clamp

293650053

$3.09

58

Tie Wrap 368 mm

293750008

$1.04

59

Tridon Gear Clamp

293650171

$3.09
