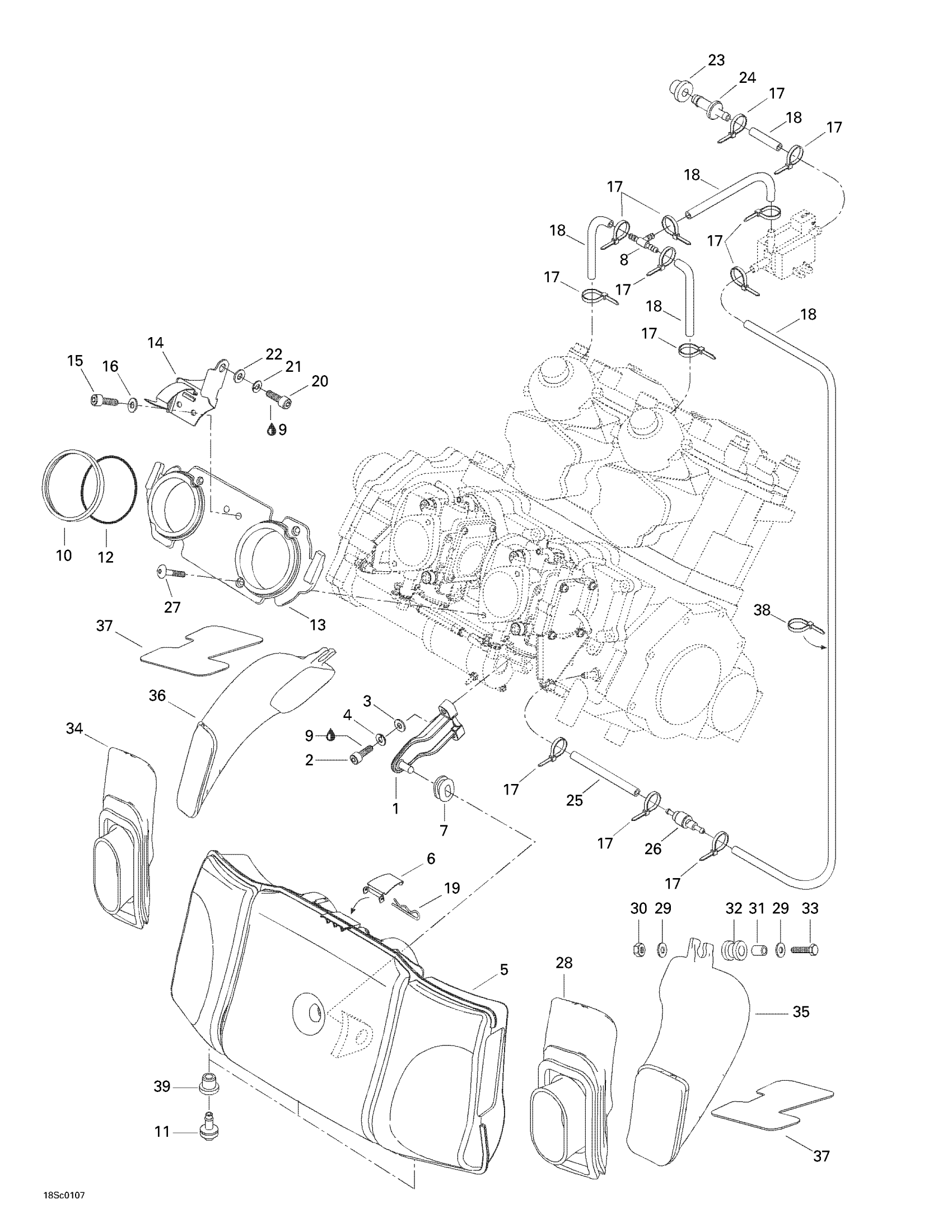

Sea-doo GTX, 5526/5527/5538/5539, 2001 02- Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$2.22

3

Stainless Flat Washer M6

234061600

$0.33

4

Lock Washer Helical M6

234161601

$1.15

5

Air Silencer

273000183

Unavailable

6

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

7

Cable Grommet

293720052

Unavailable

8

T-Fitting

293710068

$8.29

9

Loctite 243, 10 ml

293800060

$21.49

10

Gasket

293250122

$67.99

11

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

12

O-Ring

293250065

Unavailable

13

Air Silencer Adaptor

270500383

Unavailable

14

HOLDER - Call your local BRP dealership

270000455

Unavailable

15

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

16

Stainless Flat Washer M6

234061600

$0.33

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

19

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

20

Socket Head Screw M8 X 16

205081660

Unavailable

21

Lock Washer 8 mm, Stainless

234181601

$0.55

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

Grommet

293720029

$1.59

24

Fitting

293700031

Unavailable

25

Hose 6 Mm 15000Mm Long

219704360

$132.49

26

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

27

Screw

270500357

Unavailable

28

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

SPACER - Call your local BRP dealership

272000074

Unavailable

32

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

33

Hex. Screw M6 X 35

207063560

$2.22

34

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

35

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

36

High Air Duct, Mag

273000150

Unavailable

37

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

38

Tie Wrap 142 mm

293750002

$1.25

39

GROMMET - Call your local BRP dealership

293720064

Unavailable
