- GTX, 5526/5527/5538/5539, 2001
01- Engine Support And Muffler

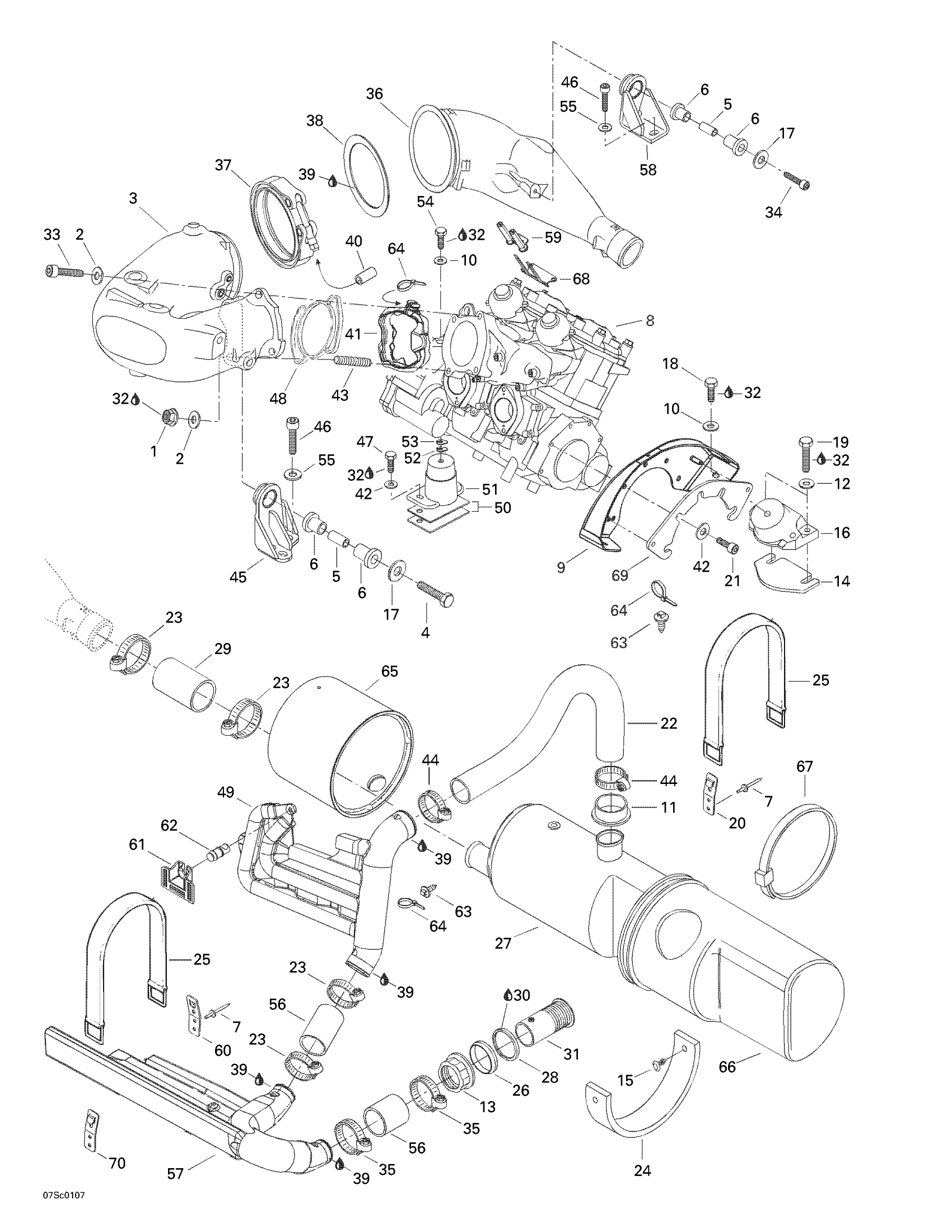

Sea-doo GTX, 5526/5527/5538/5539, 2001 01- Engine Support And Muffler Diagram
#
1
Hex. Flange Nut M10
233101600
$5.29
2
Flat Washer
211200051
$1.68
3
Head Pipe Ass'y | Includes 34 - 38.
274000928
Unavailable
4
HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership
245004060
Unavailable
5
BUSHING - Call your local BRP dealership
274000861
Unavailable
6
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
7
Avdel Rivet 3/16"
293150037
$0.56
8
Rotax Engine 947 (Silver)
270000522
Unavailable
9
Engine Support
270000359
Unavailable
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Hose Adaptor
274000766
Unavailable
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Nut 72 mm
274000224
$16.34
14
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
15
Black, Dart
414644300
$0.98
16
Rubber Mount, Black
270000421
Unavailable
17
Flat Washer 10 mm, Stainless
234002600
$2.22
18
Hex. Screw M8 X 16
207181660
Unavailable
19
Hex. Screw M8 X 40
207184060
$2.22
20
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
21
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
22
Exhaust Hose
274000711
Unavailable
23
Tridon Clamp
293650064
$8.29
24
Rubber Pad
293830069
Unavailable
25
Retainer Strap
293850097
$11.64
26
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
27
Muffler (Black)
274000749
Unavailable
28
GASKET - Call your local BRP dealership
293250041
Unavailable
29
EXHAUST HOSE - Call your local BRP dealership
274000530
Unavailable
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership
244003560
Unavailable
34
Hex. Screw M10 X 40, Scotch Grip
244004060
$4.86
35
Tridon Clamp
293650064
$8.29
36
EXHAUST CONE, BLACK - Call your local BRP dealership
274000871
Unavailable
37
EXHAUST CLAMP - Call your local BRP dealership
274000510
Unavailable
38
SEALING RING - Call your local BRP dealership
274000511
Unavailable
39
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
40
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
41
PICK UP ENVELOPE - Call your local BRP dealership
274000862
Unavailable
42
Stainless, Flat Washer 8 mm
234081600
$0.55
43
STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership
250300008
Unavailable
44
Tridon Clamp
293650179
$11.49
45
Pipe Support
274000890
Unavailable
46
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
244083060
Unavailable
47
Hex. Screw M8 X 40
207184060
$2.22
48
Exhaust Gasket
290931990
Unavailable
49
LH Resonator
274000655
Unavailable
50
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
51
Rubber Mount, Black
270000422
Unavailable
52
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
53
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
54
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
55
FLAT WASHER M8.4 - Call your local BRP dealership
250200012
Unavailable
56
Exhaust Hose
274000616
Unavailable
57
Resonator
295500683
Unavailable
58
Pipe Support
274000878
Unavailable
59
INSULATOR - Call your local BRP dealership
278001512
Unavailable
60
Strap Clip
293850030
$11.12
61
Pad Support
291001352
Unavailable
62
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
63
Mount Dart
293730040
$1.04
64
Tie Wrap 142 mm
293750002
$1.25
65
MUFFLER COVER, FRONT - Call your local BRP dealership
274000796
Unavailable
66
Muffler Cover, Rear
274000799
Unavailable
67
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
68
GROUND PLATE - Call your local BRP dealership
278001662
Unavailable
69
Gasket
293250110
Unavailable
70
Not Available As Spare Part - Friction Washer
Unavailable
