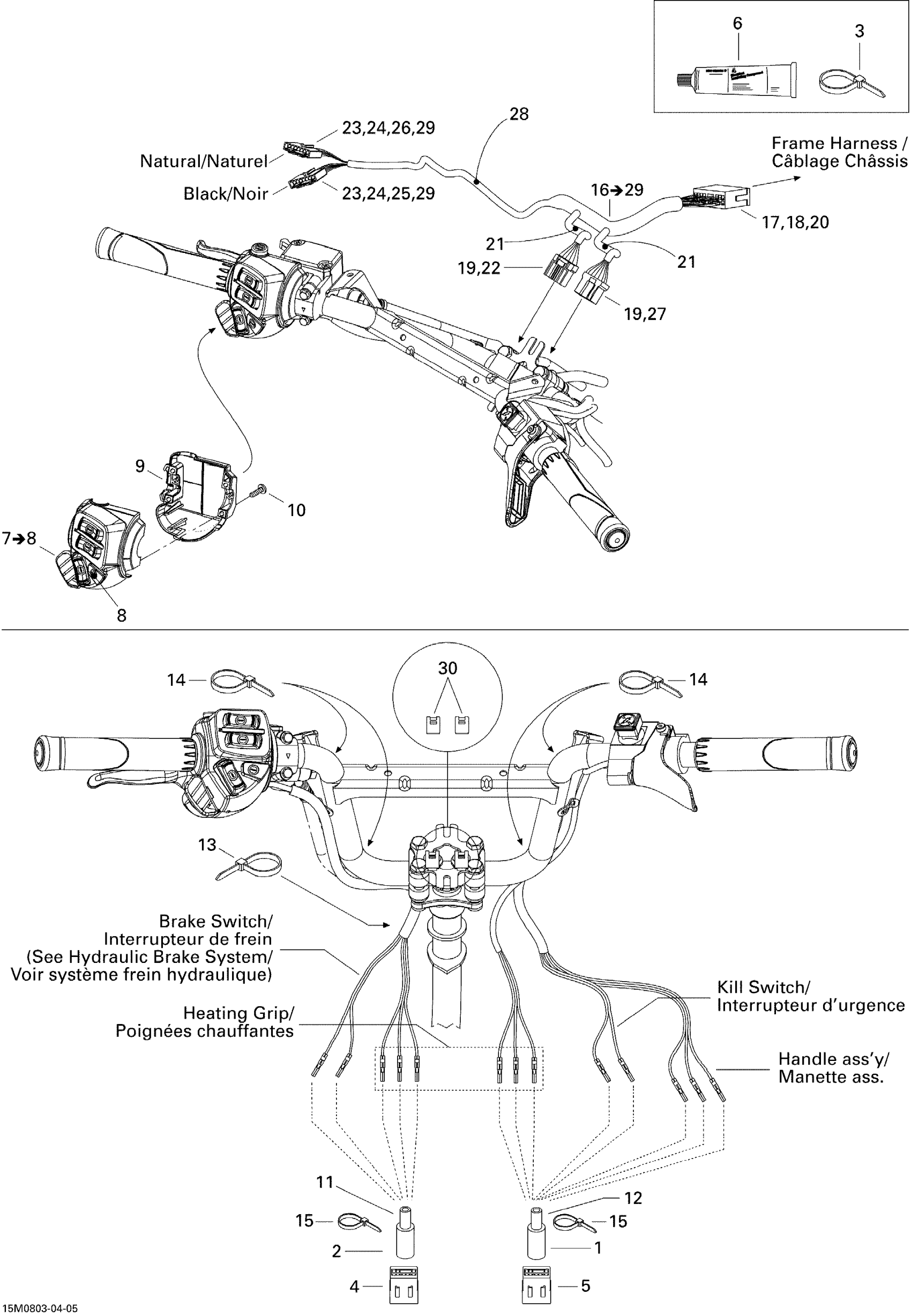

Ski-Doo GTX 550F, 2008 Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

3

Tie Wrap 368 mm

293750008

$0.97

4

Male Terminal Housing, 6 Circuits

515175662

$8.31

5

Male Terminal Housing, 8 Circuits

515175817

$8.31

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

LH Housing

515177021

$208.18

8

Start/RER Button

515176088

$17.88

9

Switch Housing Plate

515175926

$17.13

10

Torx Screw #8-18

250000263

$0.99

11

Tubing 25 MM 1000MM Long

219704402

$14.57

12

Tubing 25 MM 1000MM Long

219704402

$14.57

13

Tie Wrap 368 mm

293750008

$0.97

14

Tie-Rap 180 mm

414115200

$0.10

15

Tie Wrap 142 mm

293750002

$1.01

16

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 16 to 29

515176309

Unavailable

17

Male Terminal

515175232

$1.45

18

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

19

Female Terminal

515175231

$4.00

20

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

21

Tubing 10 MM 1000MM Long

219704407

$2.52

22

Female Terminal Housing, 6 Circuits

515175543

$8.31

23

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

24

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

25

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

26

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

27

Female Terminal Housing, 8 Circuits

515175819

$7.24

28

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

29

Female Terminal

515175941

$2.40

30

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable
