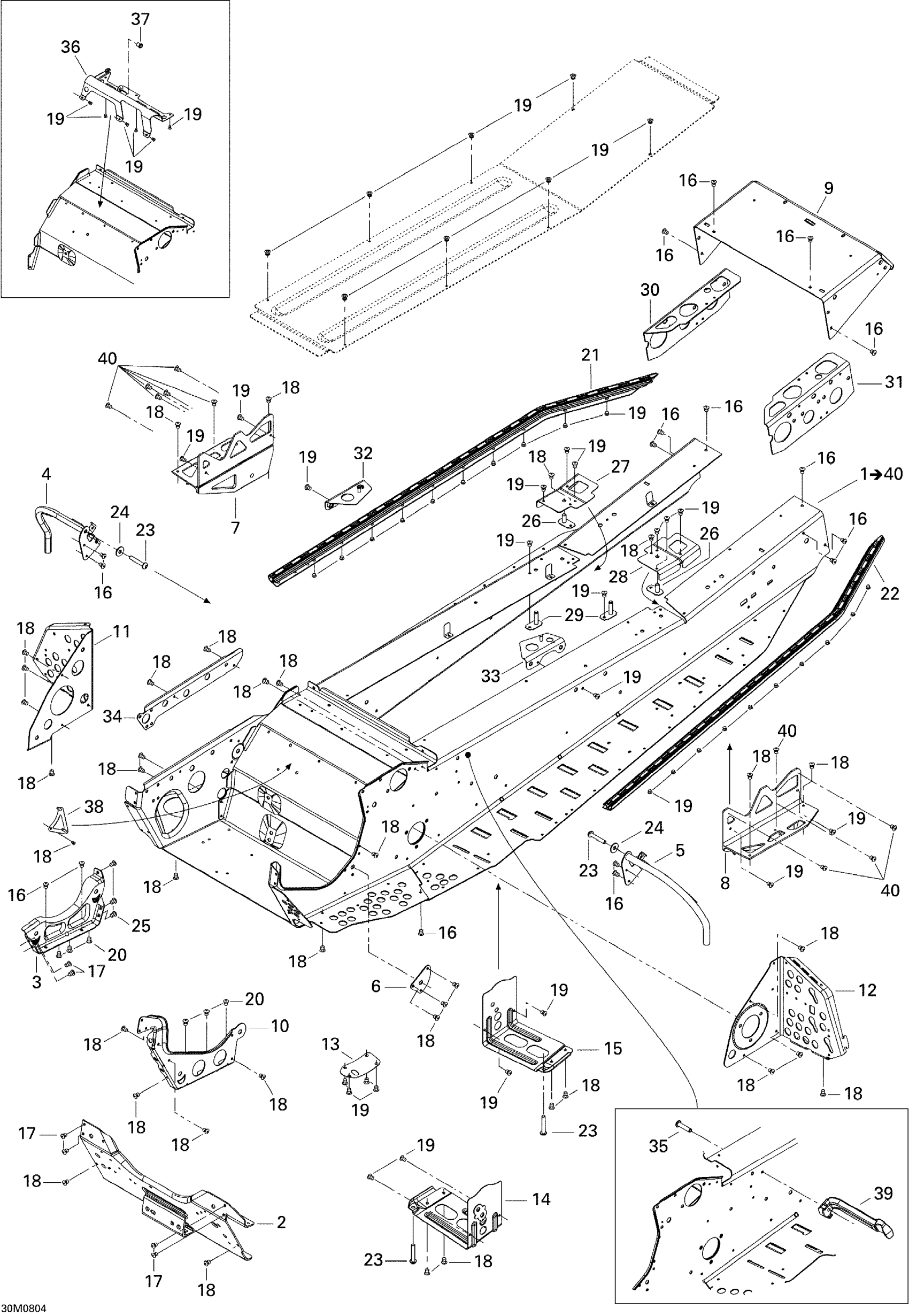

Ski-Doo GTX 550F, 2008 09- Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 to 40

415129306

Unavailable

2

FRONT PAN WELD - Call your local BRP dealership

518324114

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SUSPENSION BRACKET - Call your local BRP dealership

518325286

Unavailable

8

LH Suspension Bracket

518325287

Unavailable

9

REAR CAP - Call your local BRP dealership

518324561

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

RH FOOTREST - Call your local BRP dealership

518324433

Unavailable

15

LH FOOTREST - Call your local BRP dealership

518324435

Unavailable

16

Avex Rivet

390909200

$0.30

17

Avex Rivet

390909100

$0.30

18

Pop Rivet 3/16"

390402200

$0.35

19

Pop Rivet 3/16"

390402400

$0.35

20

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

21

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

22

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

23

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

24

Flat Washer 8 mm

234082410

$1.47

25

Hemlock Rivet, 6.5 mm

293150096

$3.27

26

SEAT BRACKET - Call your local BRP dealership

518324384

Unavailable

27

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

28

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

29

Tank Bracket

518322791

Unavailable

30

RH REINFORCEMENT - Call your local BRP dealership

518324959

Unavailable

31

LH Reinforcement

518324960

Unavailable

32

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

33

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

34

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable

35

Pop Rivet 3/16”

390410100

$0.57

36

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

37

Threaded Insert M6 X 1.0

250100242

Unavailable

38

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

Unavailable

39

Panel Latch

517302448

$14.99

40

Not Available As Spare Part - Friction Washer

Unavailable
