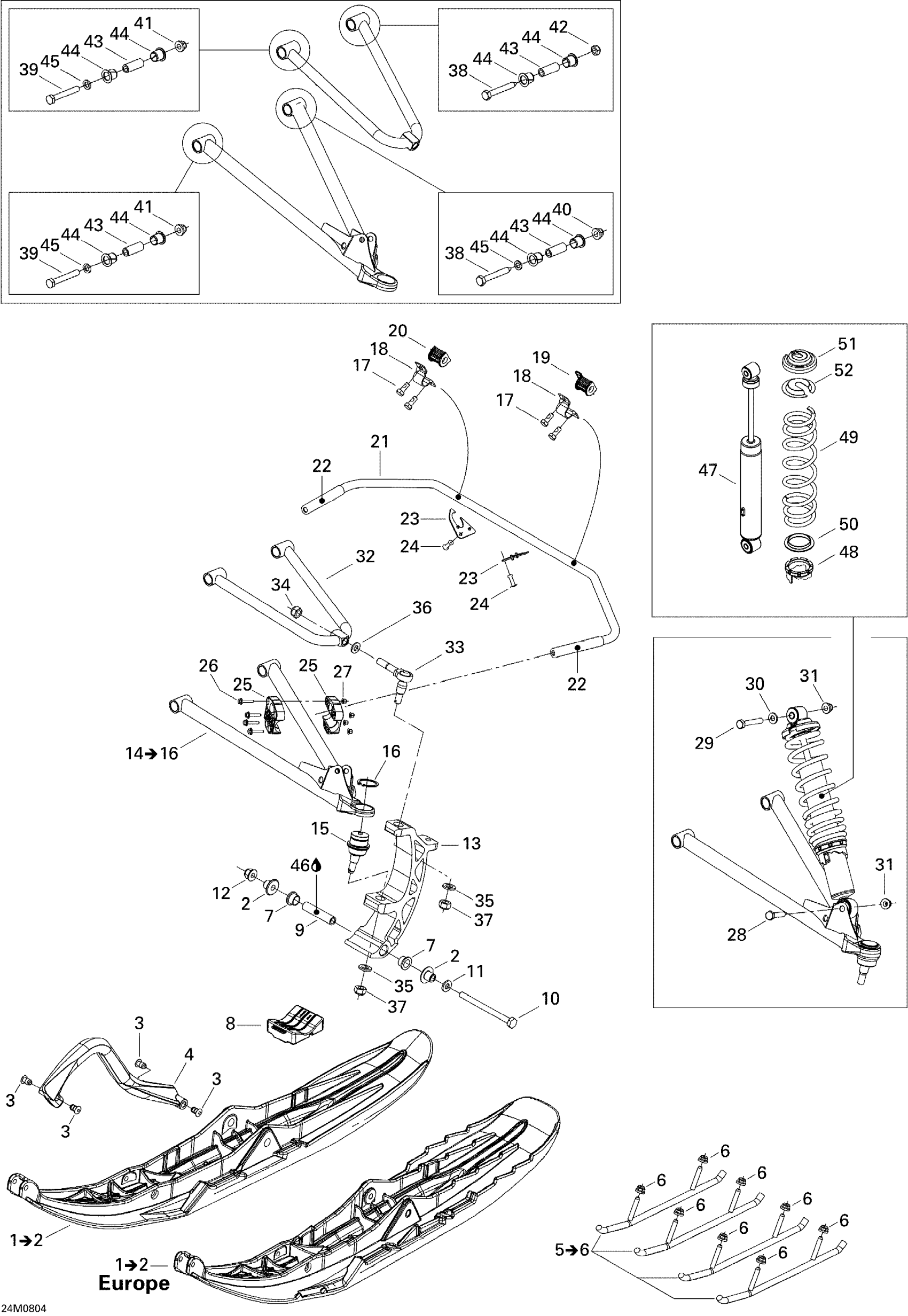

Ski-Doo GTX 550F, 2008 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$170.12

1

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$170.12

2

Ski Bushing

505071781

$14.90

3

Retainer 17mm long

505071812

$4.30

4

Black, Handle

505070963

$34.30

5

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

5

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

Spacer

506133300

$19.37

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$48.48

16

Circlip

293370035

$2.48

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.52

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

26

Hex. Flange Screw M5 X 25

207652544

$0.48

27

Hex. Flange Elastic Nut M5

233251414

$1.91

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.70

31

Hex. Flange Elastic Nut M10

233201414

$1.45

32

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

33

Upper Ball Joint

505072257

$16.39

34

Hex. Elastic Hex. Nut M12

250100089

$0.45

35

Flat Washer 12 mm

234021410

$0.66

36

Washer

503189276

$3.10

37

Hex. Elastic Hex. Nut M12

250100089

$0.45

38

Hex. Screw M10 X 75

250001063

$11.18

39

Hex. Screw M10 X 75

250001063

$11.18

40

Hex. Flange Elastic Nut M10

250100165

$0.81

41

Hex. Flange Elastic Nut M10

250100165

$0.81

42

Hex. Flange Elastic Nut M10

250100165

$0.81

42

Elastic Flange Nut M10

232501416

$1.43

43

Bushing

505070567

$19.37

44

Arm Bushing

505070566

$3.04

45

Washer

503189564

$0.70

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

48

Adjustment Cam

505073625

$11.82

49

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

50

Spring Guide

503187500

$8.46

51

Spring Stopper

706200881

$11.82
