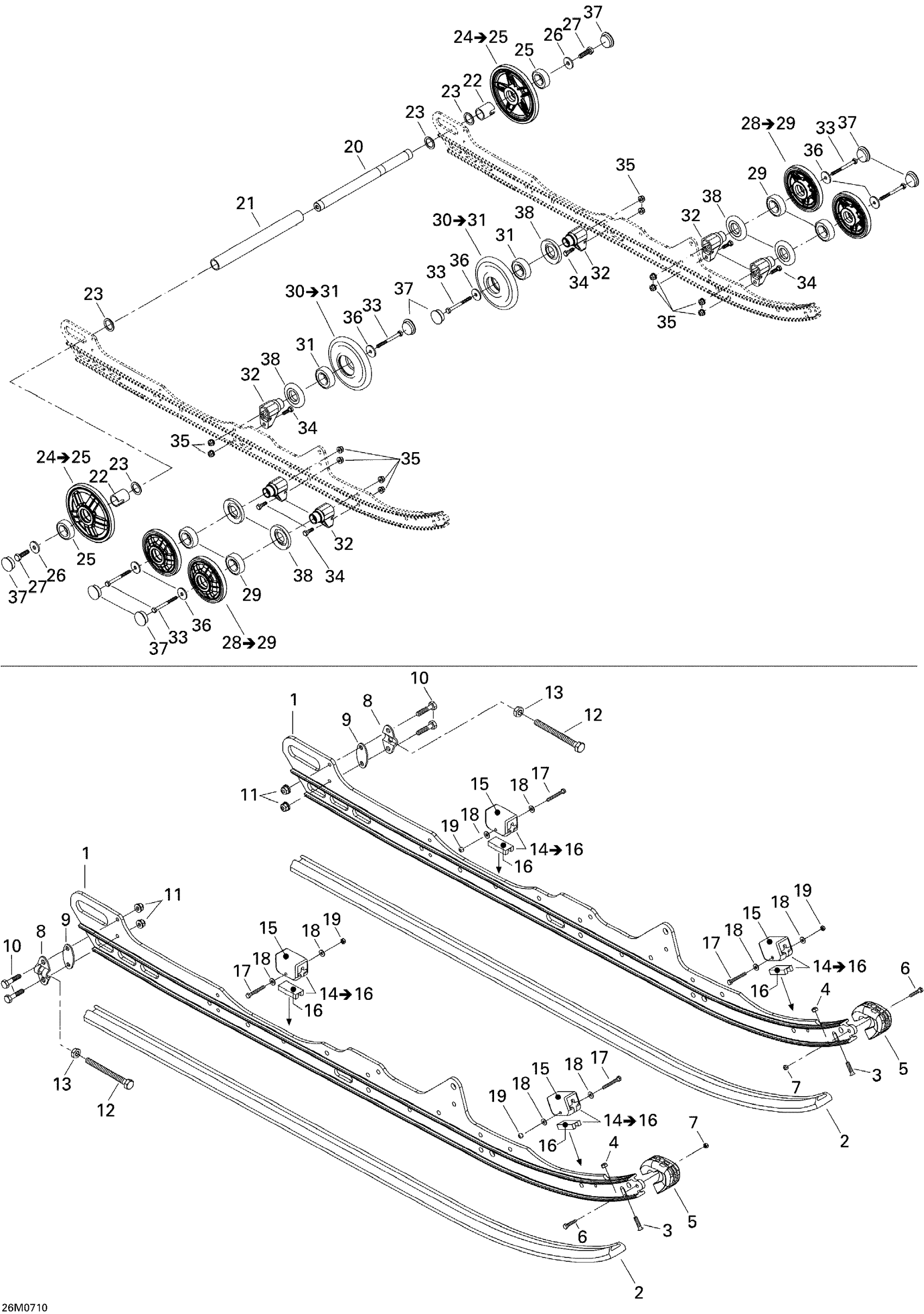

Ski-Doo GTX 550F, 2007 Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION 136 MACHINED - Call your local BRP dealership

503191107

Unavailable

2

Slide Shoe

605355362

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Tensioner

503155300

Unavailable

9

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

10

Hex. Screw M6 X 30

207063044

$1.12

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.63

14

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

15

Rubber Stopper

570063000

Unavailable

16

Reinforcement Stopper

572084800

$5.09

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Elastic Stop Nut M5

232551414

$0.82

20

Rear Axle

503190429

$58.18

21

Spacer

503191108

$14.90

22

Rear Wheel Spacer

503190428

$5.88

23

Washer

503190432

$12.15

24

Wheel 165 mm, Full Moon

503191110

$48.48

25

Ball Bearing | Package-STD

503190396

$8.18

26

Washer

503190439

$5.64

27

Hex. Screw With Nylon

250000019

$1.63

28

Wheel 141 With Pattern Ass'y, Full Moon

503191313

$35.04

29

Ball Bearing | Package-STD

503190396

$8.18

30

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$35.04

31

Ball Bearing | Package-STD

503190396

$8.18

32

Support

503190580

Unavailable

33

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

34

Hex. Screw M8 X 25

207182544

$0.85

35

Hex. Flange Elastic Nut M8

233281414

$1.31

36

Washer

211200041

$3.01

37

Wheel Cap

570063600

$3.18

38

Labyrinth Seal

503190434

$4.16
