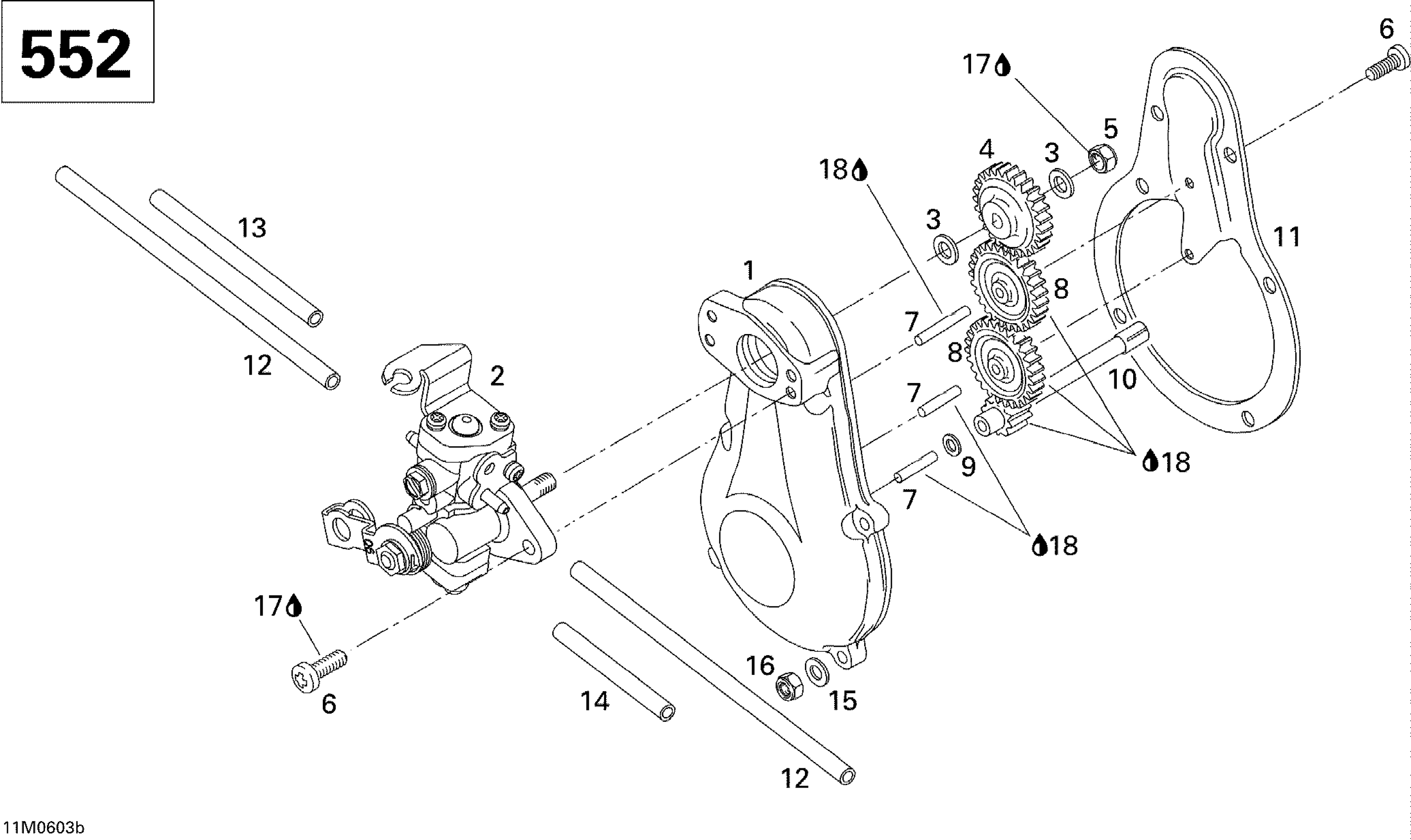

Ski-Doo GTX 550F, 2006 02- Oil Pump 552 Diagram

#

Description
Price

1

FLANGED PUMP - Call your local BRP dealership

420810110

Unavailable

2

Oil Pump Ass'y

420889072

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$16.33

5

Elastic Stop Nut M6

232561414

$0.55

6

Screw

420841971

$2.96

7

Needle Pin

420232420

$4.01

8

OIL PUMP GEAR - Call your local BRP dealership

420834210

Unavailable

9

Flat Washer 4

420244072

$1.01

10

Gear, 9 Teeth

420935970

$15.89

11

FLANGED PUMP - Call your local BRP dealership

420810122

Unavailable

12

Oil Hose 1500Mm Long

219704404

$17.26

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

Hose 6 Mm 15000Mm Long

219704360

$132.49

15

WASHER - Call your local BRP dealership

420827800

Unavailable

16

NUT M5 - Call your local BRP dealership

420942025

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Dow Corning 111, 150 g

413707000

$59.99
