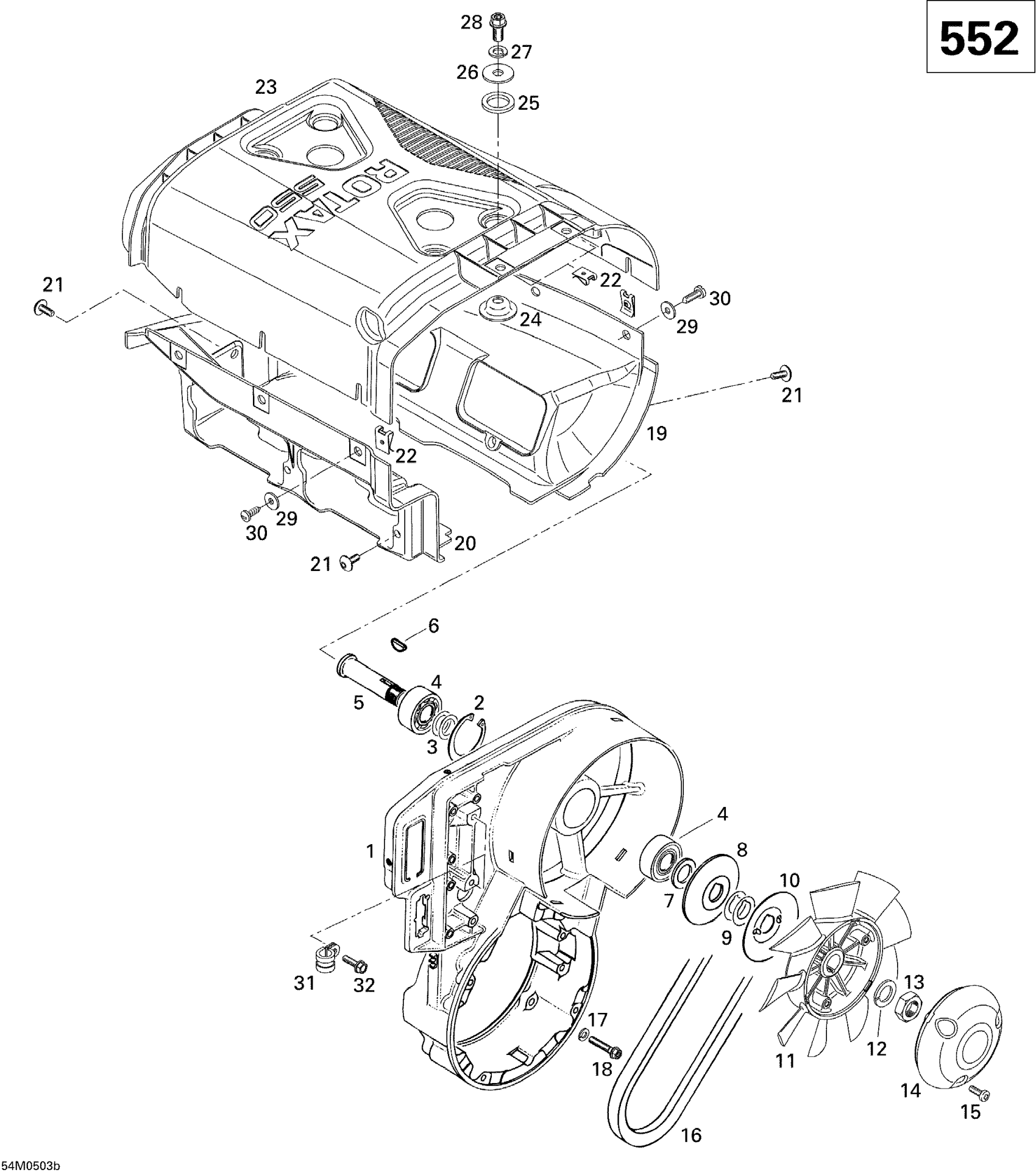

Ski-Doo GTX 550F, 2005 01- Fan 552 Diagram

Fan Housing This part replaces 420912203.

420912230

$476.49

Lock Ring

420945880

$4.44

Shim

420244585

$1.90

Ball Bearing

420832161

$35.99

Fan Axle This part replaces 420937940.

420937941

$14.28

Woodruff Key

420246015

$3.17

Spacer Bushing

420827650

$13.16

Flange

420980496

$14.28

Shim 0.5 mm

420827080

$2.11

Shim 0.2 mm

420827082

$3.17

Protection Washer

420980523

$13.16

Fan

420866294

$96.49

Lock Washer

420945756

$3.17

Nut M16 This part replaces 420942285.

420942289

$10.33

Fan Cover

420975900

$14.28

Screw

420841971

$2.96

V-Belt

414630800

$24.99

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

Torx Flange Screw M6 X 30

420440647

$2.00

Lower Cowling | 550 F.

420811392

$190.49

LOWER COWLING - Call your local BRP dealership

420812600

Unavailable

Torx Screw M6 X 16

420640324

$2.11

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

CYLINDER COWL - Call your local BRP dealership

420812596

Unavailable

Cup Washer

420827817

$14.28

Rubber Washer

420960865

$2.11

Washer This part replaces 420227935.

420227936

$3.38

Washer-Lock Din.128

420945832

$1.15

Torx Flange Screw M8 X 16

420440852

$4.12

Hex Head Tapping Screw + Washer 4.8X16 This part replaces 420926185.

420841492

$1.90

Tapping Screw M4.8 X 16

417300006

$0.72

Clamp

420851250

$10.33

Taptite Screw M5 X 16

420941928

Unavailable
