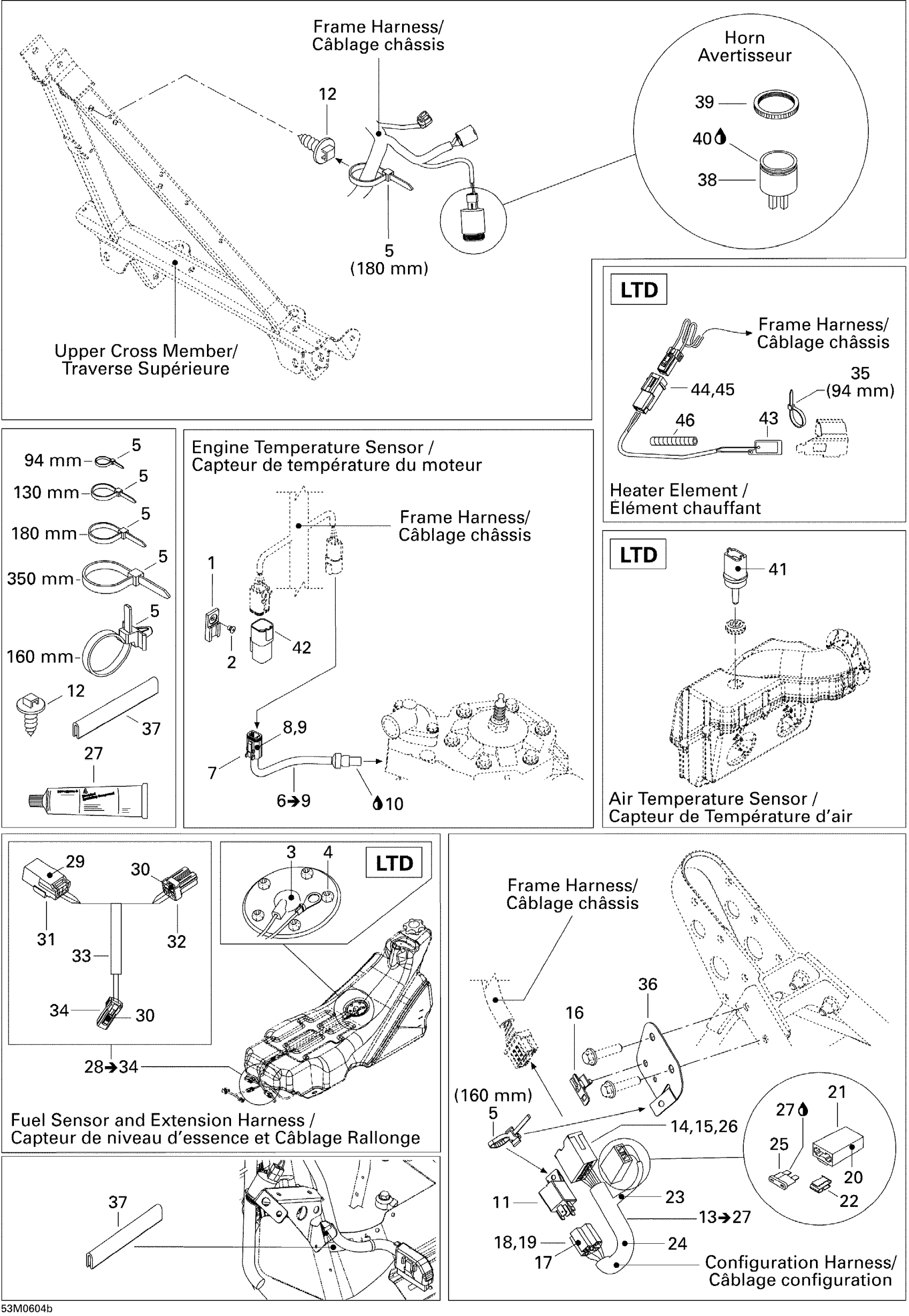

Ski-Doo GTX 500SS, 2006 10- Electrical Accessories Sport 2 Diagram

#

Description
Price

1

Clip

270000141

$11.49

2

Avdel Rivet 3/16"

293150037

$0.56

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Tie Wrap 94 mm | 4X4

293750001

$1.03

5

Tie Wrap 142 mm

293750002

$1.25

5

Tie-Rap 180 mm

414115200

$0.11

5

Tie Wrap 368 mm

293750008

$1.04

5

Tie-Rap 173 mm

293750009

$1.04

6

Temperature Sensor This part replaces 515176043.

515177835

$92.99

7

Male Connector, 4 Circuits | CE

278000739

$19.49

8

Female Terminal

278000632

$2.09

9

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

10

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

11

Relay | DS 650 X

710010053

$23.49

12

Mount Dart

293730040

$1.04

13

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.99

14

Male Terminal

515175232

$1.58

15

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

16

Housing Support

515175283

$9.19

17

Female Housing, 5 Circuits

409209900

$9.59

18

Female Terminal

561503100

$2.41

19

Female Terminal

561503100

$2.41

20

Female Terminal

409011600

$5.39

21

Fuse Holder

409004000

$8.09

22

CLIP - Call your local BRP dealership

409014200

Unavailable

23

Tubing 6 Mm 3000Mm Long

219704425

$13.75

24

Was 409901800 Tubing (13 mm)

219704400

$14.49

25

Fuse, 5 Amperes | CE

278000344

$3.28

26

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

EXTENSION HARNESS - Call your local BRP dealership | Includes 26 to 32

515176171

Unavailable

29

Male Terminal

515175232

$1.58

30

Female Terminal

515175231

$4.39

31

Male Housing, 3 Circuits

515175494

$16.18

32

Female Housing, 3 Circuits

515175495

$16.18

33

Tubing 6 Mm 3000Mm Long

219704425

$13.75

34

Female Housing, 2 Circuits

515175658

$16.18

35

Not Available As Spare Parts

XXX

Unavailable

36

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

37

Was 271000110 Protection Trim

219704353

$15.99

38

HORN - Call your local BRP dealership

515176035

Unavailable

39

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

40

Silicone Sealant 51388, 300 ml

296000309

$36.99

41

Not Available As Spare Parts

XXX

Unavailable

42

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable
