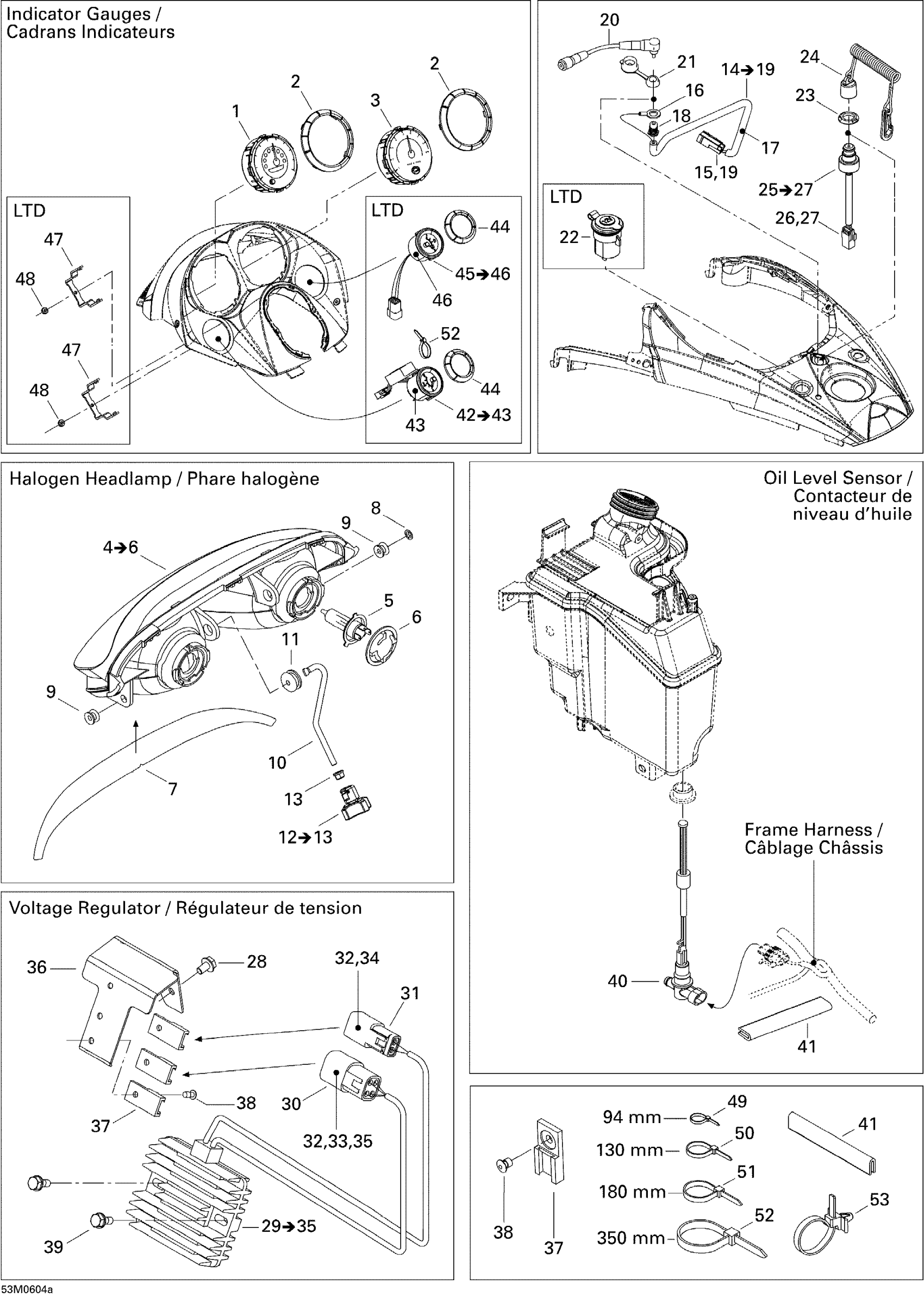

Ski-Doo GTX 500SS, 2006 10- Electrical Accessories Sport 1 Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176302

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

TACHOMETER - Call your local BRP dealership

515176303

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

$2.19

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Visor Harness

515177837

$33.99

15

Male Terminal

515175232

$1.58

16

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

17

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

18

Visor Plug

415096100

Unavailable

19

Male Terminal Housing, 2 Circuits

515175654

$9.12

20

Extension

515175851

$11.12

21

Cap

572103300

$10.49

22

Not Available As Spare Parts

XXX

Unavailable

23

Safety Nut (DESS Switch)

278002963

$3.28

24

DESS

515178284

$84.99

25

DESS Switch

515177249

$114.99

26

Male Terminal

515175232

$1.58

27

Male Housing, 3 Circuits

515175494

$16.18

28

Hex. Forming Screw M6 X 10

210261050

$1.69

29

Voltage Regulator

515175968

$238.49

30

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

31

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

32

Male Terminal

515175568

$9.12

33

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

34

Male Lock, 2 Circuits

278001672

$3.49

35

Sealing Cap

293000052

$3.19

36

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

37

Clip

270000141

$11.49

38

Avdel Rivet 3/16"

293150037

$0.56

39

Hexagonal Head Screw

210262050

$2.11

40

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

41

TRIM - Call your local BRP dealership

509000263

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Tie Wrap 94 mm | 4X4

293750001

$1.03

50

Tie Wrap 142 mm

293750002

$1.25

51

Tie-Rap 180 mm

414115200

$0.11

52

Tie Wrap 368 mm

293750008

$1.04

53

Tie-Rap 173 mm

293750009

$1.04
