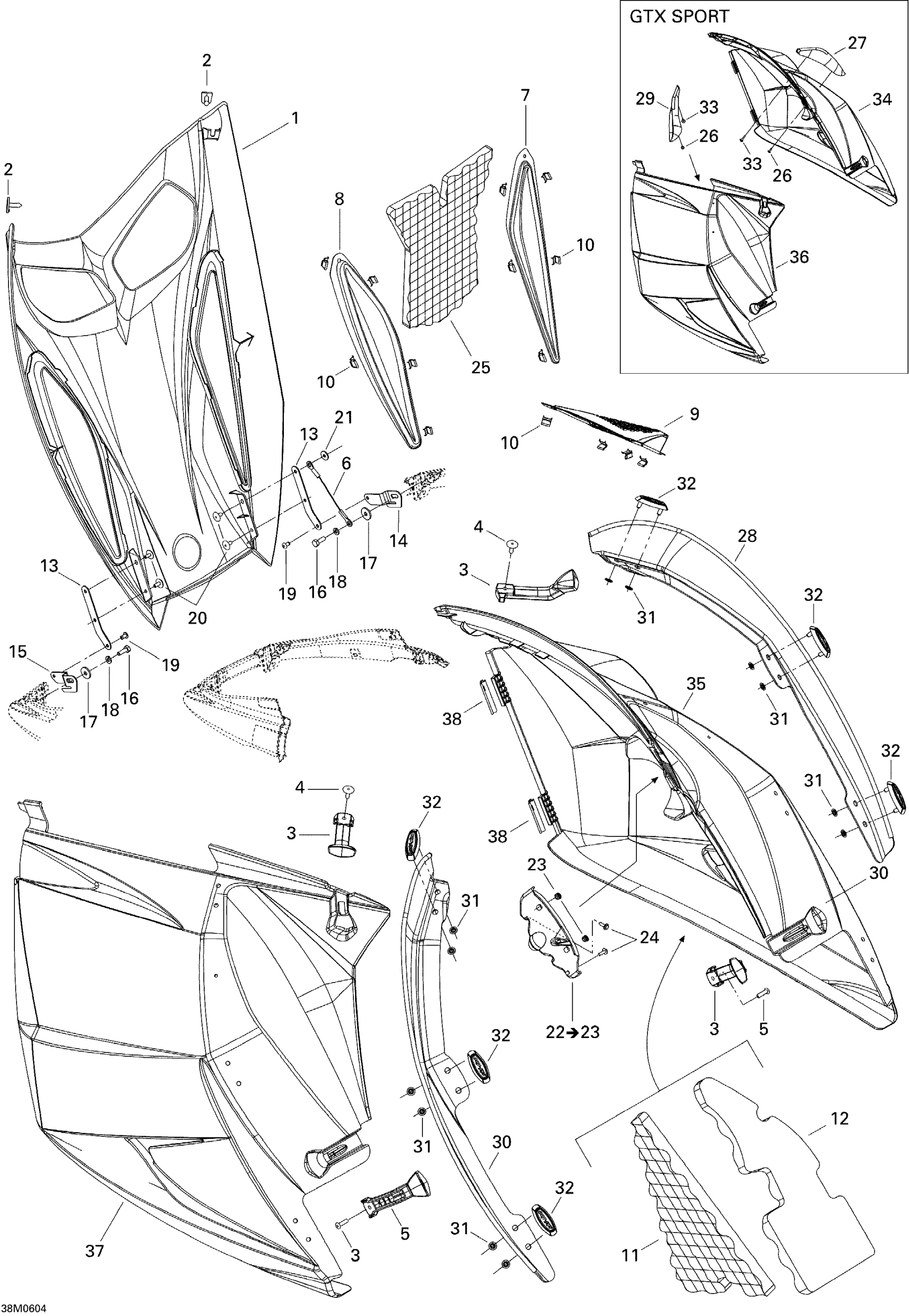

Ski-Doo GTX 500SS, 2006 09- Hood SPORT Diagram

#

Description
Price

1

Hood, Black

517302788

$234.99

1

Hood, Silver, B-243 | Sport & LTD

517302964

$339.99

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

$14.99

4

Pop Rivet 3/16”

293150087

$0.93

5

Pop Rivet 3/16”

390410100

$0.57

6

RETAINER CABLE - Call your local BRP dealership

517302673

Unavailable

7

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

8

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

9

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

10

CLIP - Call your local BRP dealership

517302789

Unavailable

11

RH PANEL FRONT FOAM - Call your local BRP dealership

517303082

Unavailable

12

RH PANEL REAR FOAM - Call your local BRP dealership

517303492

Unavailable

13

UPPER HALF-HINGE - Call your local BRP dealership

517302544

Unavailable

14

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

15

LH Lower Half-Hinge

517302445

Unavailable

16

Hex. Screw M6 X 18

207161844

$0.76

17

Flat Washer

224061121

$0.53

18

Lock Washer M6, Black

234161471

$0.53

19

Avex Rivet

390909200

$0.30

20

Pop Rivet 3/16"

390406500

$0.88

21

Flat Washer

517225900

$0.18

22

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

23

Black, Cap

275500241

$3.49

24

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

25

HOOD FOAM - Call your local BRP dealership

517303081

Unavailable

26

Phillips Screw K40 X 16

250000723

$0.98

27

RH AIR DEFLECTOR - Call your local BRP dealership

517302800

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

LH AIR DEFLECTOR - Call your local BRP dealership

517302801

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

34

Deep Black, RH Panel | Black/Black

517303179

Unavailable

34

RH PANEL, LABRADOR BLUE, B-226 - Call your local BRP dealership | Labrador Blue

517303181

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

LH PANEL, BLACK, B-160 - Call your local BRP dealership | Black/Black

517302803

Unavailable

36

LH PANEL, LABRADOR BLUE, B-226 - Call your local BRP dealership | Labrador Blue

517303042

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Hinge Lock

517302823

$13.99
