Description

Price

1

Engine 593 | 500 SS

400509766

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$14.49

3

Tubing 10 MM 1000MM Long

219704407

$2.79

4

Tie Wrap 142 mm

293750002

$1.25

5

ENGINE SUPPORT ASS'Y - Call your local BRP dealership | Includes 5 to 6

512060047

Unavailable

6

Rubber Mount

512059691

$47.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Flat Washer M10 | 4X4

250200014

$1.49

12

Socket Head Screw M10 X 25

205002544

$1.48

13

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

14

PLATE - Call your local BRP dealership

512059840

Unavailable

15

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

16

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

17

STOPPER - Call your local BRP dealership

512059610

Unavailable

18

WASHER - Call your local BRP dealership

512059057

Unavailable

19

Hex. Jam Nut M14

232170411

$1.48

20

Carburetor Kit TM40-B352Z1

403138788

Unavailable

21

Gemi Clamp

512059835

$11.60

22

Spark Plug NGK BR9ECS-5

512059552

$10.59

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

24

Ignition Coil

512059968

$51.99

25

Plastic Clip, Spark Plug Wire

410914600

$5.61

26

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

$57.99

27

Cable Ass’y, 375 mm

512059696

$80.99

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Tie-Rap 180 mm

414115200

$0.11

30

Hex. Screw M6 X 60

207066044

$0.67

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

33

Spacer

517203200

$16.18

34

Starter Grip

572084400

$14.83

35

Not Available As Spare Parts

XXX

Unavailable

36

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

37

TUBE - Call your local BRP dealership

512059536

Unavailable

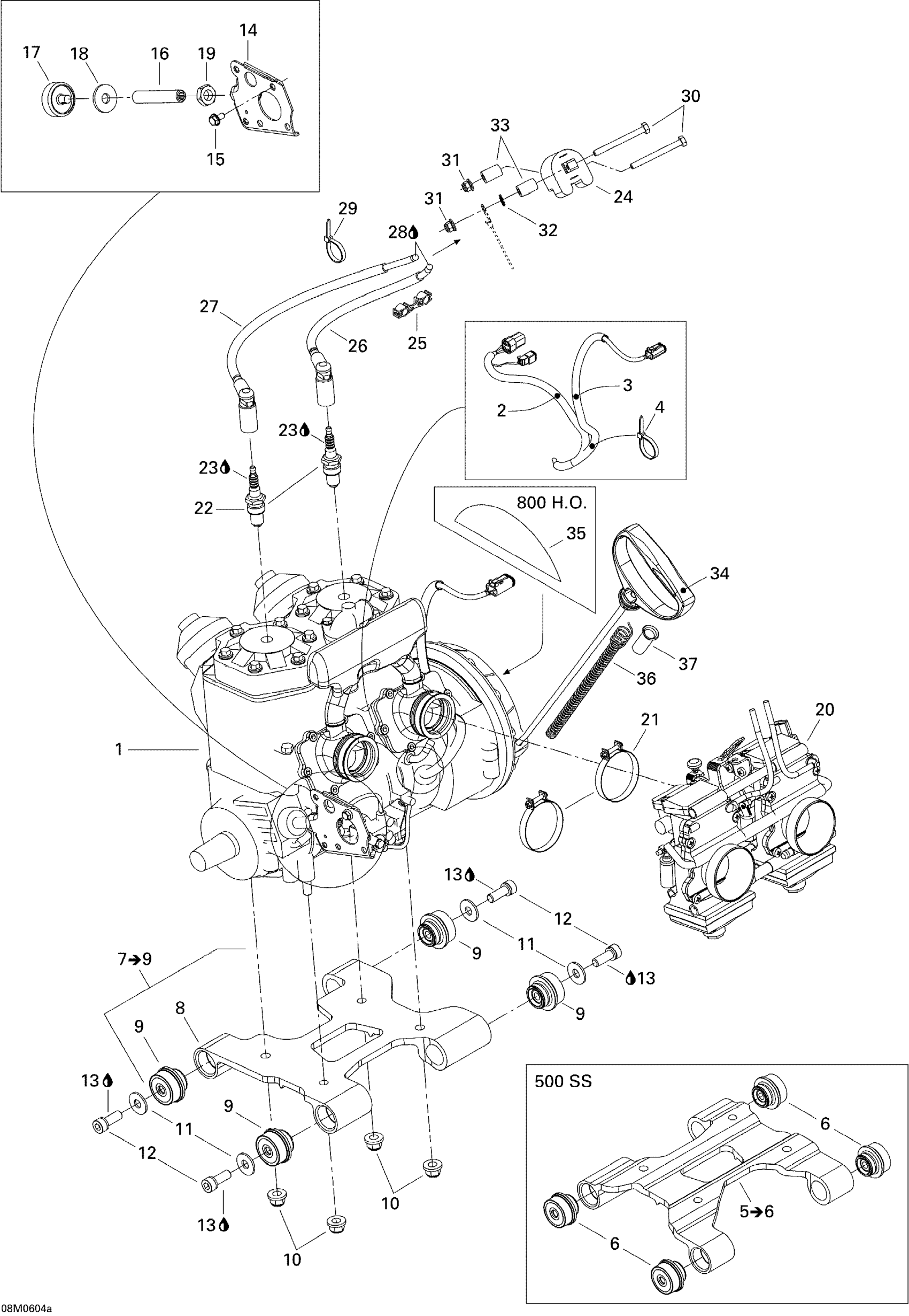

Ski-Doo GTX 500SS, 2006 01- Engine Sport 1 Diagram

Engine 593 | 500 SS

Was 409901800 Tubing (13 mm)

Tubing 10 MM 1000MM Long

Tie Wrap 142 mm

ENGINE SUPPORT ASS'Y - Call your local BRP dealership | Includes 5 to 6

Rubber Mount

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Hex. Flange Elastic Nut M10

Flat Washer M10 | 4X4

Socket Head Screw M10 X 25

Sealant LOCTITE 222MS - Call your local BRP dealership

PLATE - Call your local BRP dealership

Hex. Flange Screw M6 X 12, Scotch Grip

STOPPER SCREW - Call your local BRP dealership

STOPPER - Call your local BRP dealership

WASHER - Call your local BRP dealership

Hex. Jam Nut M14

Carburetor Kit TM40-B352Z1

Gemi Clamp

Spark Plug NGK BR9ECS-5

Was 293550004 Dielectric Grease, 150 g

Ignition Coil

Plastic Clip, Spark Plug Wire

CABLE ASSY, 300 MM - Call your local BRP dealership

Cable Ass’y, 375 mm

Was 293550004 Dielectric Grease, 150 g

Tie-Rap 180 mm

Hex. Screw M6 X 60

Hex. Flange Elastic Nut M6 x 1.0

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

Spacer

Starter Grip

Not Available As Spare Parts

ROPE GUIDE - Call your local BRP dealership

TUBE - Call your local BRP dealership
