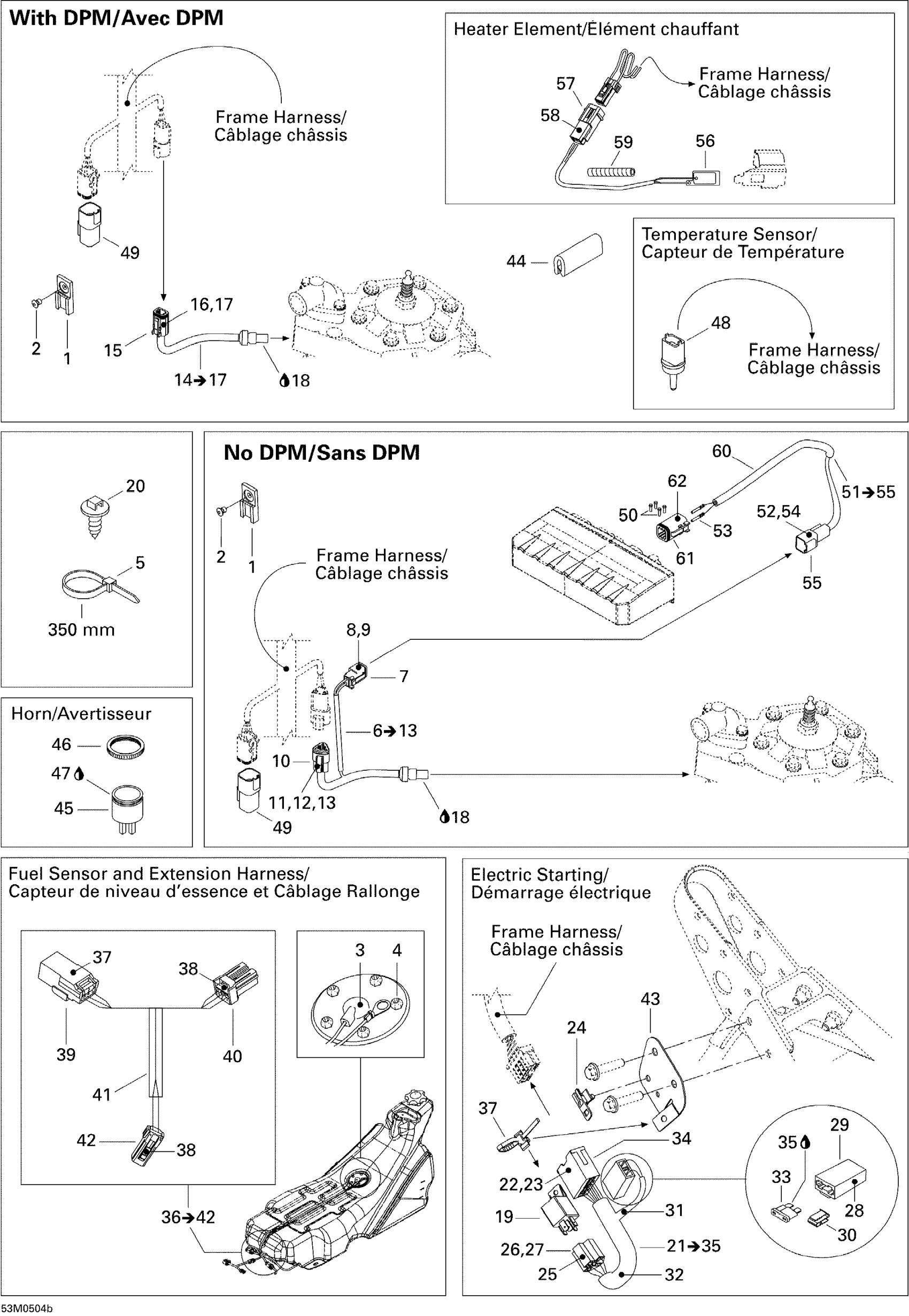

Ski-Doo GTX 500SS, 2005 10- Electrical Accessories 2 (500SS) Diagram

#

Description
Price

1

Clip

270000141

$11.49

2

Avdel Rivet 3/16"

293150037

$0.56

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Tie Wrap 368 mm

293750008

$1.04

6

TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT

515176041

Unavailable

7

Female Terminal Housing, 2 Circuits

515175670

$8.39

8

Female Terminal

278000632

$2.09

9

Female Lock, 2 Circuits

515175675

$4.55

10

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

11

Female Terminal

278000632

$2.09

12

Female Lock, 3 Circuits

515175676

$5.39

13

Sealing Cap

293000052

$3.19

14

Not Available As Spare Parts

XXX

Unavailable

15

Male Connector, 4 Circuits | CE

278000739

$19.49

16

Female Terminal

278000632

$2.09

17

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

18

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

19

Relay | DS 650 X

710010053

$23.49

20

Mount Dart

293730040

$1.04

21

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.99

22

Male Terminal

515175232

$1.58

23

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

24

Housing Support

515175283

$9.19

25

Female Housing, 5 Circuits

409209900

$9.59

26

Female Terminal

561503100

$2.41

27

Female Terminal

561503100

$2.41

28

Female Terminal

409011600

$5.39

29

Fuse Holder

409004000

$8.09

30

CLIP - Call your local BRP dealership

409014200

Unavailable

31

Tubing 6 Mm 3000Mm Long

219704425

$13.75

32

Was 409901800 Tubing (13 mm)

219704400

$14.49

33

Fuse, 5 Amperes | CE

278000344

$3.28

34

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

EXTENSION HARNESS - Call your local BRP dealership | Includes 26 to 32

515176171

Unavailable

37

Male Terminal

515175232

$1.58

38

Female Terminal

515175231

$4.39

39

Male Housing, 3 Circuits

515175494

$16.18

40

Female Housing, 3 Circuits

515175495

$16.18

41

Tubing 6 Mm 3000Mm Long

219704425

$13.75

42

Female Housing, 2 Circuits

515175658

$16.18

43

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

47

Silicone Sealant 51388, 300 ml

296000309

$36.99

48

Not Available As Spare Parts

XXX

Unavailable

49

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

50

Sealing Cap

293000052

$3.19

51

Sensor Harness | Includes 25 - 29.

515175822

Unavailable

52

Male Terminal

278000631

$4.39

53

Female Terminal

278000632

$2.09

54

Male Lock, 2 Circuits

409207500

$3.19

55

Male Terminal Housing, 2 Circuits

515175665

$9.29

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

61

Male Housing, 6 Circuits

515175673

$15.49

62

Male Wedge, 6 Circuits

515175678

$5.39
