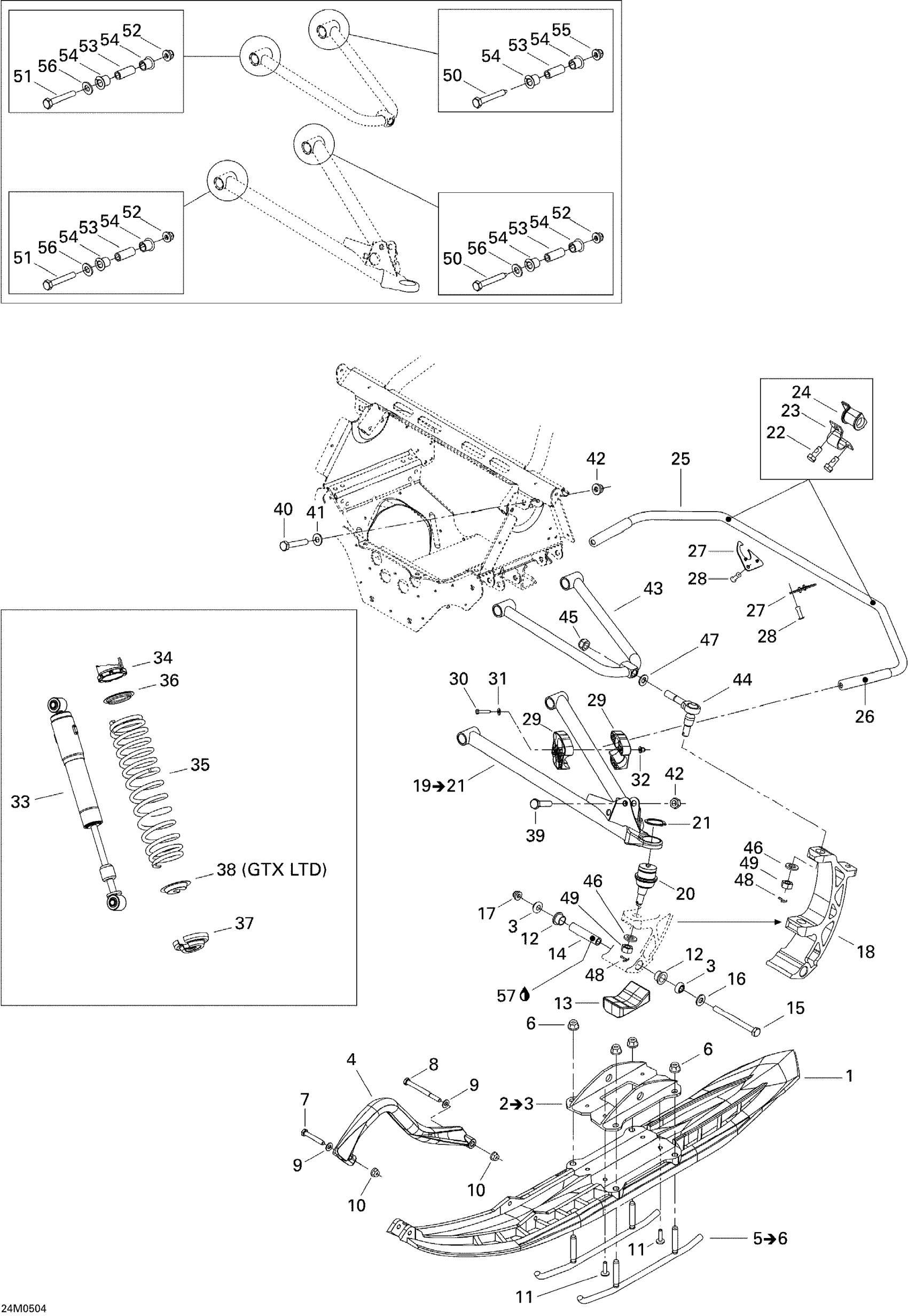

Ski-Doo GTX 500SS, 2005 Front Suspension And Ski 500SS Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

$106.69

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$34.30

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$135.79

6

Hex. Flange Elastic Nut M10

233201414

$1.45

7

Hex. Screw M8 X 50

207085044

$1.43

8

Hex. Screw M8 X 90

207089044

$3.24

9

Flat Washer 8 mm

234081410

$0.79

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

$5.75

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

$19.37

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

$0.55

17

Flange Nut M10

732610084

$6.30

18

SKI LEG - Call your local BRP dealership

505071232

Unavailable

19

RH Lower Arm Ass'y | Includes 14 to 16

860510100

Unavailable

19

LH Lower Arm Ass'y | Includes 14 to 16

860510000

Unavailable

20

Ball Joint

505071658

Unavailable

21

Circlip

293370035

$2.48

22

Hex. Screw With Nylon

250000118

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

LH BUSHING, 5/8? - Call your local BRP dealership

505070665

Unavailable

24

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

25

Stabilisator, 5/8”

505070659

Unavailable

26

STABILISATOR BOOT, 5/8? - Call your local BRP dealership

505070750

Unavailable

27

PLUG - Call your local BRP dealership

505071253

Unavailable

28

Pop Rivet 3/16"

293150103

$0.52

29

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

29

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

30

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

31

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

32

Hex. Flange Elastic Nut M5

233251414

$1.91

33

Front Shock | Sport

505071202

Unavailable

34

Adjustment Cam

505073625

$11.82

35

Spring

505071264

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Spring Guide

503187500

$8.46

37

Spring Stopper

706200881

$11.82

38

Not Available As Spare Parts

XXX

Unavailable

39

Hex. Screw M10 X 55

207005544

$2.12

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

Washer

503189564

$0.70

42

Hex. Flange Elastic Nut M10

233201414

$1.45

43

UPPER ARM - Call your local BRP dealership

505071727

Unavailable

44

Upper Ball Joint

505072257

$16.39

45

Hex. Flange Elastic Nut M12

250000047

$1.79

46

Flat Washer 12 mm

234021410

$0.66

47

Washer

503189276

$3.10

48

Cotter Pin

211400017

$0.28

49

Hex. Castellated Nut M12

232221414

$3.00

50

Hex. Screw M10 X 75

250001063

$11.18

51

Hex. Screw M10 X 75

250001063

$11.18

52

Hex. Flange Elastic Nut M10

250100165

$0.81

53

Bushing

505070567

$19.37

54

Arm Bushing

505070566

$3.04

55

Elastic Flange Nut M10

232501416

$1.43

56

Washer

503189564

$0.70

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
