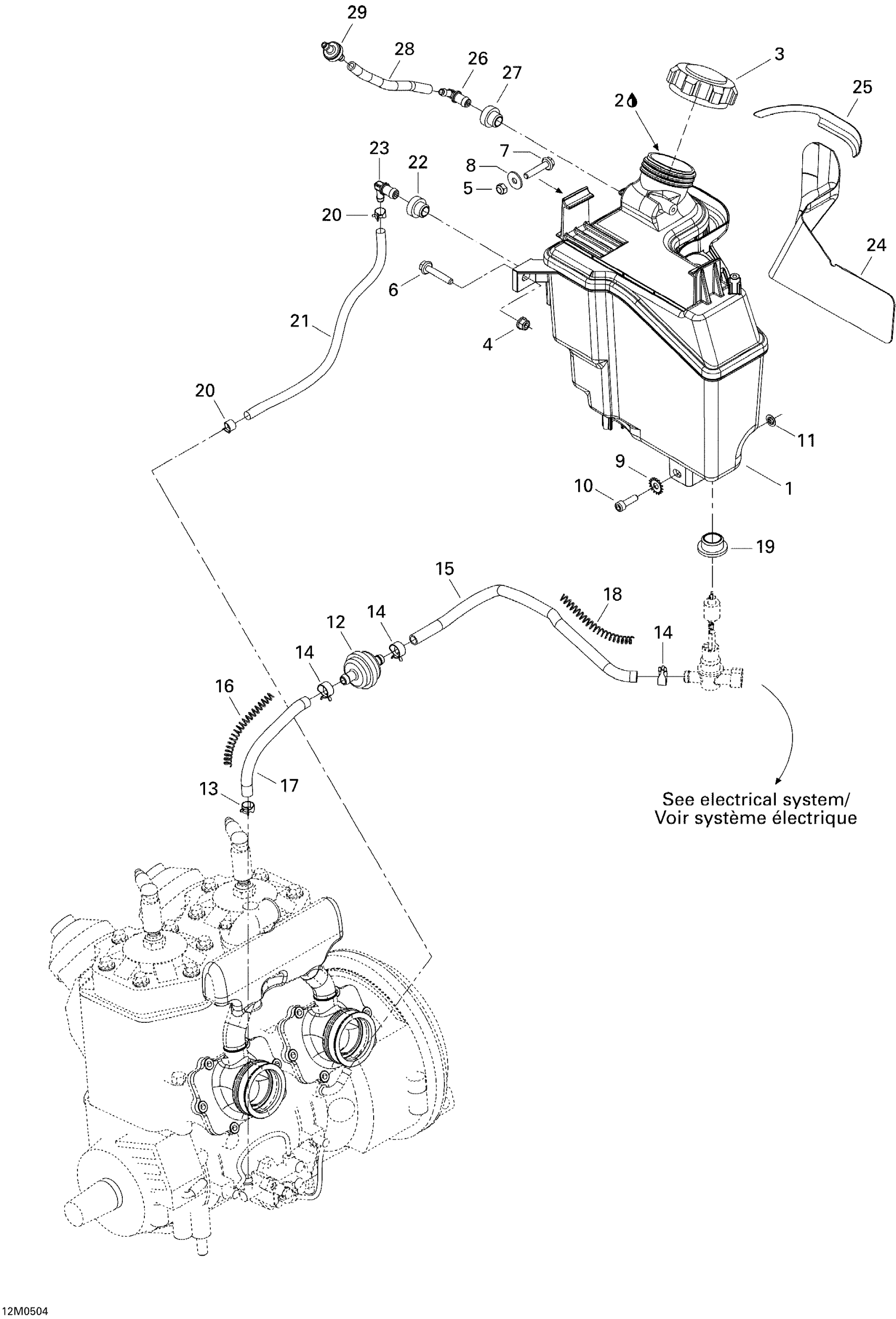

Ski-Doo GTX 500SS, 2005 02- Oil System Diagram

OIL TANK - Call your local BRP dealership

519000111

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

CAP - Call your local BRP dealership

519000033

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 35

207663544

$0.90

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

250200082

$0.42

Lock Washer Serrated M6

250200041

$1.15

Socket Head Screw M6 X 20

205062044

$1.26

Push Nut

732610072

$2.19

Filter

414536500

$4.02

Spring Clamp

414420700

$0.72

Spring Clamp

414415200

$0.88

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

SPRING - Call your local BRP dealership

519000064

Unavailable

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

SPRING - Call your local BRP dealership

519000065

Unavailable

Insulating Ring

570023000

$5.61

Spring Clamp

414554800

$0.88

Polyurethane Hose 10000Mm Long

219704410

$56.99

Grommet

513032908

$10.49

Male Connector

414580700

$4.12

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

Male Connector

414580700

$4.12

Grommet

513032908

$10.49

Polyurethane Hose 10000Mm Long

219704410

$56.99

Check Valve

275500398

$10.99
