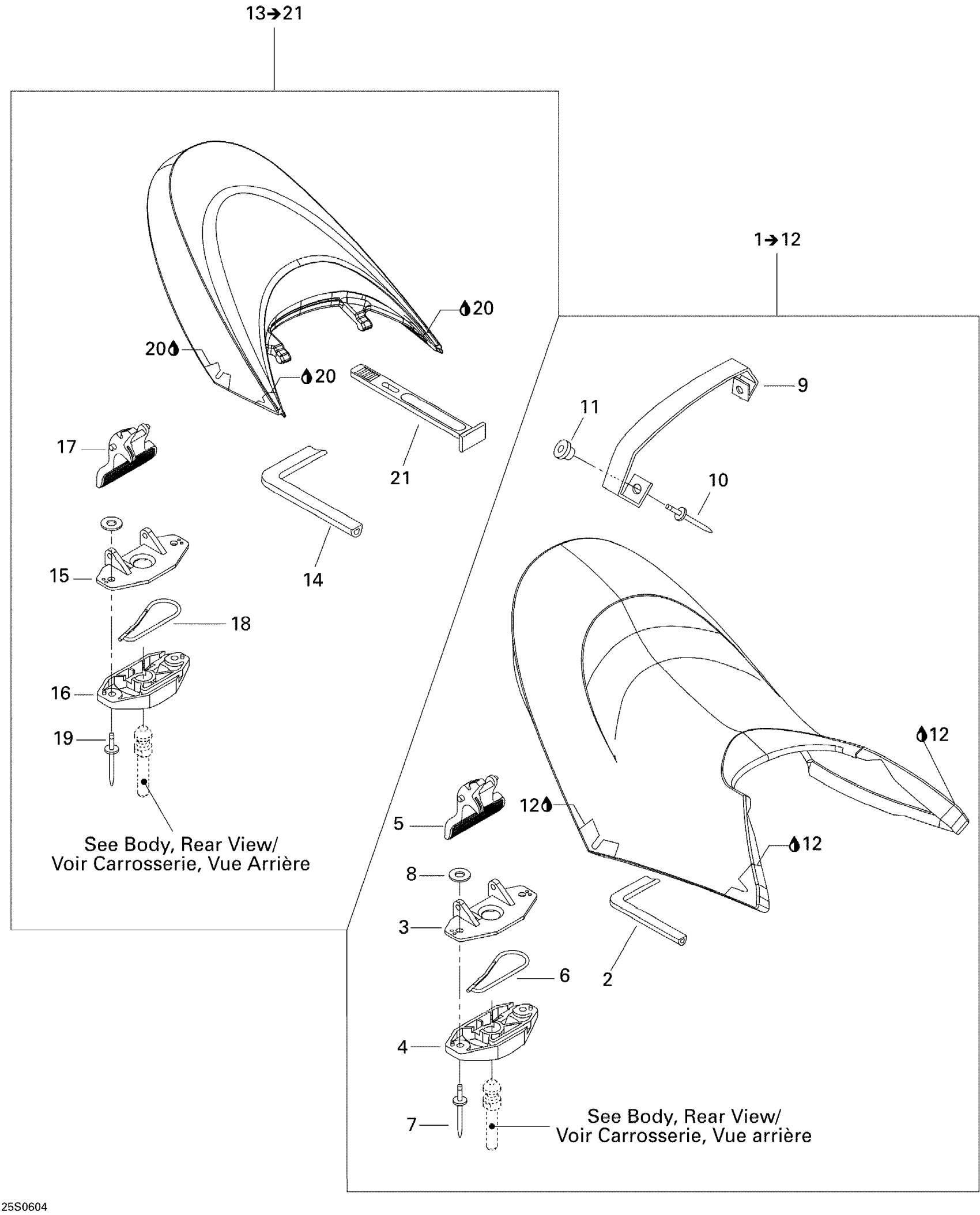

Sea-doo GTX 4-TEC, WAKE, 2006 Seat WAKE Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 12, WAKE

269001390

Unavailable

2

Was 293200062 Seal

219704366

$61.72

3

Latch Ass'y

269700109

$20.12

4

Latch Ass'y

269700109

$20.12

5

Latch Ass'y

269700109

$20.12

6

Latch Spring

269700017

$7.27

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Stainless Flat Washer M6

234061600

$0.25

9

SEAT STRAP - Call your local BRP dealership

269001391

Unavailable

10

Rivet | Model-T3

293150067

$2.29

11

Grommet

293720067

$9.19

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

13

SEAT ASS'Y - Call your local BRP dealership | Includes 13 to 21, WAKE

269001396

Unavailable

14

Was 293200062 Seal

219704366

$61.72

15

Latch Ass'y

269700109

$20.12

16

Latch Ass'y

269700109

$20.12

17

Latch Ass'y

269700109

$20.12

18

Latch Spring

269700017

$7.27

19

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

20

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

21

Strap

269502417

$14.27
