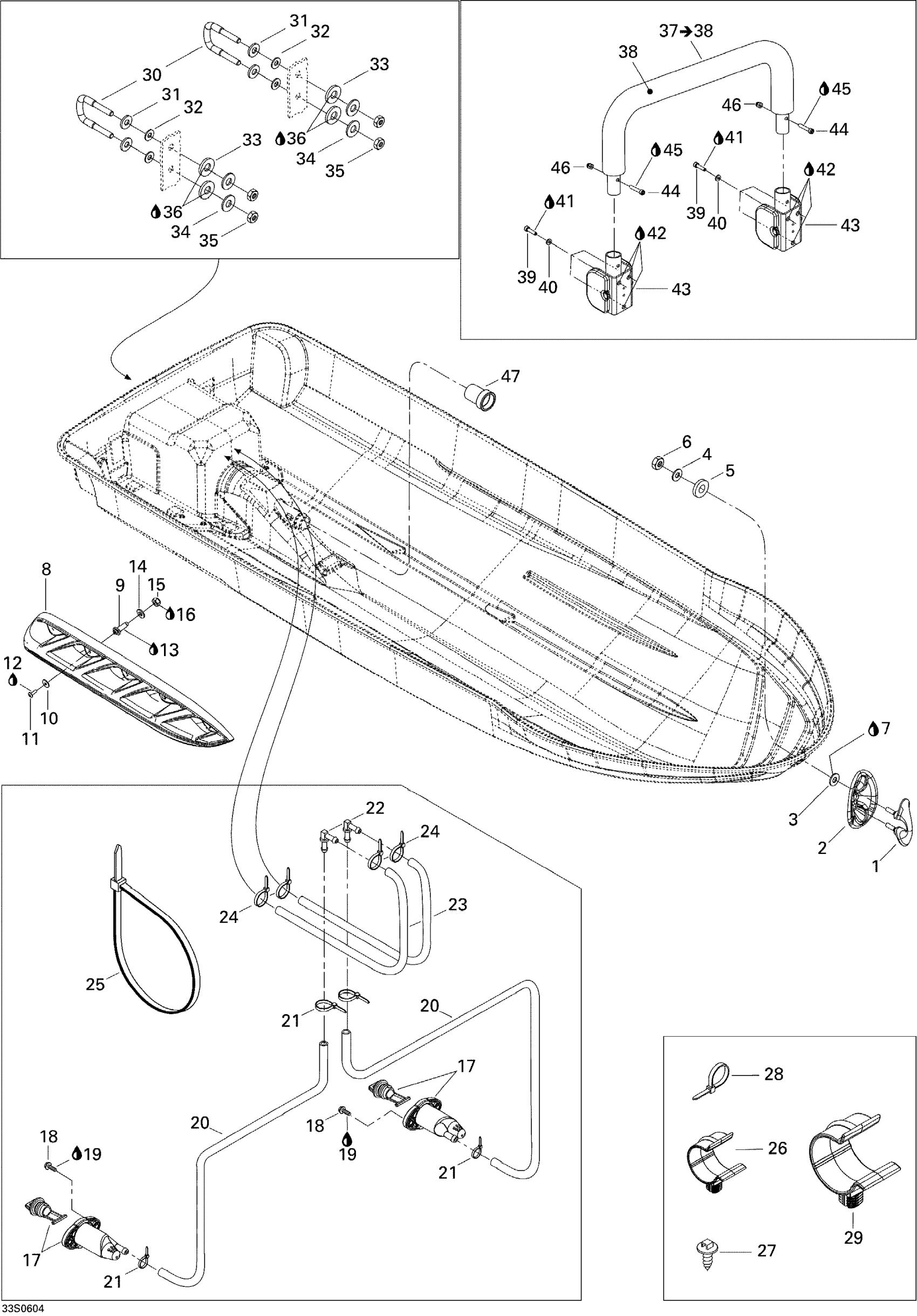

Sea-doo GTX 4-TEC, WAKE, 2006 Hull WAKE Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

2

Black Shell

292001837

$20.99

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer 8 mm, Stainless

250200175

$3.06

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

RH Sponson

292001878

$93.99

8

LH Sponson

292001877

$93.99

9

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

10

Flat Washer M6.6 X 22

250200022

$2.72

11

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.69

12

Loctite 243, 10 ml

293800060

$21.49

13

Silicone Sealant 51388, 300 ml

296000309

$36.99

14

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

15

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Drain Plug

292001252

$36.99

18

Hex. Screw 10-14 X 7/8”

211000023

$3.59

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

Tie Wrap 368 mm

293750008

$1.04

26

Cable Retainer

275500527

$2.68

27

Mount Dart

293730040

$1.04

28

Tie-Rap 180 mm

414115200

$0.11

29

Retainer

275500590

$9.69

30

U-Clamp

292000933

$59.49

31

Flat Washer M8.5 x 18

293050001

$3.07

32

Flat Washer 8 mm, Nylon

234081100

$1.39

33

Rubber Washer

293830037

$2.68

34

Flat Washer 8 mm, Stainless

250200175

$3.06

35

Hex. Elastic Nut M8 Brass

232581200

$2.22

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

LADDER TUBE ASS'Y - Call your local BRP dealership

292001038

Unavailable

38

Protective Sleeve

292001067

Unavailable

39

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.69

40

Stainless Flat Washer M6

234061600

$0.33

41

Silicone Sealant 51388, 300 ml

296000309

$36.99

42

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

43

STAIR SUPPORT - Call your local BRP dealership | Includes 39 to 40

292001115

Unavailable

44

Socket Head Screw M6 X 35

205063560

$2.22

45

Loctite 243, 10 ml

293800060

$21.49

46

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.34

47

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable
