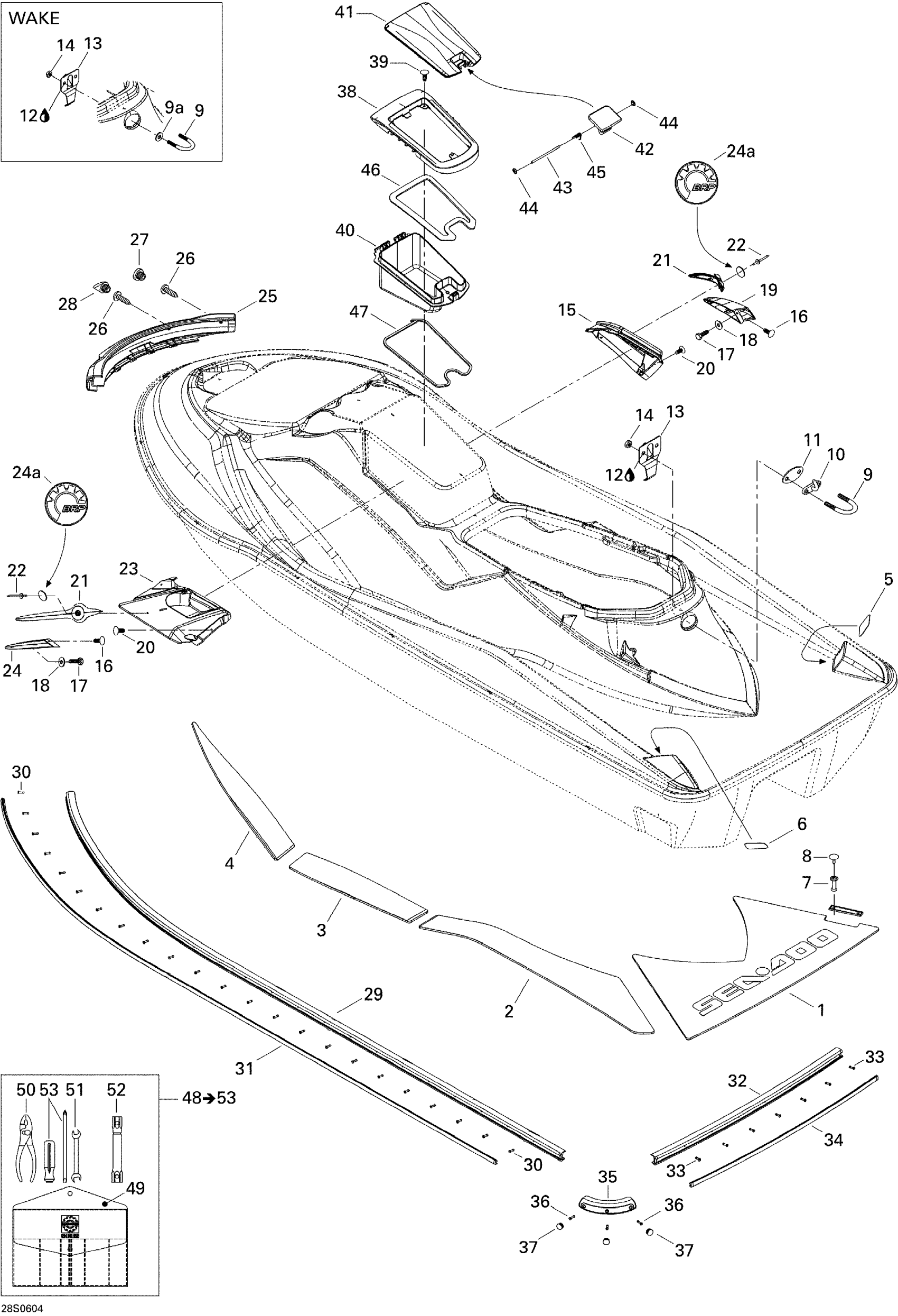

Sea-doo GTX 4-TEC, WAKE, 2006 Body, Rear View WAKE Diagram

#

Description
Price

1

ANTI SLIP MAT_DECK - Call your local BRP dealership

291002316

Unavailable

2

RH CENTER REAR CARPET - Call your local BRP dealership

291002382

Unavailable

2

LH CENTER REAR CARPET - Call your local BRP dealership

291002383

Unavailable

3

RH CENTER FRONT CARPET - Call your local BRP dealership

291002384

Unavailable

3

LH Center Front Carpet

291002385

Unavailable

4

RH FRONT CARPET - Call your local BRP dealership

291002386

Unavailable

4

LH FRONT CARPET - Call your local BRP dealership

291002387

Unavailable

5

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

6

LH Anti-Skid

291001759

Unavailable

7

Rivet 1/8"

293150016

$0.40

8

Black, Snap Cap

293000014

$1.09

9

U-Clamp

292000933

$59.49

9a

Flat Washer M8.5 x 18

293050001

$3.07

10

Not Available As Spare Parts

XXX

Unavailable

11

Black, Finition Plate

291001386

$10.99

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

Retainer Plate

291001747

Unavailable

14

Hex. Elastic Nut M8 Brass

232581200

$2.22

15

RH GRILL, BLACK - Call your local BRP dealership | WAKE

269500931

Unavailable

16

Black Dart

293730010

$0.99

17

Hex. Flange Screw K40 X 16

241141660

$1.48

18

Flat Washer 5 mm, Stainless

234052600

$0.77

19

RH INSERT - Call your local BRP dealership | WAKE

293450223

Unavailable

20

Black, Dart

293730006

$0.99

21

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

22

Pop Rivet 3/16"

293150008

$0.50

23

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable

24

LH INSERT - Call your local BRP dealership | WAKE

293450224

Unavailable

24a

BRP Logo 48mm

516008738

$16.99

25

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

26

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

27

Bumper Plug, Black

291001519

$5.49

28

Bumper Plug, Black

291001040

$7.39

29

Black, Side Bumper

204050270

$179.99

30

Pop Rivet 3/16"

293150005

$0.52

31

SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership

291001897

Unavailable

32

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

33

Pop Rivet 3/16"

293150005

$0.52

34

Rear Bumper Trim, Viper Red

291001484

Unavailable

35

Bumper Corner

291002244

$48.99

36

Pop Rivet 3/16"

293150013

$1.37

37

Bumper Plug, Black

291000339

$2.99

38

Cover Trim, Black

269501031

$53.99

39

Black, Dart

293730006

$0.99

40

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

41

GLOVE BOX DOOR - Call your local BRP dealership

269501648

Unavailable

42

Latch, Black

269500553

$21.99

43

Pin

211400008

$9.10

44

Push Nut | Not shown

211100002

$2.19

45

Latch Spring

291000922

$7.39

46

GASKET - Call your local BRP dealership

293250126

Unavailable

47

GASKET - Call your local BRP dealership

293250127

Unavailable

48

TOOL KIT - Call your local BRP dealership | Includes 43 to 46

294000744

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

52

Socket Wrench

529035731

Unavailable

53

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable
