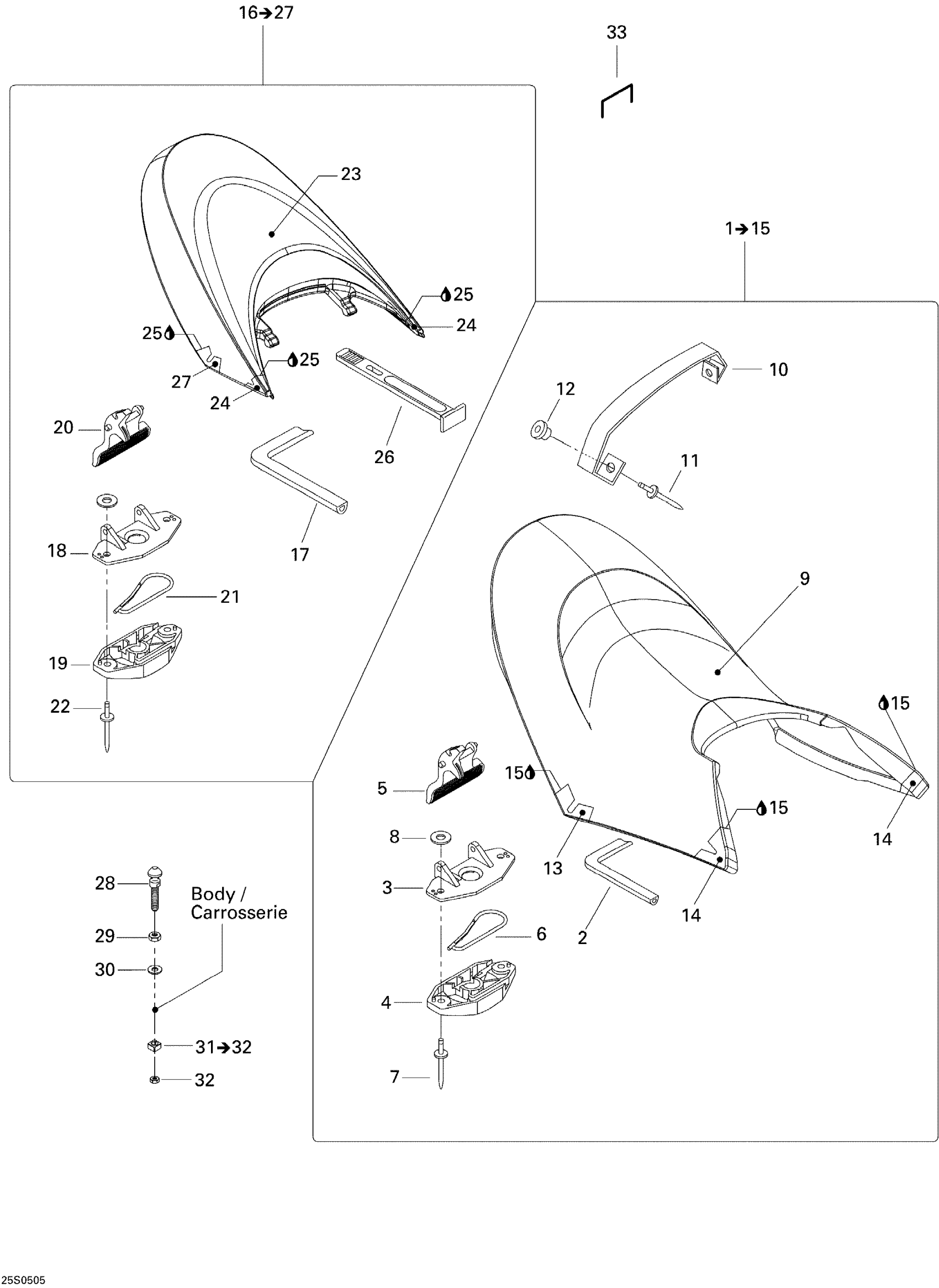

Sea-doo GTX 4-TEC, WAKE, 2005 Seat WAKE Diagram
#
Description
Price
1
FRONT SEAT ASS'Y, SILVER - Call your local BRP dealership | WAKE, Includes 1 to 15
269001245
Unavailable
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
9
Front Seat Cover & Foam, Silver | WAKE
269001051
Unavailable
10
Seat Strap, Silver | WAKE
269001081
Unavailable
11
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
13
RH Seat Corner, Silver | WAKE
269001082
Unavailable
13
LH Seat Corner, Silver | WAKE
269001083
Unavailable
14
RH Front Seat Corner, Silver | WAKE
269001084
Unavailable
14
LH Front Seat Corner, Silver | WAKE
269001085
Unavailable
16
Rear Seat Ass'y, Silver | WAKE, Includes 16 to 27
269001243
Unavailable
22
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
23
Rear Seat Cover & Foam, Silver | WAKE
269001060
Unavailable
24
RH Seat Corner, Silver | WAKE
269001086
Unavailable
24
LH Seat Corner, Silver | WAKE
269001087
Unavailable
27
SEAT CORNER - Call your local BRP dealership
269001088
Unavailable
28
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
31
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
32
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
33
Staple
293730005
Unavailable
