- GTX 4-TEC, WAKE, 2005
09- Hull WAKE

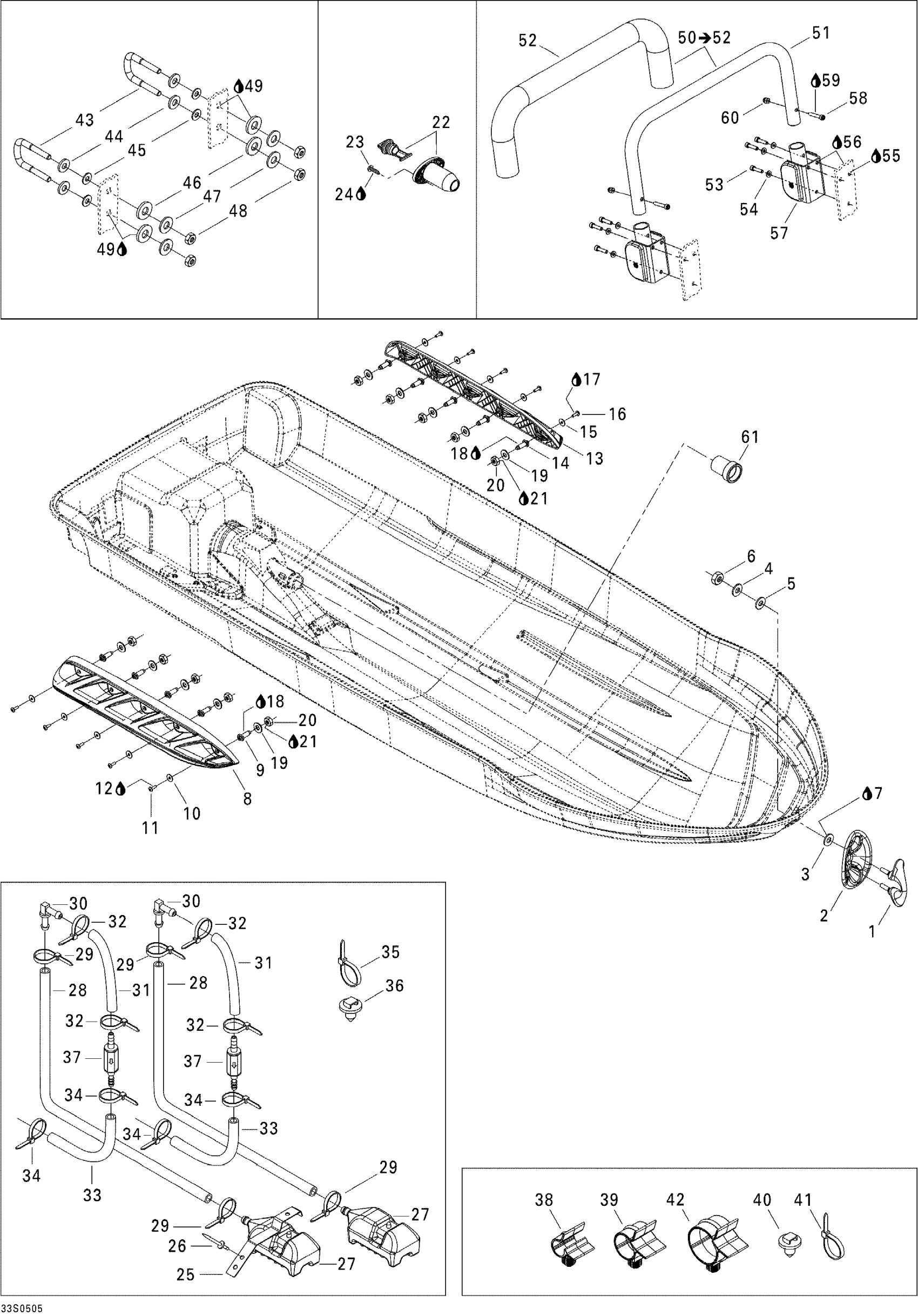

Sea-doo GTX 4-TEC, WAKE, 2005 09- Hull WAKE Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
2
Black Shell
292001837
$20.99
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8
232581600
$1.48
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH Sponson
292001878
$93.99
9
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
10
Flat Washer M6.6 X 22
250200022
$2.72
11
Torx Screw M6 X 20, Stainless | Package XDSXRS
250000234
$3.69
12
Loctite 243, 10 ml
293800060
$21.49
13
LH Sponson
292001877
$93.99
14
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
15
Flat Washer M6.6 X 22
250200022
$2.72
16
Torx Screw M6 X 20, Stainless | Package XDSXRS
250000234
$3.69
17
Loctite 243, 10 ml
293800060
$21.49
18
Silicone Sealant 51388, 300 ml
296000309
$36.99
19
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
20
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Drain Plug
292001252
$36.99
23
Hex. Screw 10-14 X 7/8”
211000023
$3.59
24
Silicone Sealant 51388, 300 ml
296000309
$36.99
25
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
26
Avdel Rivet 3/16"
293150037
$0.56
27
Bailer Screen
292000688
Unavailable
28
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
29
Tie Wrap 94 mm | 4X4
293750001
$1.03
30
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
31
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
32
Tie Wrap 94 mm | 4X4
293750001
$1.03
33
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
34
Tie Wrap 94 mm | 4X4
293750001
$1.03
35
Tie-Rap 180 mm
414115200
$0.11
36
Mount Dart
293730040
$1.04
37
Check Valve
276000093
Unavailable
38
Hose Retainer
275500528
Unavailable
39
Cable Retainer
275500527
$2.68
40
Mount Dart
293730040
$1.04
41
Tie-Rap 180 mm
414115200
$0.11
42
Retainer
275500590
$9.69
43
U-Clamp
292000933
$59.49
44
Flat Washer M8.5 x 18
293050001
$3.07
45
Flat Washer 8 mm, Nylon
234081100
$1.39
46
Rubber Washer
293830037
$2.68
47
Flat Washer 8 mm, Stainless
250200175
$3.06
48
Hex. Elastic Nut M8
232581600
$1.48
49
Silicone Sealant 51388, 300 ml
296000309
$36.99
50
LADDER TUBE ASS'Y - Call your local BRP dealership
292001038
Unavailable
51
Not Available As Spare Part - Friction Washer
Unavailable
52
Protective Sleeve
292001067
Unavailable
53
Socket Head Screw M6 X 25, Scotch Grip
250000076
$1.69
54
Stainless Flat Washer M6
234061600
$0.33
55
Silicone Sealant 51388, 300 ml
296000309
$36.99
56
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
57
STAIR SUPPORT - Call your local BRP dealership | LE
292000562
Unavailable
58
Socket Head Screw M6 X 35
205063560
$2.22
59
Loctite 243, 10 ml
293800060
$21.49
60
Nut M6 | Model-Australie, Brezil, Europe
232361600
$4.34
61
HULL INSERT, 41 MM - Call your local BRP dealership
292000975
Unavailable
