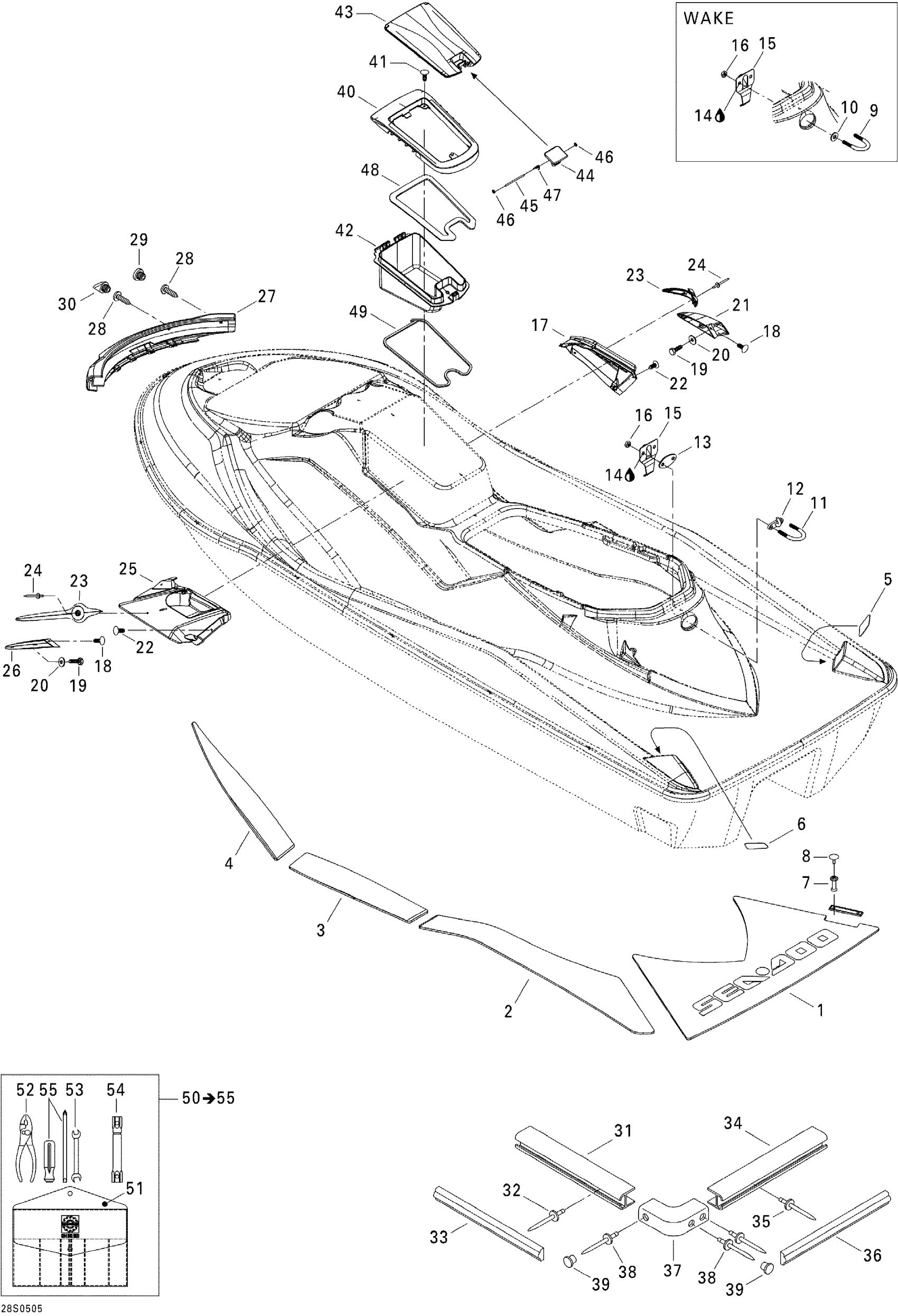

Sea-doo GTX 4-TEC, WAKE, 2005 Body, Rear View WAKE Diagram

#

Description
Price

1

Rear Carpet

291002140

Unavailable

2

RH Center Rear Carpet

291002162

Unavailable

2

LH Center Rear Carpet

291002164

Unavailable

3

RH Center Front Carpet

291002166

Unavailable

3

LH Center Front Carpet

291002168

Unavailable

4

RH Front Carpet

291002170

Unavailable

4

LH Front Carpet

291002172

Unavailable

5

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

6

LH Anti-Skid

291001759

Unavailable

7

Rivet 1/8"

293150016

$0.29

8

Black, Snap Cap

293000014

$0.85

9

U-Clamp

292000933

$32.47

10

Flat Washer M8.5 x 18

293050001

$1.29

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$35.72

15

Retainer Plate

291001747

Unavailable

16

Hex. Elastic Nut M8

232581600

$1.25

17

RH GRILL, BLACK - Call your local BRP dealership | WAKE

269500931

Unavailable

18

Black Dart

293730010

$0.81

19

Hex. Flange Screw K40 X 16

241141660

$1.25

20

Flat Washer 5 mm, Stainless

234052600

$0.64

21

RH INSERT - Call your local BRP dealership | WAKE

293450223

Unavailable

22

Black, Dart

293730006

$0.81

23

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

24

Pop Rivet 3/16"

293150008

$0.40

25

LH GRILL, BLACK - Call your local BRP dealership | WAKE

269500932

Unavailable

26

LH INSERT - Call your local BRP dealership | WAKE

293450224

Unavailable

27

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

28

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

29

Bumper Plug, Black

291001519

$4.28

30

Bumper Plug, Black

291001040

Unavailable

31

Black, Side Bumper

204050270

$167.13

32

Pop Rivet 3/16"

293150005

$0.40

33

SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership

291001897

Unavailable

34

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

35

Pop Rivet 3/16"

293150005

$0.40

36

Rear Bumper Trim, Viper Red

291001484

Unavailable

37

Bumper Corner

291002244

$38.32

38

Pop Rivet 3/16"

293150013

$1.11

39

Bumper Plug, Black

291000339

$2.34

40

Cover Trim, Black

269501031

$42.22

41

Black, Dart

293730006

$0.81

42

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

43

GLOVE BOX DOOR - Call your local BRP dealership

269501648

Unavailable

44

Latch, Black

269500553

$16.87

45

Pin

211400008

$7.32

46

Push Nut | Not shown

211100002

$0.83

47

Latch Spring

291000922

$4.80

48

GASKET - Call your local BRP dealership

293250126

Unavailable

49

GASKET - Call your local BRP dealership

293250127

Unavailable

50

Tool Kit | Includes 52 to 57

294000682

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

54

Socket Wrench

529035731

Unavailable

55

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable
