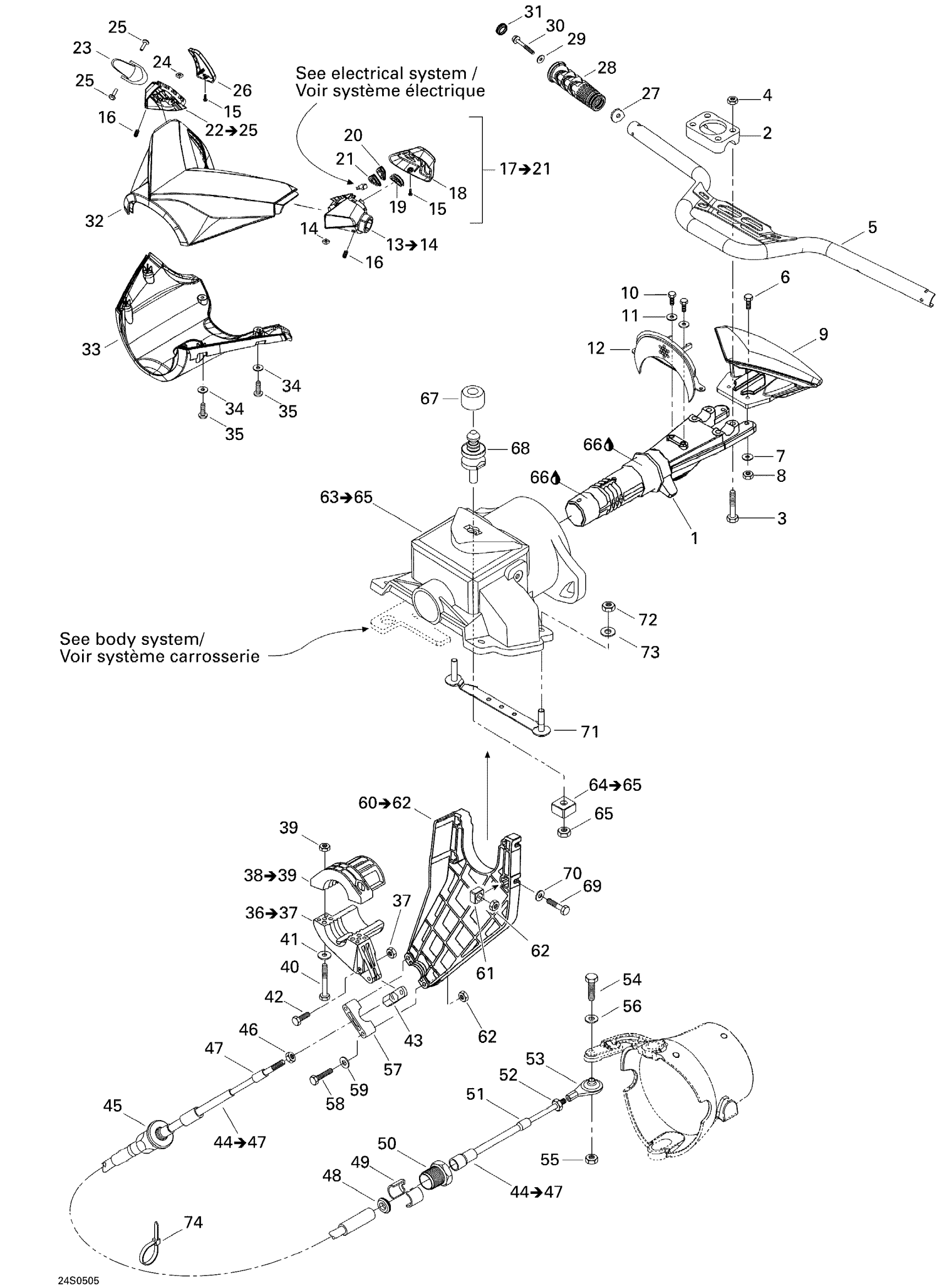

Sea-doo GTX 4-TEC, WAKE, 2005 Steering System WAKE Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Handlebar

277001454

Unavailable

6

Hex. Screw M6 X 30

207063060

$1.89

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

HANDLE PAD, METALLIC SILVER - Call your local BRP dealership | Black Perle

277001361

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

PLATE - Call your local BRP dealership

277000549

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

$9.00

17

LH Housing Cover Ass'y | WAKE, Includes 17 to 21

277001351

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Stop Knob

278001713

$18.49

20

MODE KNOB - Call your local BRP dealership

278001714

Unavailable

21

SET KNOB - Call your local BRP dealership

278001715

Unavailable

22

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

23

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

24

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

25

PIN - Call your local BRP dealership

277000381

Unavailable

26

HOUSING COVER - Call your local BRP dealership

277001355

Unavailable

27

Insert Grip Handle

277001863

$8.83

28

Handle Grip Kit Red/Black | Premium, Viper Red B-176 This part replaces 277001245.

295500979

$31.99

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

31

Black, Cap

277000203

$9.39

32

UPPER STEERING COVER, BLACK - Call your local BRP dealership

277000952

Unavailable

33

LOWER STEERING COVER, BLACK - Call your local BRP dealership

277001145

Unavailable

34

Flat Washer M5, Stainless

234051600

$0.77

35

Hex. Flange Screw K40 X 16

241141660

$1.48

36

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Arm Thrust | Includes 43 to 44

277000519

Unavailable

39

Hex. Elastic Stop Nut M6

232561600

$1.15

40

Hex. Screw M6 X 25

207162560

$1.47

41

Flat Washer M6, Stainless

234062600

$0.77

42

Hex. Screw M6 X 30

211000081

$3.59

43

Ball Joint

277001180

$35.99

44

Steering Cable | Includes 43 to 46

277001326

Unavailable

45

Ajustment Knob

277000782

$22.99

46

Hex. Nut 1/4"-28

211100056

$0.69

47

Terminal Wiper

277000441

$11.99

48

Rubber Washer

293830063

$1.90

49

Half Ring

277001527

$10.37

50

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

51

Terminal Wiper

277000441

$11.99

52

Hex. Nut 1/4"-28

211100056

$0.69

53

Ball Joint

277000775

$51.99

54

Hex. Screw M6 X 35

207063560

$2.22

55

Hex. Elastic Stop Nut M6

232561600

$1.15

56

Stainless Flat Washer M6

234061600

$0.33

57

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

58

Hex. Screw M6 X 50

207065060

$2.22

59

Stainless Flat Washer M6

234061600

$0.33

60

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

61

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

62

Hex. Nut M6

232061600

$1.15

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

65

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

68

Latch Stud

291002147

Unavailable

69

Hex. Forming Screw M6 X 20

207162060

$1.29

70

Stainless Flat Washer M6

234061600

$0.33

71

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

72

Hex. Elastic Nut M8

232581600

$1.48

73

Stainless, Flat Washer 8 mm

234081600

$0.55

74

Tie Wrap 368 mm

293750008

$1.04
