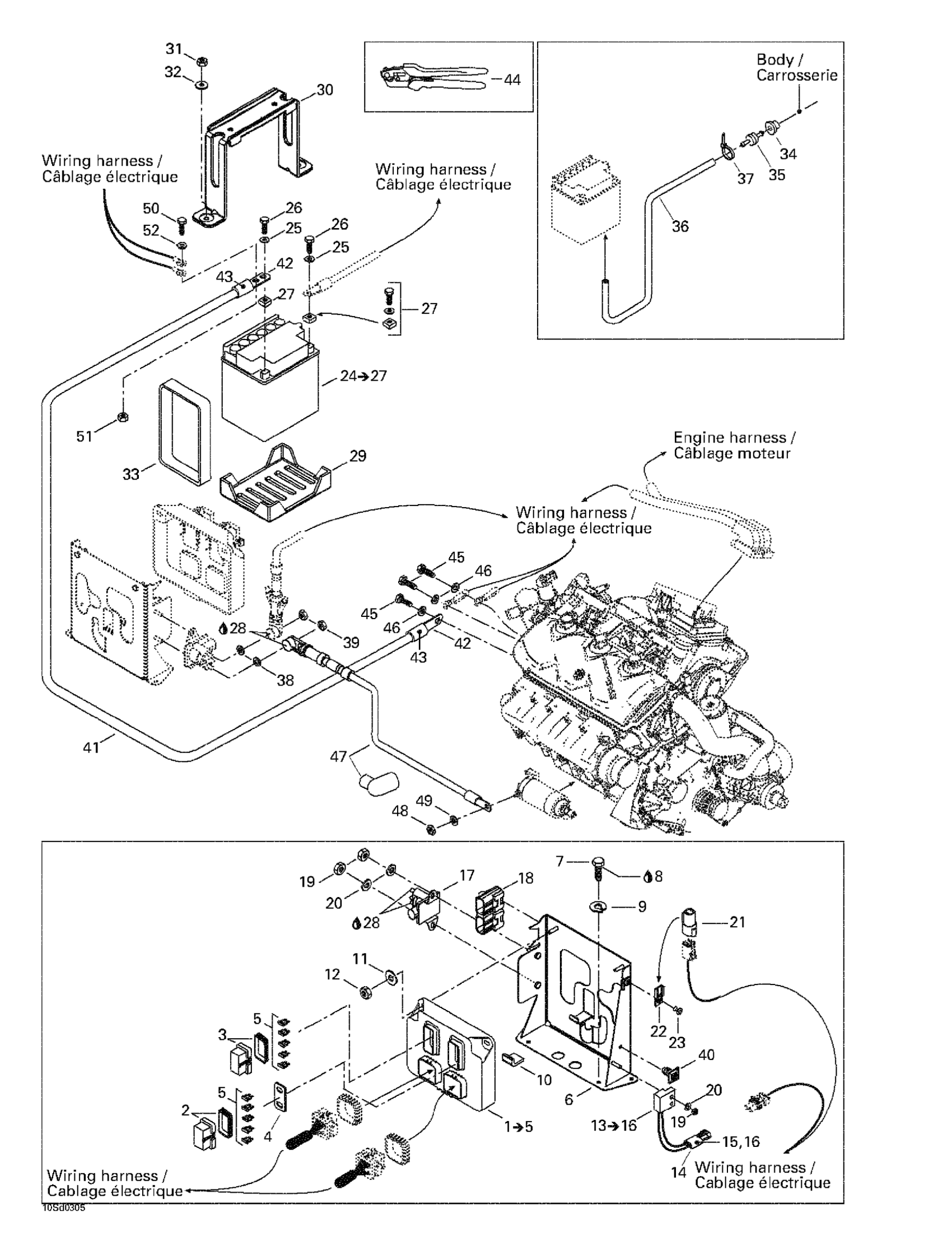

Sea-doo GTX 4-TEC Wake, 2003 Electrical System Diagram

#

Description
Price

1

Program Module | Includes 1 - 5.

278001906

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

4

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

5

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 10 Amperes | North America

278001197

$2.06

6

Module Support

278001870

Unavailable

7

Hex. Screw 10-14 X 7/8”

211000023

$3.34

8

Loctite 271, 10 ml

293800005

$23.85

9

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

10

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.73

12

Hex. Elastic Stop Nut M6

232561600

$1.06

13

T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16

278001547

Unavailable

14

Female Housing, 2 Circuits

278000217

$8.72

15

Male Terminal | XT Models

278000222

$2.93

16

Wire Seal

278000218

$4.00

17

Starter Relay

278003012

$40.27

18

HOUSING COVER - Call your local BRP dealership

710000342

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.06

20

Stainless Flat Washer M6

234061600

$0.28

21

Diagnostic Connector

278002704

$17.88

22

Clip

270000141

$9.57

23

Pop Rivet 3/16"

204000081

$1.31

24

Battery, 30 Amperes

278001882

$171.95

25

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

26

Hex. Screw M6 X 16

207161644

$0.70

27

Battery Bolt Kit

250000282

$3.39

28

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

29

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

30

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

31

Hex. Elastic Nut M8

232581600

$1.43

32

Flat Washer 8 mm, Stainless

234082600

$2.27

33

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

34

Grommet

293720029

$1.30

35

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

36

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$0.96

38

Brass Washer

250200038

Unavailable

39

Hex. Elastic Stop Nut M6

232561600

$1.06

40

Self-Locking Clip

278001775

Unavailable

41

Battery Ground Cable Ass'y

278001611

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

46

Stainless Flat Washer M6

234061600

$0.28

47

STARTER CABLE - Call your local BRP dealership

278002265

Unavailable

48

Hex. Elastic Stop Nut M6

232561600

$1.06

49

Stainless Flat Washer M6

234061600

$0.28

50

Hex. Cap Screw M6 X 12

207161260

$1.21

51

Hex. Elastic Stop Nut M6

232561600

$1.06

52

Stainless Flat Washer M6

234061600

$0.28
