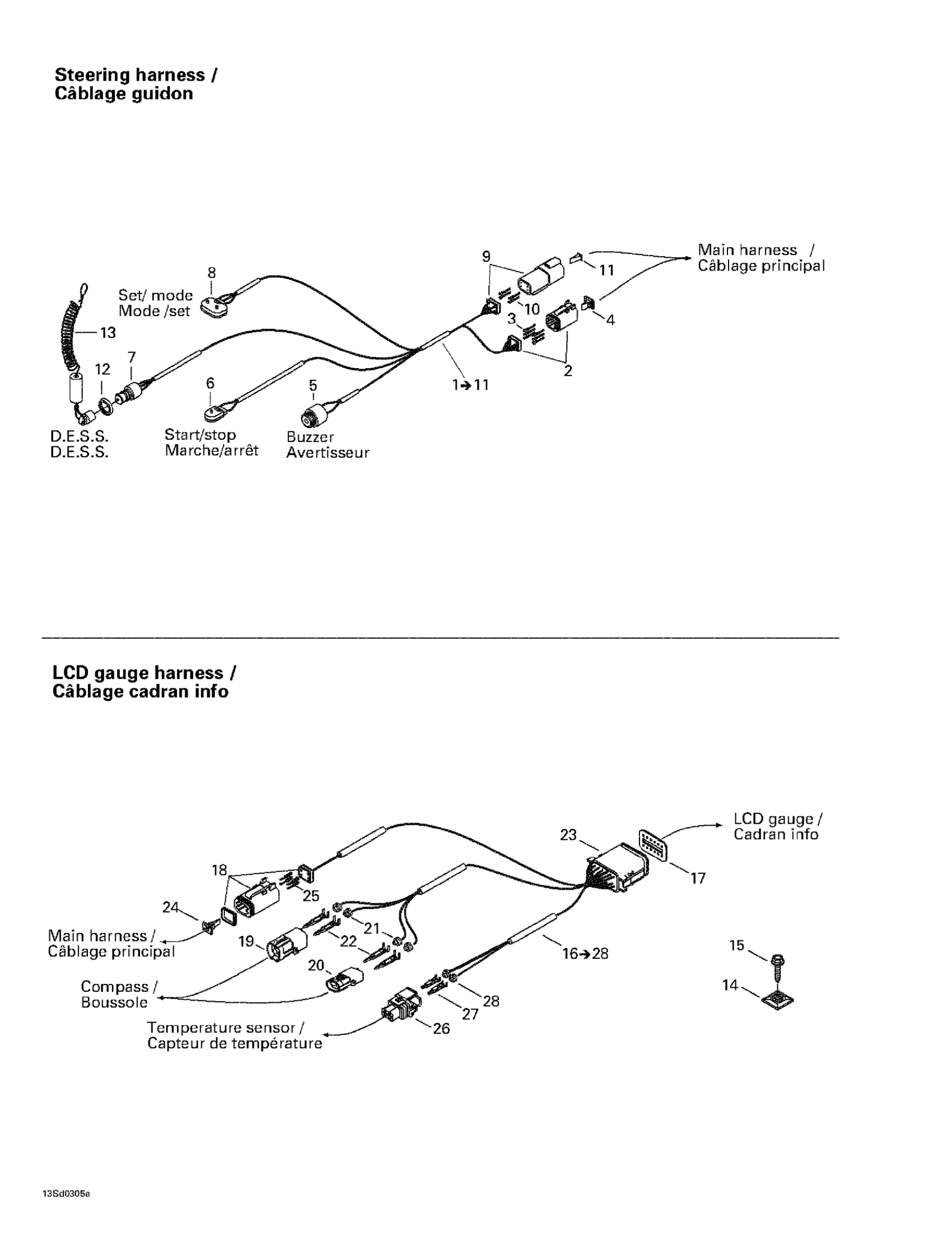

Sea-doo GTX 4-TEC Wake, 2003 Electrical Harness 1 Diagram

#

Description
Price

1

STEERING HARNESS ASSY - Call your local BRP dealership | Includes 1 to 11

278001732

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

3

Female Terminal

278000632

$1.94

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$102.96

8

SET/MODE SWITCH - Call your local BRP dealership

278001755

Unavailable

9

Female Housing, 4 Circuits

278000635

$13.60

10

Male Terminal

278000631

$4.00

11

Female Wedge, 4 Circuits

278000636

$4.00

12

Safety Nut (DESS Switch)

278002963

$3.12

13

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

14

Tie Rap Mount

293750026

$2.76

15

Hex. Flange Screw K40 X 13

241141360

$0.64

16

Cluster Harness Ass’Y | Includes 15 to 27

278001702

Unavailable

17

Female Lock, 12 Circuits

409015700

$4.28

18

Male Connector, 4 Circuits | CE

278000739

$17.13

19

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

20

Female Housing, 2 Circuits

278000217

$8.72

21

Wire Seal

278000218

$4.00

22

Male Terminal | XT Models

278000222

$2.93

23

Female Terminal Housing, 12 Circuits

278002377

$45.49

24

Male Lock, 4 Circuits | CE

278000738

$2.82

25

Female Terminal

278000632

$1.94

26

Male Housing, 2 Circuits

278001005

$17.88

27

Female Terminal

278000998

$4.00

28

Wire Seal

278000999

$2.93
