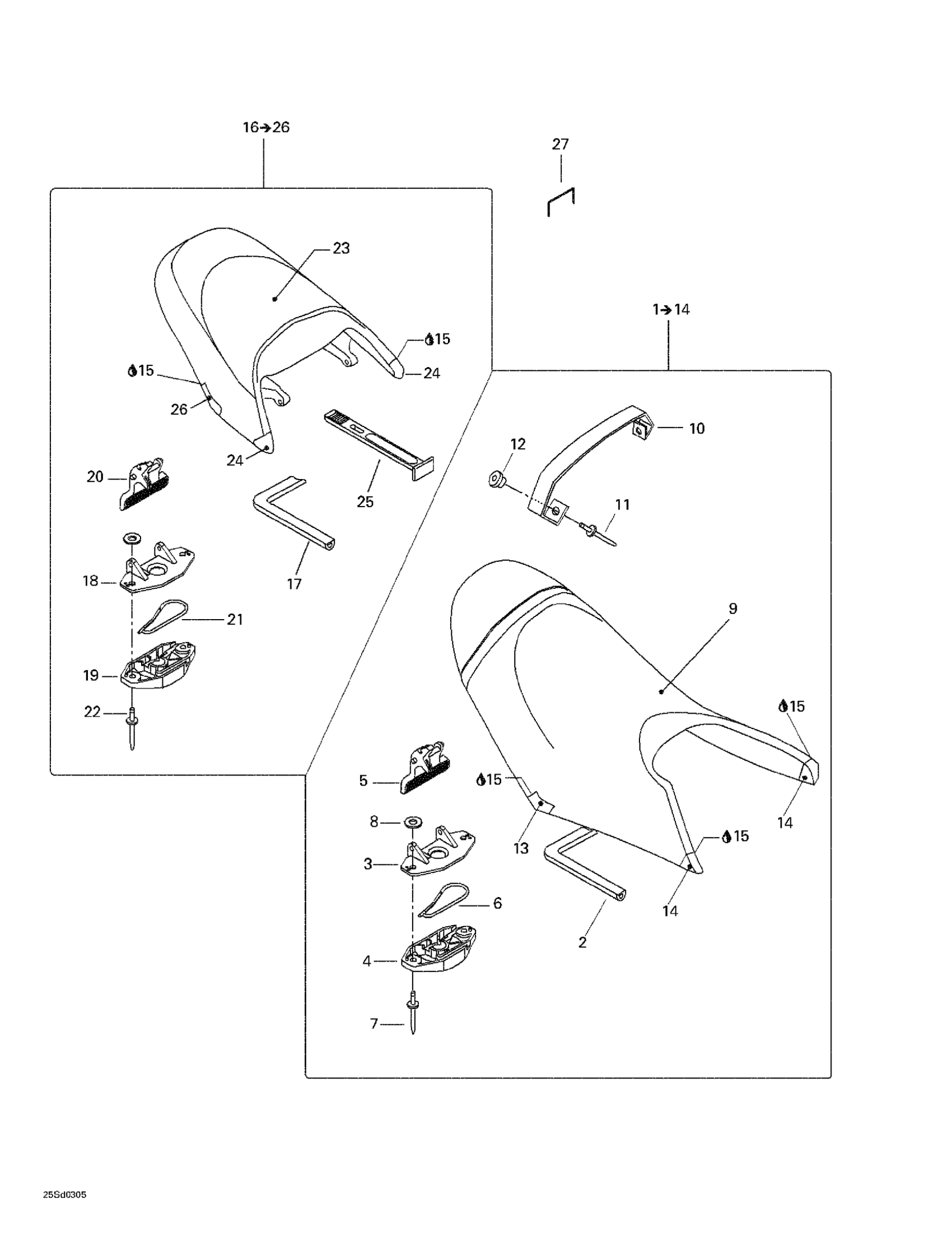

Sea-doo GTX 4-TEC Wake, 2003 09- Seat Diagram
#
1
Front Seat Ass’Y | Includes 1 - 14. BLUE (B-544) GTX 4-TEC 6125/6126.
269000953
Unavailable
Front Seat Ass’Y | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000986
Unavailable
2
Was 293200062 Seal
219704366
$76.49
3
Latch Ass'y
269700109
$24.99
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Spring
269700017
$9.19
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
8
Stainless Flat Washer M6
234061600
$0.33
9
Front Seat Foam & Cover | BLUE (B-544) GTX 4-TEC 6125/6126.
269000954
Unavailable
Front Seat Foam & Cover | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000987
Unavailable
10
Seat Strap | BLUE (B-544) GTX 4-TEC 6125/6126.
269000821
Unavailable
Seat Strap | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000756
Unavailable
11
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
12
Grommet
293720067
$12.99
13
RH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000822
Unavailable
RH Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000738
Unavailable
LH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000823
Unavailable
LH Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000757
Unavailable
14
RH Front Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000824
Unavailable
RH Front Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000789
Unavailable
LH Front Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000825
Unavailable
LH Front Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000790
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
16
Rear Seat Ass’Y | Includes 16 - 26. BLUE (B-544) GTX 4-TEC 6125/6126.
269000972
Unavailable
Rear Seat Ass’Y | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000893
Unavailable
17
Was 293200062 Seal
219704366
$76.49
18
Latch Ass'y
269700109
$24.99
19
Latch Ass'y
269700109
$24.99
20
Latch Ass'y
269700109
$24.99
21
Latch Spring
269700017
$9.19
22
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
23
Rear Seat Cover & Foam | BLUE (B-544) GTX 4-TEC 6125/6126.
269000973
Unavailable
Rear Seat Cover & Foam | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000985
Unavailable
24
RH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000817
Unavailable
RH Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000752
Unavailable
LH Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000818
Unavailable
LH Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000753
Unavailable
25
Strap
269502417
$17.69
26
Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.
269000772
Unavailable
Seat Corner | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
269000833
Unavailable
27
Staple
293730005
Unavailable
