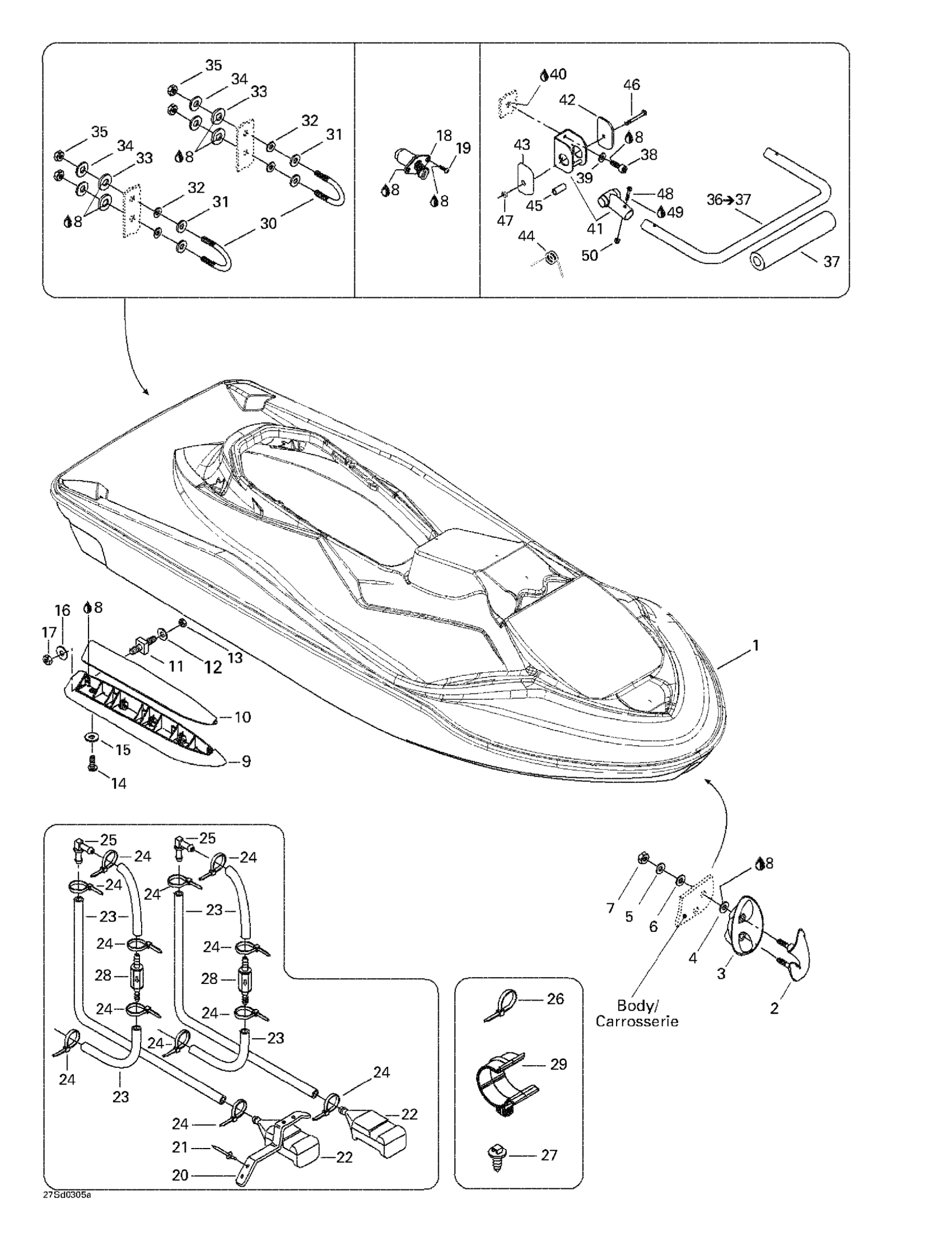

Sea-doo GTX 4-TEC Wake, 2003 09- Hull Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
3
Black Shell
292001837
$20.99
4
Stainless, Flat Washer 8 mm
234081600
$0.55
5
Flat Washer 8 mm, Stainless
250200175
$3.06
6
Rubber Washer
293830037
$2.68
7
Hex. Elastic Nut M8
232581600
$1.48
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
RH SPONSON - Call your local BRP dealership
292000818
Unavailable
9
LH SPONSON - Call your local BRP dealership
292000816
Unavailable
10
RH SPONSON COVER - Call your local BRP dealership
292000815
Unavailable
10
LH SPONSON COVER - Call your local BRP dealership
292000817
Unavailable
11
THREADED INSERT - Call your local BRP dealership
293450227
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
Hex. Nut M6
232061600
$1.15
14
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
15
Flat Washer M5, Stainless
234051600
$0.77
16
Flat Washer M6, Stainless
234062600
$0.77
17
Hex. Nut M6
232061600
$1.15
18
DRAIN ASSY - Call your local BRP dealership
292000685
Unavailable
19
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
20
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
21
Avdel Rivet 3/16"
293150037
$0.56
22
Bailer Screen
292000688
Unavailable
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
26
Tie-Rap 180 mm
414115200
$0.11
27
Mount Dart
293730040
$1.04
28
Check Valve
276000093
Unavailable
29
Hose Retainer
275500528
Unavailable
Cable Retainer
275500527
$2.68
Retainer
275500526
$4.55
30
U-Clamp
292000933
$59.49
31
Flat Washer M8.5 x 18
293050001
$3.07
32
Flat Washer 8 mm, Nylon
234081100
$1.39
33
Rubber Washer
293830037
$2.68
34
Flat Washer 8 mm, Stainless
250200175
$3.06
35
Hex. Elastic Nut M8
232581600
$1.48
36
Stair Tube Ass’Y | Includes items 42 to 43
292000778
Unavailable
37
PROTECTIVE SLEEVE - Call your local BRP dealership
292000781
Unavailable
38
Socket Head Screw M6 X 25, Scotch Grip
250000076
$1.69
39
Stainless Flat Washer M6
234061600
$0.33
40
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
41
Support Ass’Y
292000539
Unavailable
42
RH Support Cap
292000540
Unavailable
43
LH Support Cap
292000548
Unavailable
44
RECALL SPRING - Call your local BRP dealership
292000541
Unavailable
45
Plastic Tube
292000542
Unavailable
46
Phillips Screw
211000186
Unavailable
47
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
48
Socket Head Screw M6 X 35
205063560
$2.22
49
Loctite 243, 10 ml
293800060
$21.49
50
Nut M6 | Model-Australie, Brezil, Europe
232361600
$4.34
