Description

Price

1

Cover Trim

269501234

Unavailable

2

Clip

270000141

$11.49

3

Flange Screw K40 X 20

241642060

$1.15

4

Black Plug

291000279

$7.69

5

Front Tray

269500955

Unavailable

6

Front Door

291001744

Unavailable

7

Gasket, Neoprene 2000Mm Long

219704476

$15.36

8

Rear Door

291001743

Unavailable

9

Gasket, Neoprene 2000Mm Long

219704476

$15.36

10

Strap

269502417

$17.69

11

Hook

269500521

$9.09

12

Avdel Rivet

293150027

$2.49

13

Removable Tray | Includes 40 to 45

269501478

$109.99

14

Removable Tray | Includes 40 to 45

269501478

$109.99

15

Pocket Ass’Y | GTX 4-TEC 6125/6126.

269501177

Unavailable

16

STRAP - Call your local BRP dealership

269501175

Unavailable

STRAP - Call your local BRP dealership

269501174

Unavailable

STRAP - Call your local BRP dealership

269501175

Unavailable

STRAP - Call your local BRP dealership

269501176

Unavailable

17

Tuflok Plastic Rivet

293150230

$1.47

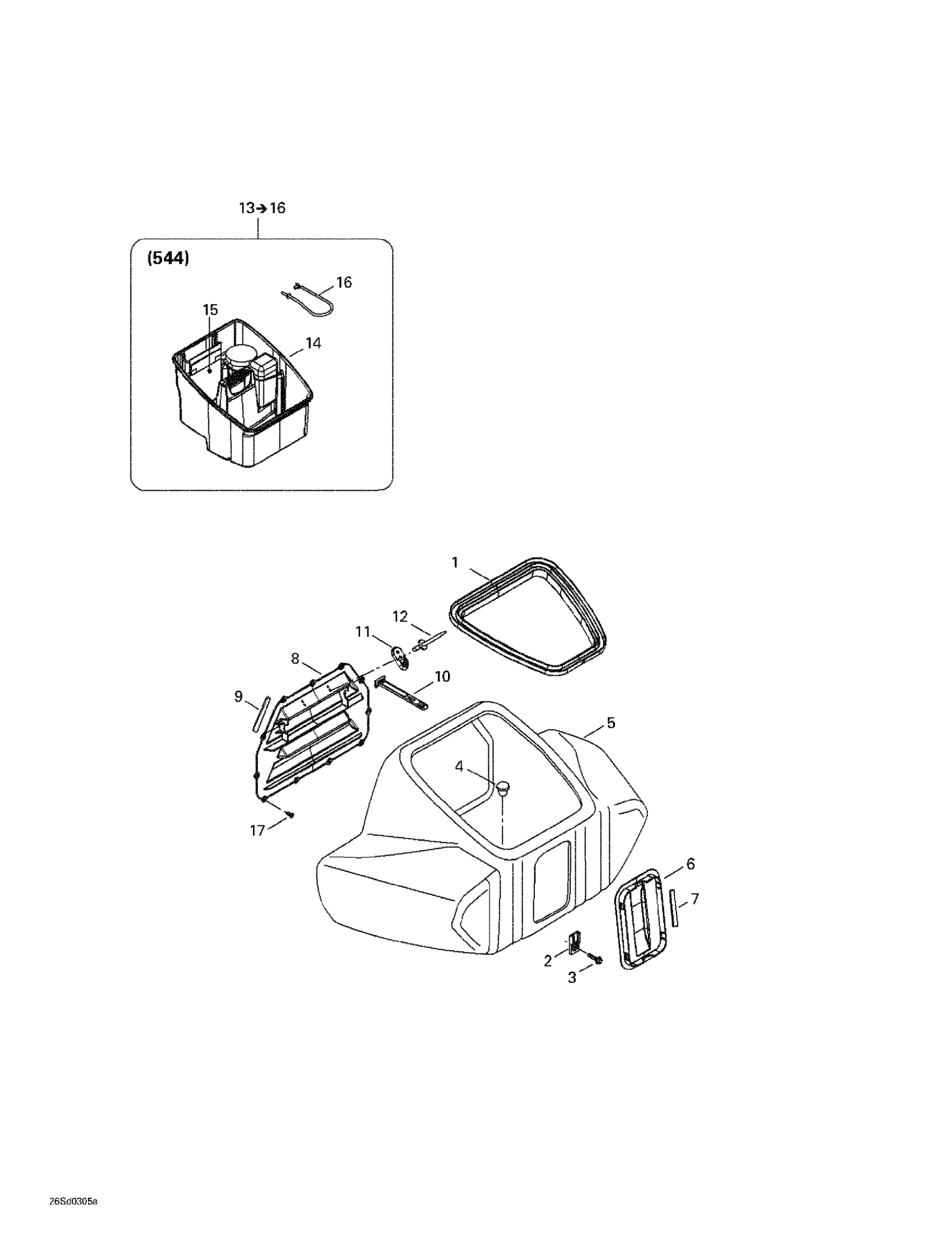

Sea-doo GTX 4-TEC Wake, 2003 09- Front Storage Compartment Diagram

Cover Trim

Clip

Flange Screw K40 X 20

Black Plug

Front Tray

Front Door

Gasket, Neoprene 2000Mm Long

Rear Door

Gasket, Neoprene 2000Mm Long

Strap

Hook

Avdel Rivet

Removable Tray | Includes 40 to 45

Removable Tray | Includes 40 to 45

Pocket Ass’Y | GTX 4-TEC 6125/6126.

STRAP - Call your local BRP dealership

STRAP - Call your local BRP dealership

STRAP - Call your local BRP dealership

STRAP - Call your local BRP dealership

Tuflok Plastic Rivet
