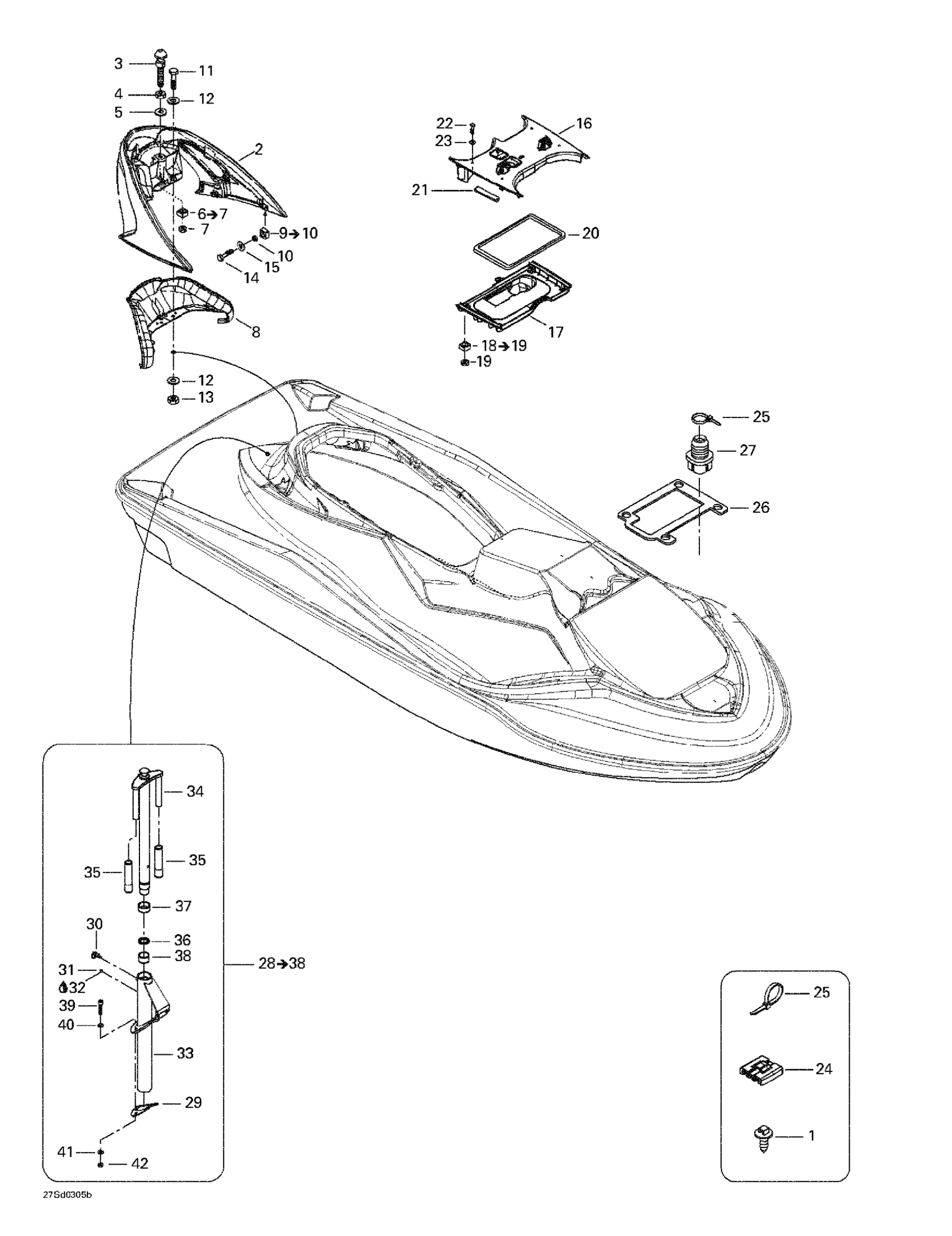

Sea-doo GTX 4-TEC Wake, 2003 09- Body, Front View Diagram

#

Description
Price

1

Mount Dart

293730040

$1.04

2

GRAB HANDLE, BLACK - Call your local BRP dealership

269000722

Unavailable

3

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

4

Hex. Jam Nut M10

232100600

$2.22

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

7

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

8

HANDLE COVER, BLACK - Call your local BRP dealership

269000749

Unavailable

9

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Hex. Screw M8 X 45

207084560

$3.38

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Hex. Elastic Nut M8

232581600

$1.48

14

Hex. Screw M6 X 25

207162560

$1.47

15

Flat Washer M6, Stainless

234062600

$0.77

16

Upper Bridge, Black

291001602

Unavailable

17

Lower Bridge, Black

291001599

Unavailable

18

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

19

Elastic Stop Nut M6, Brass

232561200

$4.23

20

GASKET - Call your local BRP dealership

293200090

Unavailable

21

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

22

Hex. Screw M6 X 75

207167560

Unavailable

23

Flat Washer M6, Stainless

234062600

$0.77

24

Tie-Rap Mount

293750025

$1.25

25

Tie-Rap 180 mm

414115200

$0.11

26

GASKET - Call your local BRP dealership

293250171

Unavailable

27

GROMMET - Call your local BRP dealership

293720042

Unavailable

28

Pole Support Ass’Y | Includes 28 - 38. BLUE (B-544) GTX 4-TEC 6125/6126.

291001920

Unavailable

29

Seal

293250151

$10.99

30

Retractable Spring Pin

204070412

Unavailable

31

SOCKET SET SCREW M6 X 8 - Call your local BRP dealership | WAKE

206560860

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Support | WAKE

291001921

Unavailable

34

Ski Pole | WAKE

291001903

Unavailable

35

Grip | WAKE This part replaces M5340464.

506152483

$12.17

36

X-ring | WAKE

293300106

Unavailable

37

Upper Sleeve | WAKE

291001940

Unavailable

38

Lower Sleeve | WAKE

291001941

Unavailable

39

Socket Head Screw M8 X 40

205484060

$4.12

40

Stainless, Flat Washer 8 mm

234081600

$0.55

41

Flat Washer 8 mm, Stainless

234082600

$2.43

42

Hex. Elastic Nut M8

232581600

$1.48
