- GTX 4-TEC Wake, 2003
07- Steering System

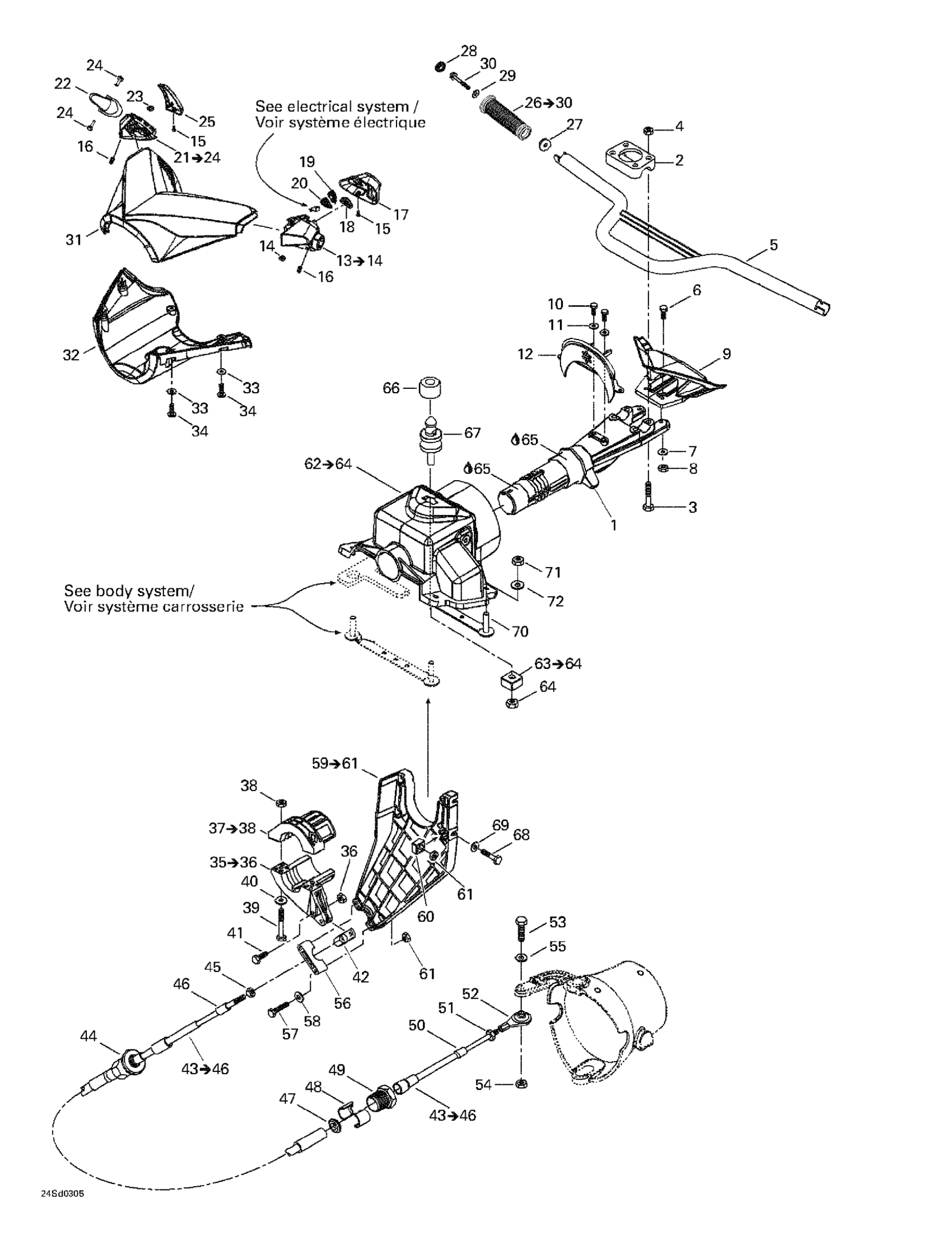

Sea-doo GTX 4-TEC Wake, 2003 07- Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
Handlebar
277001012
Unavailable
6
Hex. Screw M6 X 30
207063060
$1.89
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Handle Pad | AUTOMNE RED (B-549) GTX 4-TEC 6111/6112.
277001146
Unavailable
Handle Pad | BLUE (B-544) GTX 4-TEC 6125/6126.
277001199
Unavailable
10
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
11
Flat Washer M6, Stainless
234062600
$0.77
12
PLATE - Call your local BRP dealership
277000549
Unavailable
13
HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9
277001481
Unavailable
14
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
15
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
16
Socket Head Screw M6 X 16
250000036
$9.00
17
LH Cover Housing
277001025
Unavailable
18
Stop Knob
278001713
$18.49
19
MODE KNOB - Call your local BRP dealership
278001714
Unavailable
20
SET KNOB - Call your local BRP dealership
278001715
Unavailable
21
THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19
277001483
Unavailable
22
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
23
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
24
PIN - Call your local BRP dealership
277000381
Unavailable
25
THROTTLE HOUSING COVER - Call your local BRP dealership
277001023
Unavailable
26
HANDLE GRIP KIT, BLACK - Call your local BRP dealership
295500691
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Black, Cap
277000203
$9.39
29
Flat Washer M6, Stainless
234062600
$0.77
30
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
31
UPPER STEERING COVER, BLACK - Call your local BRP dealership
277000952
Unavailable
32
LOWER STEERING COVER, BLACK - Call your local BRP dealership
277001145
Unavailable
33
Flat Washer M5, Stainless
234051600
$0.77
34
Hex. Flange Screw K40 X 16
241141660
$1.48
35
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
36
Hex. Elastic Stop Nut M6
232561600
$1.15
37
Arm Thrust | Includes 43 to 44
277000519
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Hex. Screw M6 X 25
207162560
$1.47
40
Flat Washer M6, Stainless
234062600
$0.77
41
Hex. Screw M6 X 30
211000081
$3.59
42
Ball Joint
277001180
$35.99
43
Steering Cable Ass’Y | Includes 44 to 47
277000949
Unavailable
44
Ajustment Knob
277000782
$22.99
45
Hex. Nut 1/4"-28
211100056
$0.69
46
Terminal Wiper
277000441
$11.99
47
Rubber Washer
293830063
$1.90
48
Half Ring
277001527
$10.37
49
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
50
Terminal Wiper
277000441
$11.99
51
Hex. Nut 1/4"-28
211100056
$0.69
52
Ball Joint
277000775
$51.99
53
Hex. Screw M6 X 35
207063560
$2.22
54
Hex. Elastic Stop Nut M6
232561600
$1.15
55
Stainless Flat Washer M6
234061600
$0.33
56
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
57
Hex. Screw M6 X 50
207065060
$2.22
58
Stainless Flat Washer M6
234061600
$0.33
59
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
60
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
61
Hex. Elastic Stop Nut M6
232561600
$1.15
62
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
63
Nut Housing Ass’Y | Includes 64 to 65
271001115
Unavailable
64
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
65
Synthetic Grease, 400 G
293550010
Unavailable
66
RUBBER PAD - Call your local BRP dealership
293830078
Unavailable
67
Latch Stud
291001420
Unavailable
68
Hex. Forming Screw M6 X 20
207162060
$1.29
69
Stainless Flat Washer M6
234061600
$0.33
70
STEERING SUPPORT - Call your local BRP dealership
277001072
Unavailable
71
Hex. Elastic Nut M8
232581600
$1.48
72
Stainless, Flat Washer 8 mm
234081600
$0.55
