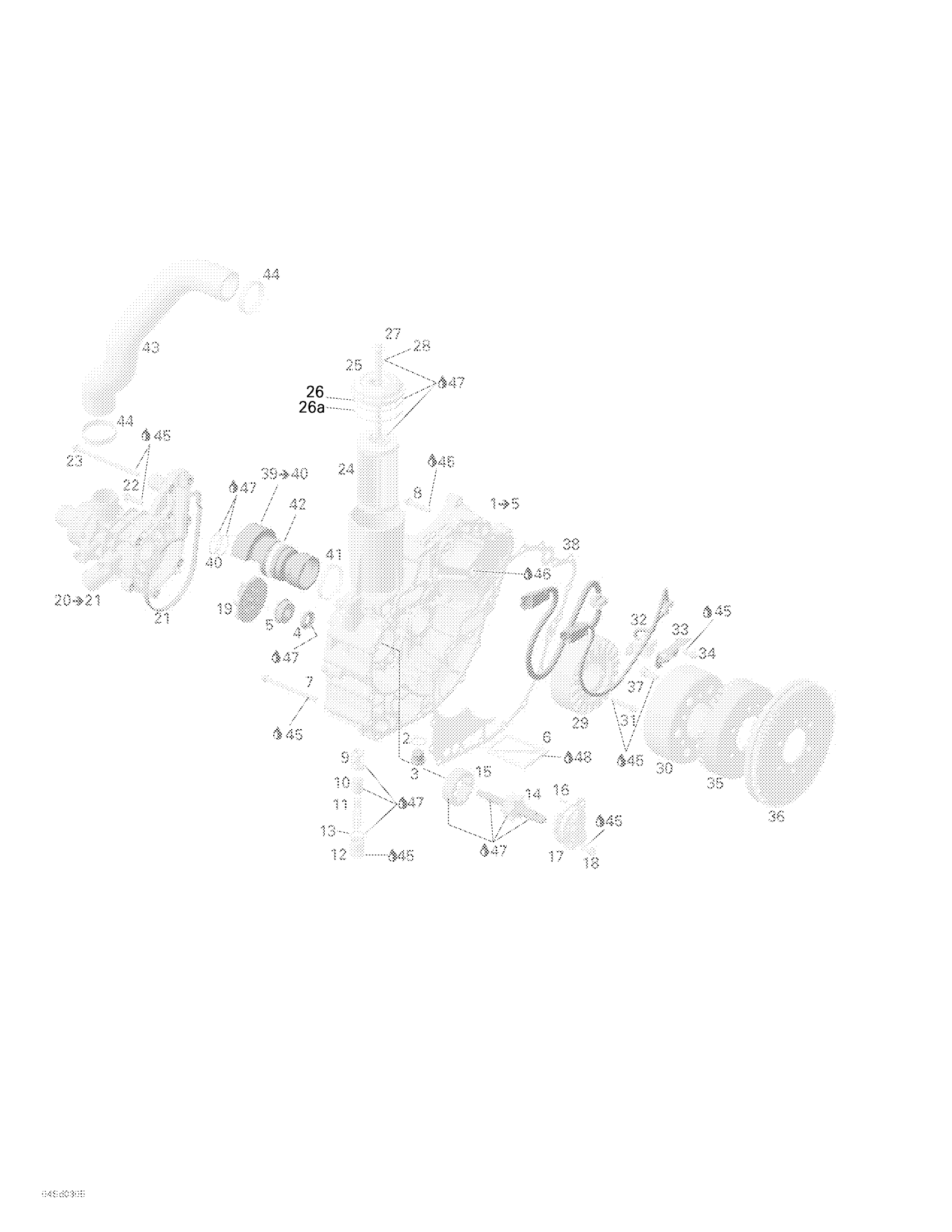

Sea-doo GTX 4-TEC Wake, 2003 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing / Drive Cover Ass’y | INCLUDES 1 TO 5

420811573

Unavailable

2

Gasket Ring

420430624

$1.89

3

Plug Screw M16

420240233

Unavailable

4

Oil Seal

420650315

$11.65

5

Rotary Seal

420650371

$43.49

6

Oil Sieve

420956950

$16.86

7

Torx Flange Screw M6 X 85

420641228

$7.41

8

Torx Flange Screw M6 X 35

420641258

$3.38

9

Valve Seat Sleeve

420256606

$29.49

10

Piston Valve

420256638

$22.99

11

Compression Spring

420939211

$8.99

12

Plug Screw M20 X 1.5

420641052

$37.99

13

O-Ring

420230890

$5.39

14

Pump Shaft Ass'y

420837472

$56.99

15

Oil Pump Rotor 16 mm

420956675

$36.99

16

Needle Pin

420929070

$1.90

17

Oil Pump Cover

420811591

$37.99

18

Torx Flange Screw M6 X 16

420641048

$2.96

19

Impeller

420922801

$17.53

20

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

21

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

22

Torx Flange Screw M6 X 25

420641238

$3.27

23

Torx Flange Screw M6 X 105

420641338

$7.41

24

Oil Filter

420956741

$13.77

25

Oil Filter Cover

420610329

$33.99

26a

O-Ring

420230923

$3.17

26

O-Ring

420850500

$3.17

27

Oil Filter Screw Kit

295501207

$39.99

28

O-Ring

420950860

$3.91

29

STATOR ASS'Y - Call your local BRP dealership

420889720

Unavailable

30

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership

420889710

Unavailable

31

Torx Flange Screw M6 X 35

420641258

$3.38

32

CRANKSHAFT SENSOR - Call your local BRP dealership

420664140

Unavailable

33

Retaining Plate

420926300

$16.37

34

Torx Flange Screw M6 X 16

420641048

$2.96

35

Trigger Wheel

420966851

$18.49

36

Starter Gear, 86 Teeth

420835163

$309.99

37

Hex Screw

295501162

$15.28

38

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

39

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

40

O-Ring

420631612

$4.33

41

Gear Clamp

420851653

$7.41

42

Gear Clamp 46.8-50.0MM

420853023

$7.41

43

Formed Hose

420922822

$66.49

44

Oetiker Clamp

420851687

$11.65

45

Loctite 243, 10 ml

293800060

$21.49

46

Dow Corning 111, 150 g

413707000

$59.99

47

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

48

Loctite 5910, 300 ml

293800081

$57.99
