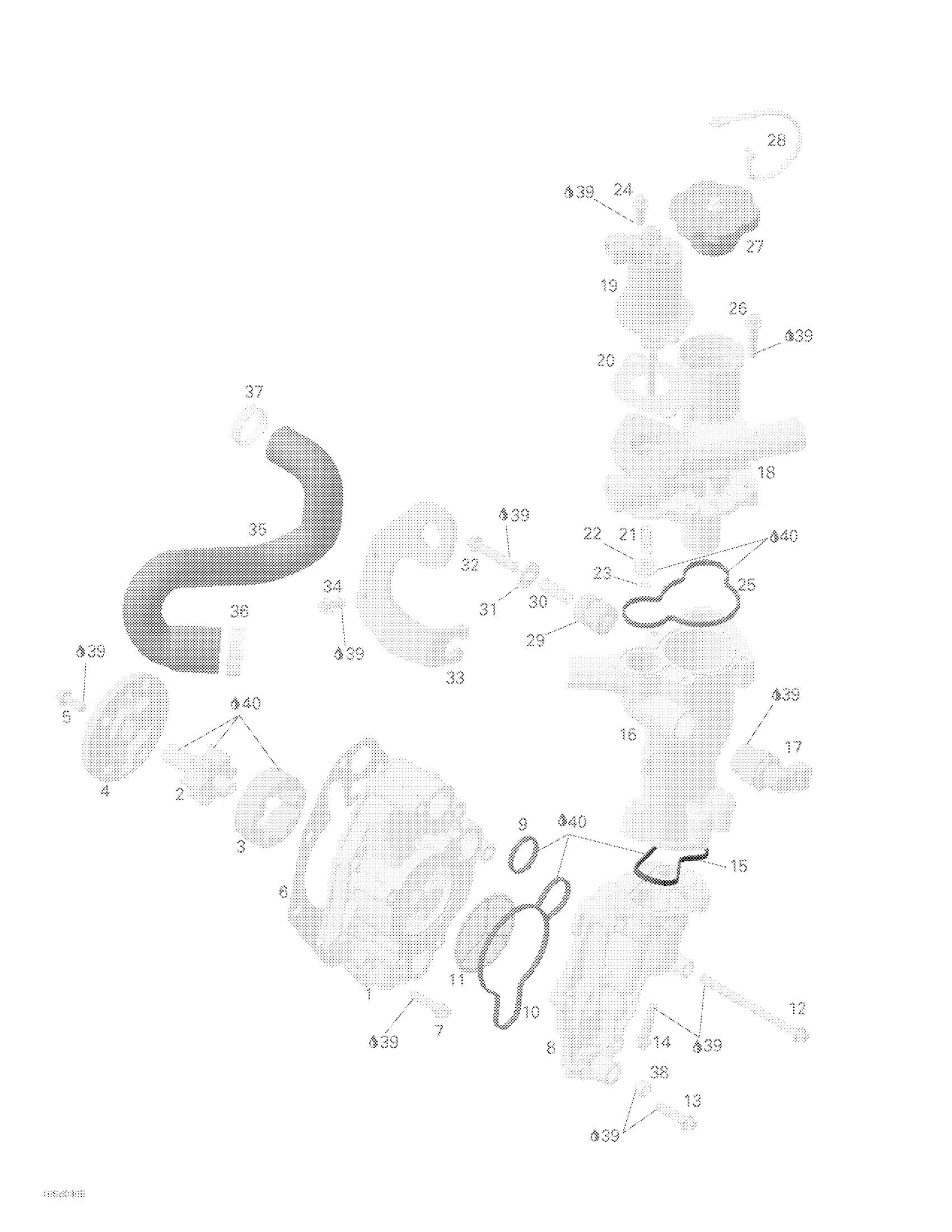

Sea-doo GTX 4-TEC Wake, 2003 01- Oil Separator Diagram

#

Description
Price

1

OIL PUMP HOUSING - Call your local BRP dealership

420811840

Unavailable

2

PUMP SHAFT ASS'Y - Call your local BRP dealership

420837542

Unavailable

3

Oil Pump Rotor 16 mm

420956675

$36.99

4

Oil Pump Cover

420811851

$33.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Gasket

420950970

$12.64

7

Torx Flange Screw M6 X 25

420641238

$3.27

8

OIL SIEVE COVER - Call your local BRP dealership

420811891

Unavailable

9

SEAL RING - Call your local BRP dealership

420630240

Unavailable

10

GASKET - Call your local BRP dealership

420950850

Unavailable

11

OIL SIEVE - Call your local BRP dealership

420256570

Unavailable

12

Torx Flange Screw M6 X 85

420641228

$7.41

13

Torx Flange Screw M6 X 25

420641238

$3.27

14

Torx Flange Screw M6 X 25

420641238

$3.27

15

GASKET - Call your local BRP dealership

420630231

Unavailable

16

OIL SEPARATOR HOUSING - Call your local BRP dealership

420956761

Unavailable

17

Interr.Pression*Oil Tk Pres Sw This part replaces 420256885.

420256886

$51.99

18

OIL SEPARATOR COVER - Call your local BRP dealership

420811962

Unavailable

19

SOLENOID SHUT-OFF - Call your local BRP dealership

420956661

$329.99

20

Gasket

420630540

Unavailable

21

COMPRESSION SPRING - Call your local BRP dealership

420939250

Unavailable

22

VALVE DISC - Call your local BRP dealership

420856055

Unavailable

23

RETAINING RING - Call your local BRP dealership

420845620

Unavailable

24

Torx Flange Screw M6 X 16

420641048

$2.96

25

GASKET - Call your local BRP dealership

420630220

Unavailable

26

Torx Flange Screw M6 X 25

420641238

$3.27

27

Plug Cover, Yellow

420956923

$23.49

28

Retaining Band

420660620

$7.41

29

Rubber Bracket

420660090

$4.12

30

SPACER - Call your local BRP dealership

420847970

Unavailable

31

Flat Washer M6

420827968

$1.90

32

Torx Flange Screw M6 X 35

420641258

$3.38

33

FRONT TRANSPORT BRACKET - Call your local BRP dealership

420851610

Unavailable

34

Torx Flange Screw M6 X 16

420641048

$2.96

35

Formed Hose

420956970

Unavailable

36

Gear Clamp

420851673

$5.71

37

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

38

Plug Screw M10 X 1

420641323

$14.28

39

Loctite 243, 10 ml

293800060

$21.49

40

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
