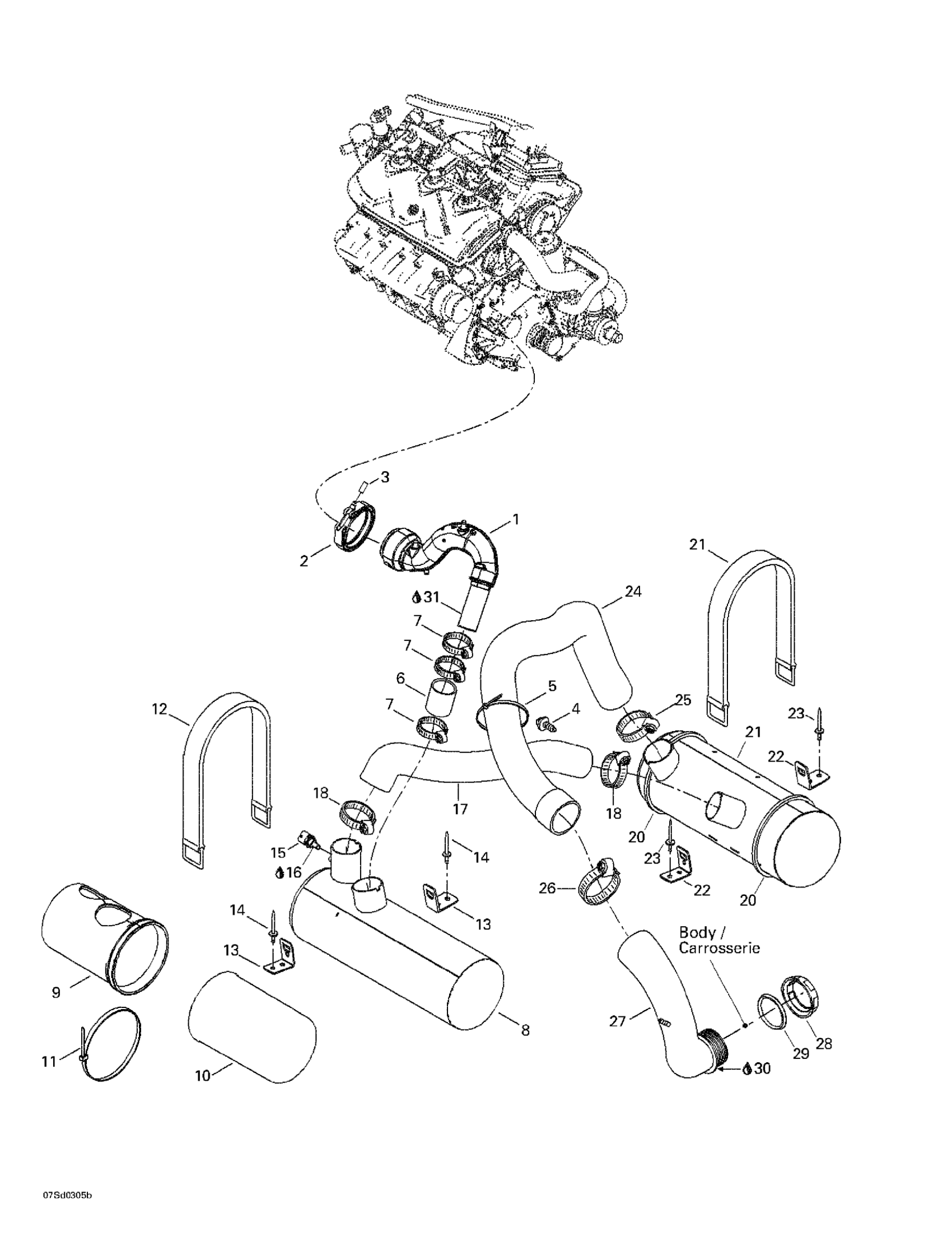

Sea-doo GTX 4-TEC Wake, 2003 Muffler Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Mount Dart

293730040

$1.04

5

Tie Wrap 368 mm

293750008

$1.04

6

Exhaust Hose

274001302

$35.99

7

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

8

Muffler

274001057

Unavailable

9

Front Muffler Cover

274001008

Unavailable

10

Rear Muffler Cover

274001027

Unavailable

11

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

12

Retainer Strap

293850097

$11.64

13

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

14

Avdel Rivet 3/16"

293150037

$0.56

15

Temperature Sensor

278002895

$39.99

16

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

17

FRONT HOSE - Call your local BRP dealership

274001036

Unavailable

18

Tridon Clamp

293650179

$11.49

19

Secondary Muffler

274001059

Unavailable

20

Rubber Strip

293830034

Unavailable

21

Retainer Strap

293850097

$11.64

22

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

23

Avdel Rivet 3/16"

293150037

$0.56

24

Rear Hose

274001037

Unavailable

25

Tridon Clamp

293650179

$11.49

26

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

27

Exhaust Outlet

274000901

Unavailable

28

Nut 72 mm

274000224

$16.34

29

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
